Symmetricom 87-8009-10 10MHz Low Phase Noise Output Module

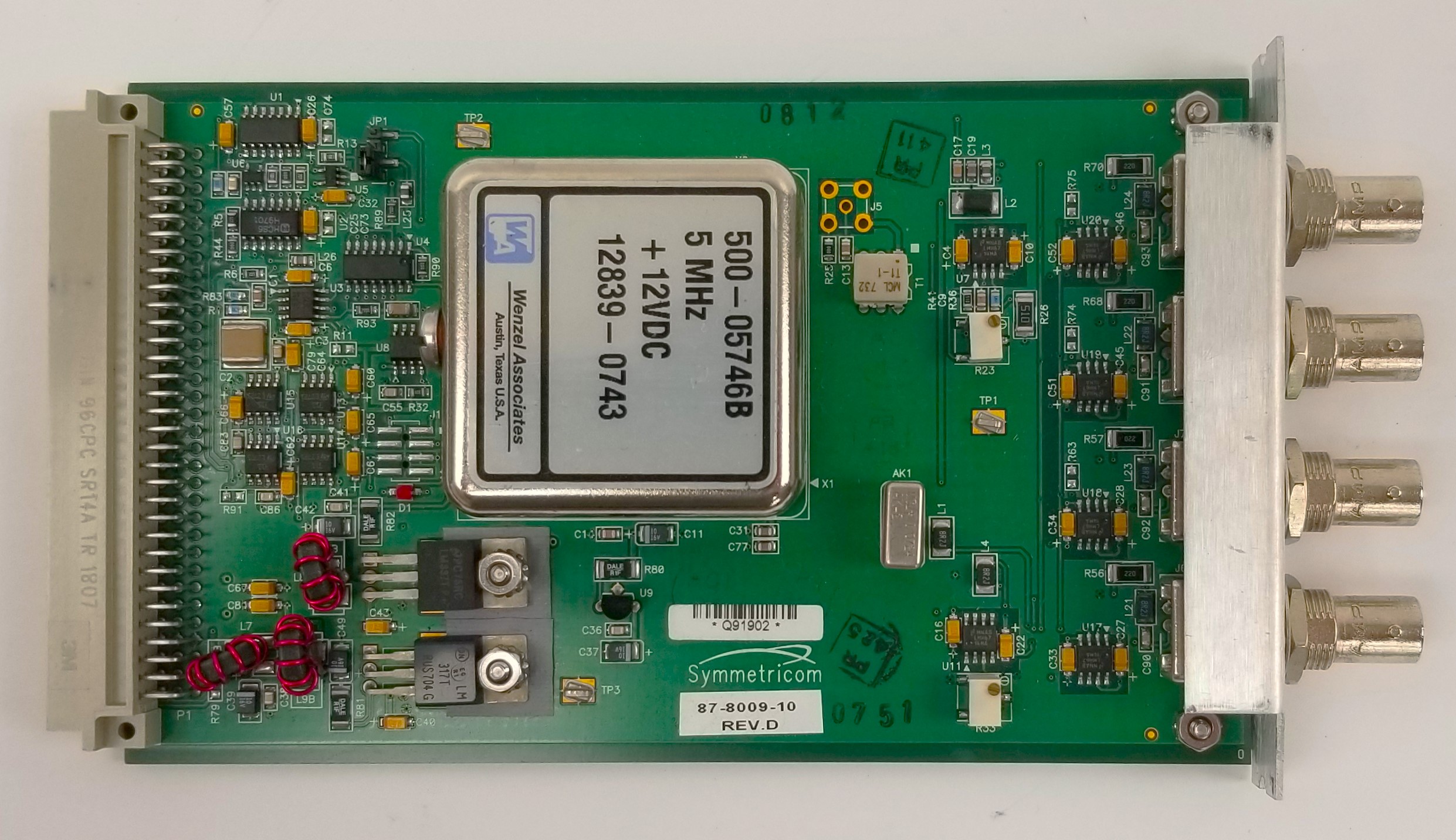

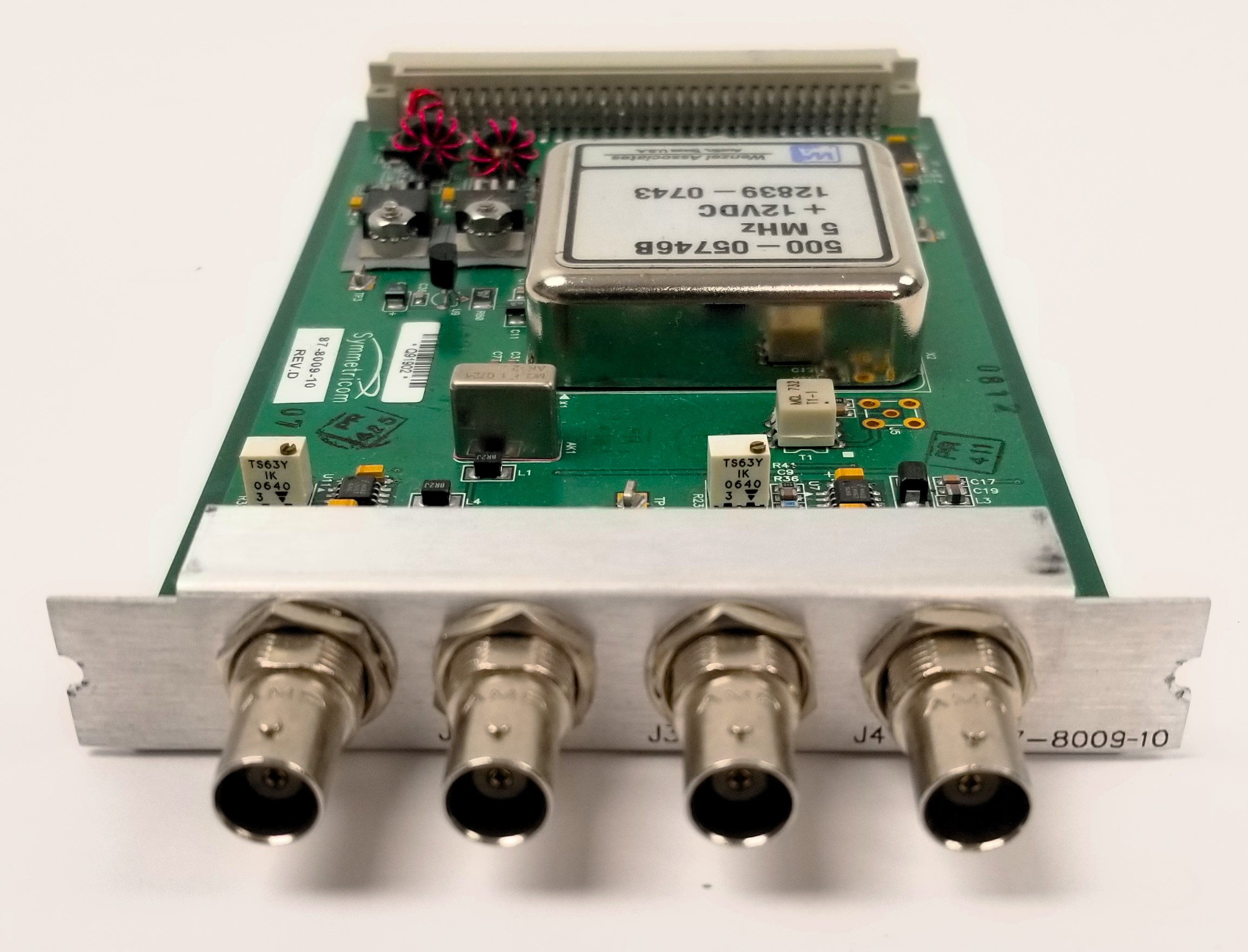

Symmetricom 87-8009-10 10MHz Low Phase Noise Output Module. Carefully removed from operational decommissioned military system. No manual or other accessories. Purchaser responsible for system compatibility, any updates, and proper installation. As shown.

Brief Description:

Provides four isolated, 50 ohm 10MHz frequency output signals with exceptional spectral purity. Isolation from the receiver’s internal digital signal noise and power supply noise enables high-performance phase noise and spurious noise characteristics as the on-module low noise oscillator source.

SPECIFICATIONS: LOW PHASE NOISE 10 MHz OUTPUTS (87-8009-10)

• Provides four 10 MHz frequency output signals
• Signal type: Analog sine wave
• Synchronization: Phase locked to the clock 10 MHz
• Accuracy: Function of input synchronization source (GPS, IRIG, 1PPS, Have Quick)
• Amplitude: +13dBm (±1dBm)
• Output impedance: 50O
• Quantity: 4
• Connector: BNC female
• Option Slots: 1
• Harmonic distortion: –30dBc (2nd harmonic)
• Spurious: –90dBc (10 Hz – 10 kHz SSB)
• Isolation: –70dBc
• Phase noise
  –85 dBc/Hz @ 1 Hz offset
  –115 dBc/Hz @ 10 Hz offset
  –140 dBc/Hz @ 100 Hz offset
  –145 dBc/Hz @ 1 kHz offset
  –150 dBc/Hz @ 10 kHz offset
