Forsberg Services, Ltd., /Raven Industries ASST0020006 DUC-1 UP OPTIC Down Converter
Original price was: $250.00.$175.00Current price is: $175.00.
3 in stock

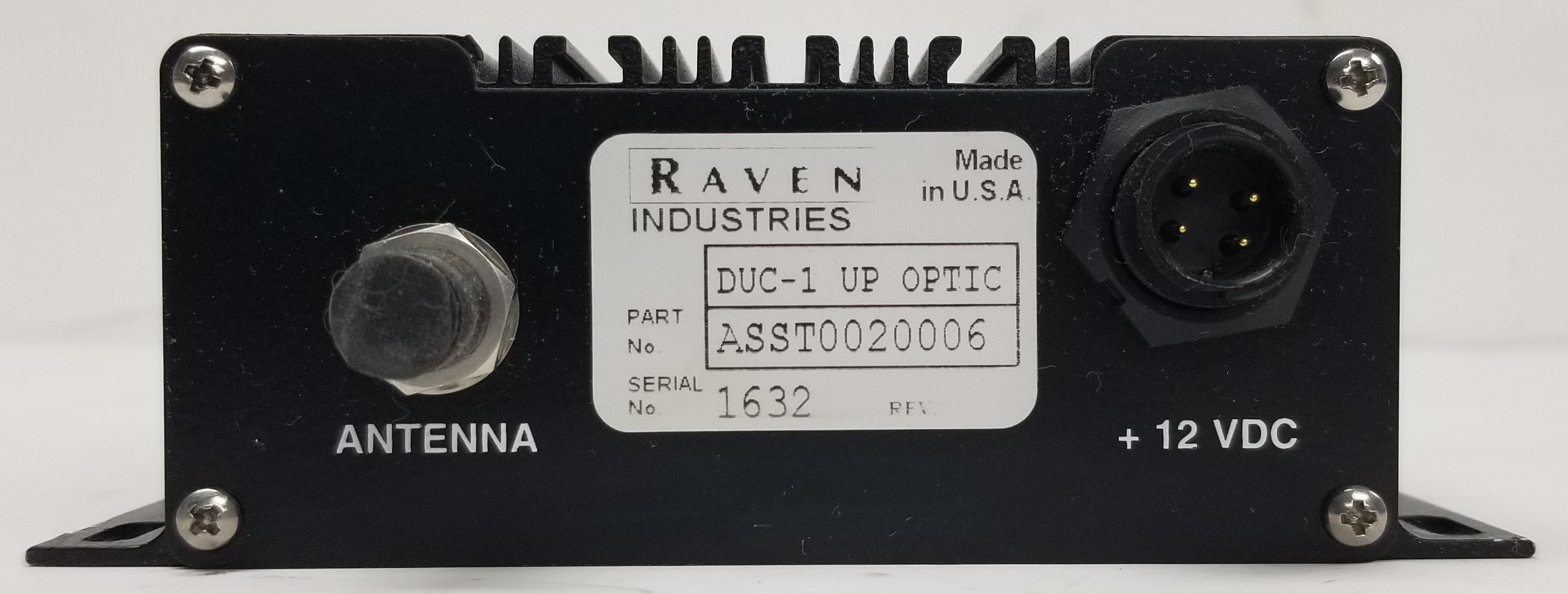

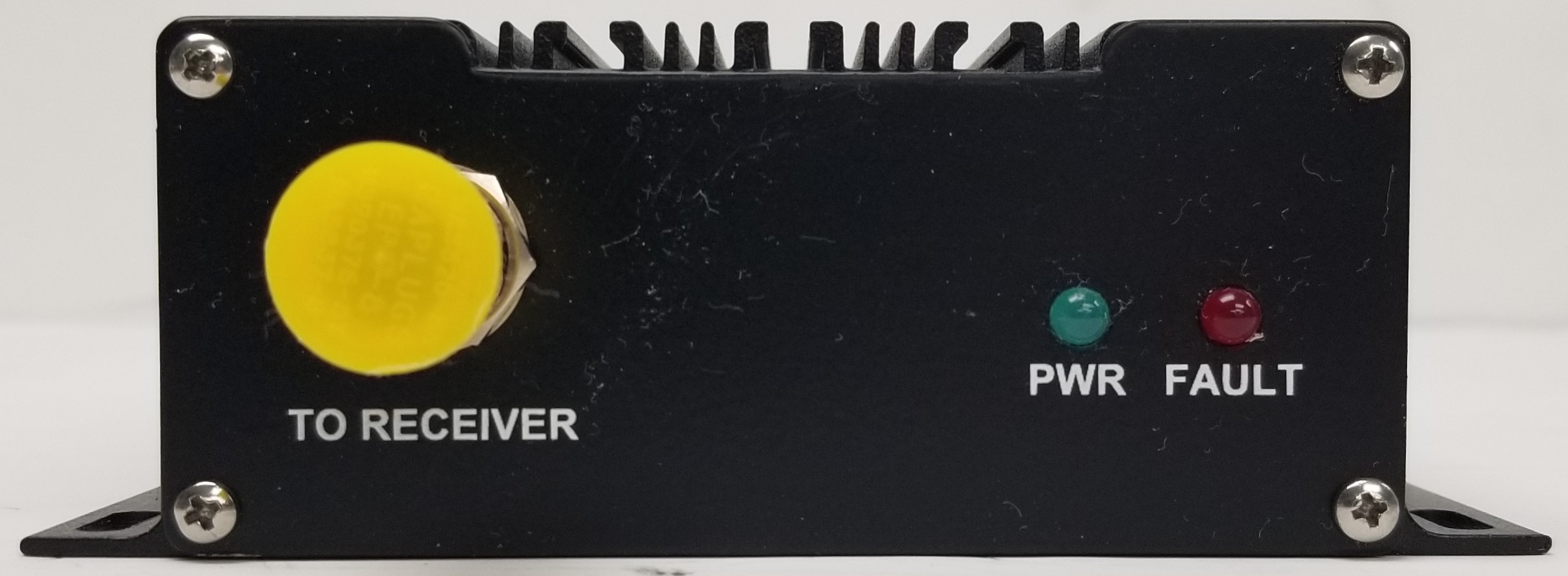

CompareForsberg Services, Ltd., /Raven Industries ASST0020006 DUC-1 UP OPTIC Down Converter. Down converts GPS Optical RF to Conventional GPS Signal. Unit(s) carefully removed from operational system. No manual, power supply, cables or other accessories. As shown.
The DUC converters are the perfect add-on for L1 GPS installations where long antenna cables are needed, and a simple in-line amplifier will not suffice. GPS Down / Up converter makes it possible for long cable runs up to 450 m.
System Specifications:
- GPS Frequency: L1 (1575.42 MHz)
- Cable Distance to Antenna: 457.2m (1500 ft)
- Cable Distance to Receiver: 30m (100 ft)
- Coax Cable Type: 50 Ohm
The patented technology phase locks the converter pair to provide high fidelity signal transport. This technique uses the same reference for up and own conversion, eliminating frequency error. The DUC product is optimized for generic RG-58 cable and can be used for lengths of up to 450 meters.
Forsberg Services, Ltd., acquired Raven’s StarLink RF DGPS product line in April 2015. This is a legacy product and no longer supported by the manufacturer.
No manual, power supply, cables or other accessories. As shown.
| Weight | 4 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
