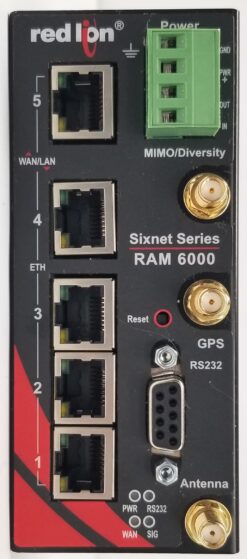

Red Lion Sixnet Series RAM 6000 Cellular RTU

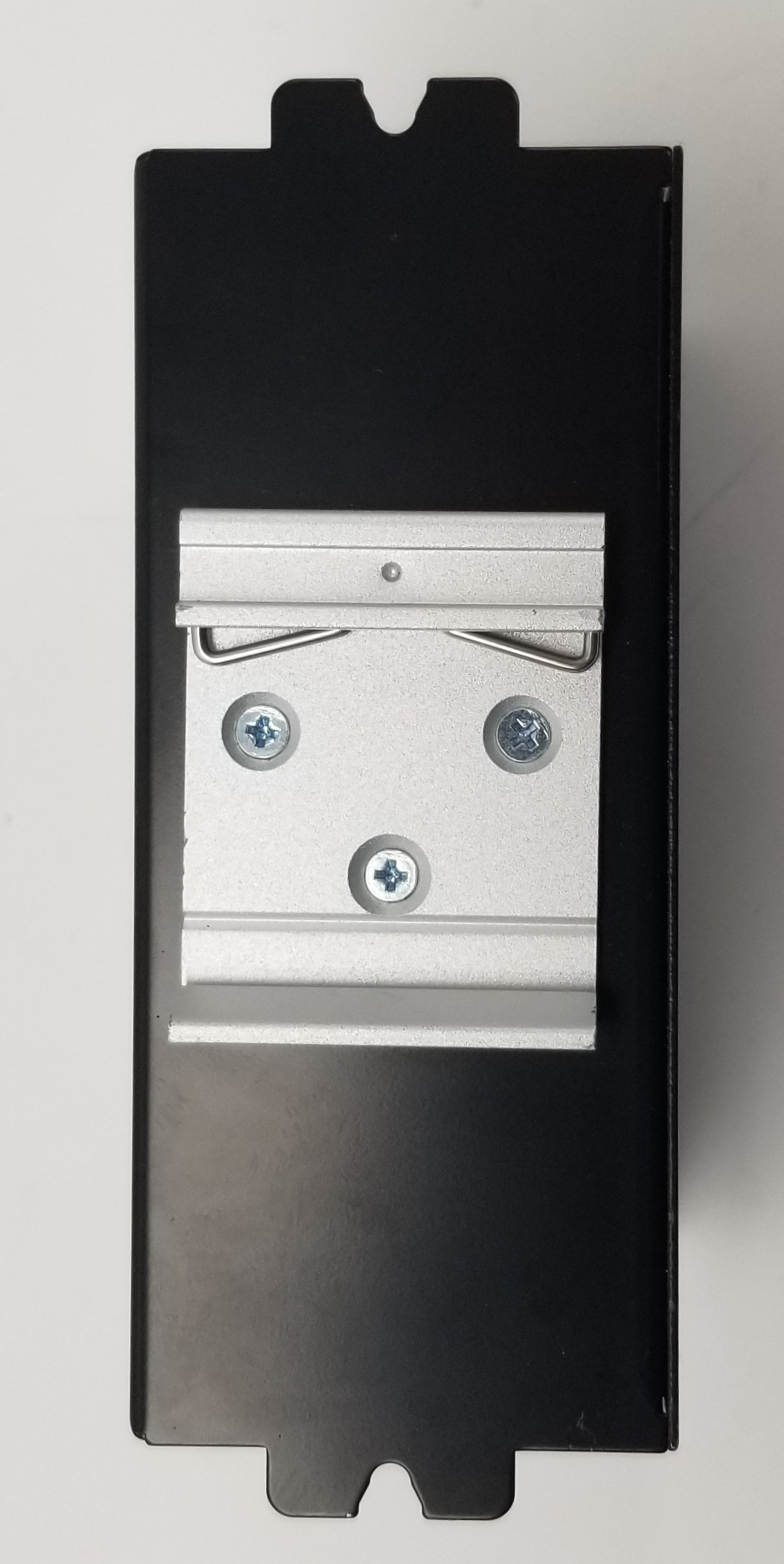

Red Lion Sixnet Series RAM 6000 Cellular RTU. Standard DIN Rail mount. No power supply, manual, cables, antennas or other accessories. A quick, easy and economical way to replace or add a node to existing system infrastructure.  Purchaser responsible for carrier setup, proper installation, and legal use. THIS ITEM IS EXPORT RESTRICTED. ONLY ORDERS FROM A VERIFIED ADDRESS IN CANADA, MEXICO AND THE UNITED STATES WILL BE PROCESSED.

From Red Lion Controls:

Red Lion’s Sixnet series RAM 6000 cellular RTUs with multi-carrier 4G LTE support, provide advanced control and communication in IIoT applications for remote assets and processes in extreme conditions.

RAM 6000 industrial cellular RTUs seamlessly connect Modbus and DNP3 enabled SCADA equipment via software selectable multi-carrier 4G LTE to remote networks or select Industrial Internet of Things (IIoT) Cloud platforms. Featuring a web-based event engine that can trigger I/O or send SMS text messages based on real-time operational data, RAM cellular RTUs can perform advanced local edge control and alert personnel of critical events. A built-in I/O concentrator allows the RAM to collect sensor data and optimize cellular data consumption by optionally reporting only on an exception or only transmitting relevant data points. With built-in Ethernet, serial, I/O and GPS, RAM RTUs easily integrate with existing equipment enabling remote monitoring and control for M2M applications in industries including oil and gas, water/wastewater, utility, transportation and mining.

APPLICATIONS
> Mining
> Oil & Gas
> Transportation
> Utility
> Water/Wastewater

PRODUCT HIGHLIGHTS
> Multi-Carrier 4G LTE Connectivity
> Natively Supports Modbus & DNP3 Protocols
> Cloud Connectivity to IIoT Cloud Platforms
> Routing Capabilities Provide Secure,
Reliable Communication
> Active GPS Receiver Tracks Device Location
> Event Engine can Trigger I/O or Send SMS Messages
> Optional PoE (Powered Device) Support

FEATURES & BENEFITS
> Multi-Carrier 4G LTE Connectivity
• Select the best carrier during or post deployment
via software configuration
> Multiple Communication Ports
• One RS-232 serial port, and up to five Ethernet ports
provide seamless connectivity to remote devices
> Rugged, Industrial Design
• Reliable operation in extreme environments
• -40° to 70°C operating temperature**
> Modbus and DNP3 Support
• Easily communicates with SCADA equipment with
native protocols
> Cloud Connectivity to IIoT Cloud Platforms
• Allows for seamless communication with leading
IIoT cloud platforms using MQTT messaging protocol
> Out-Of Band Management (OOBM)
• Secure remote CLI access via serial port
• Pre-loaded with many console port configurations
> Secure Ethernet Connectivity
• Routing capabilities for reliable communication
• Stateful firewall, SSL, GRE and VPN services reduce
the risk of unwanted access
> Advanced Event Engine Functionality
• Easily configure control engine via drop-down menus
• Trigger I/O, alarms and send SMS messages based
on operational data

RAM 6000 LTE Multi-Carrier Specifications:

WIRELESS INTERFACE
AT&T LTE with fallback to HSPA+
Generic LTE with fallback to HSPA+
Verizon LTE with fallback to EVDO
SELECTABLE IIOT CLOUD PLATFORMS*
Amazon® – AWS™ IoT
AT&T® – M2X
Autodesk® – Fusion Connect
Cumulocity
Inductive Automation’s Ignition SCADA
LEC – IQ Web SCADA
Microsoft – Azure®
Nokia – IMPACT
Set-Point Control – IPwebcontrol
Skkynet® – SkkyHub™
Telenor – Connexion Cloud Connect
Telit® – deviceWISE®
PROGRAMMABLE PLATFORM
Configurable Events: up to 99 events can be triggered by I/O,
Modbus registers, or over 200 system variable which in turn
can send text messages or control I/O
Software Development Kit (SDK)
C/C++/Perl
SYSTEM PERFORMANCE
32-bit ARM9 400 MHz CPU
512 MB NAND
128 MB RAM
TUNNELING
IPsec, GRE, OpenVPN
Routing Protocols
OSPF, BGP, RIP
Clustering
VRRP
IP
NAT, Port Forwarding, Dynamic DNS, DHCP
Stateful Inspection Firewall, IP Transparency
GPS
GNSS supported: GPS L1, GLONASS L1, Galileo E1 high RF
sensitivity plus jamming detection/removal
Connectors
Ethernet: One (1) or five (5) 10/100Base-T RJ-45 ports
WAN capability on port 5
Serial: One (1) RS-232 (DB9) 115,200bps
USB: One (1) USB 2.0 (mini)
Antennas: Three (3) SMA connectors (antenna, diversity, GPS)
INPUTS & OUTPUTS
Input: One (1) digital/analog
Output: One (1) digital (open-collector)
POWER INPUT
Input Voltage: 8-30 VDC (12 or 24 VDC nominal)
Standby Power: 1.4W – 4.0W (typical)
Transmitting:
690x: 2.6W – 6.9W
6921: 4.3W – 8.7W
PoE Operation (EB models only)
IEEE 802.3af compliant
Powered Device (PD)
PoE Input: 37-57 VDC (48 VDC nominal)
Heat dissipation: 30 BTU/hour max
MECHANICAL
RAM-690x
Dimensions: 120 x 96 x 32 mm (4.7” x 3.77” x 1.25”)
Weight: 453g (1 lb)

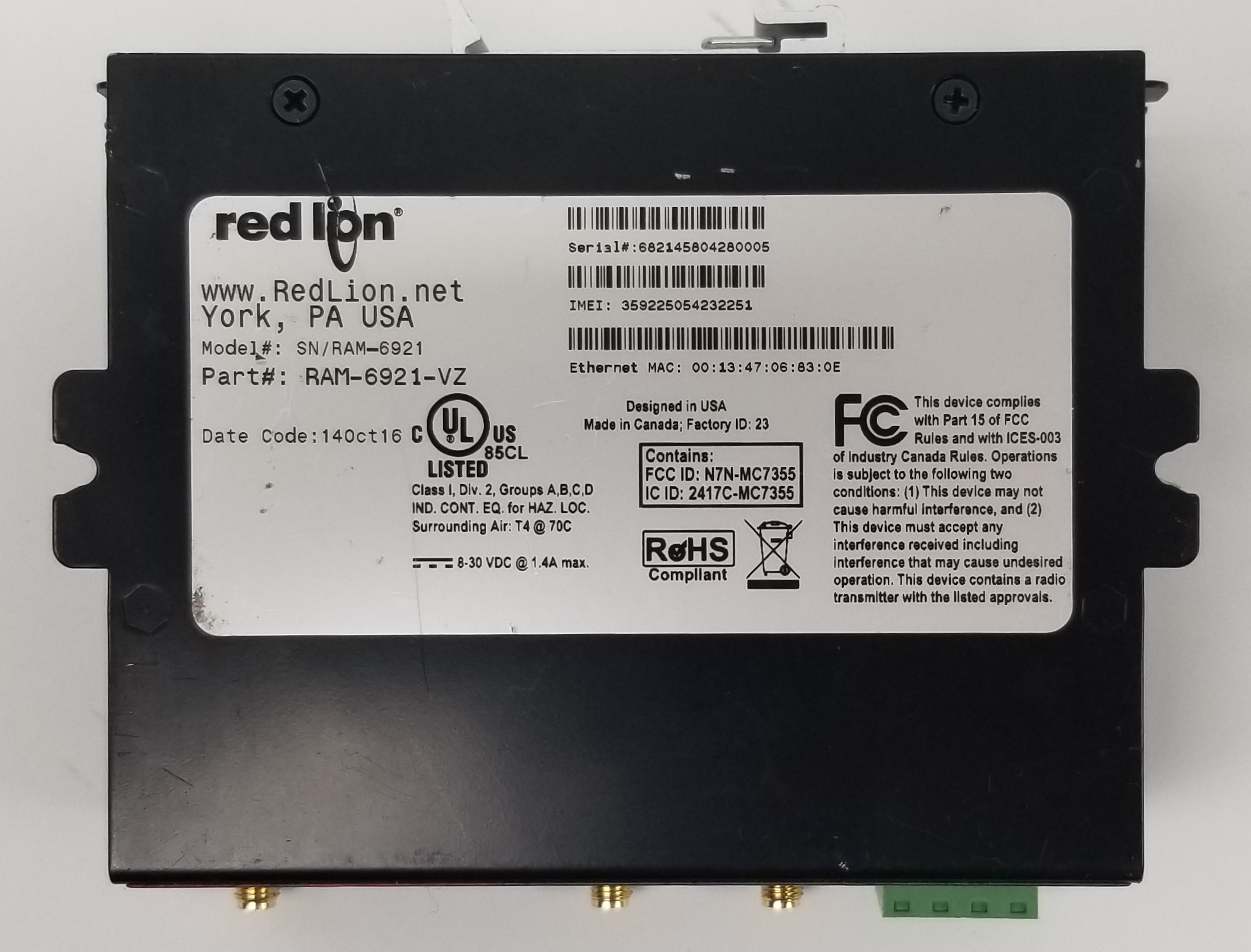

RAM-6921
Dimensions:120 x 96 x 51 mm (4.7” x 3.77” x 2.0”)
Weight: 500g (1.1 lbs)
ENVIRONMENTAL
Operating Temperature: -40° to +70°C**
Shock: IEC60068-2-27
Vibration: IEC60068-2-6
Humidity: 5 to 95% non-condensing
Ingress: IP30 protection
CERTIFICATION
EMI/EMC:
Emissions: FCC, Part 15 and Industry Canada, ICES-003; Class A;
EN55022, IEC61000-6-4
Immunity: IEC61000-6-2 (EN61000-4-2,3,4,5,6,8)
Hazardous Locations: Class I, Div. 2, Groups A, B, C, D, ISA 12.12.01
Electrical safety: UL508/CSA22.2/14 (CUL); IEC61010-1
Carrier Specific Approvals
RoHS compliant

THIS ITEM IS EXPORT RESTRICTED. ONLY ORDERS FROM A VERIFIED ADDRESS IN CANADA, MEXICO AND THE UNITED STATES WILL BE PROCESSED.
