Personal Measurement Device PMD-1208FS

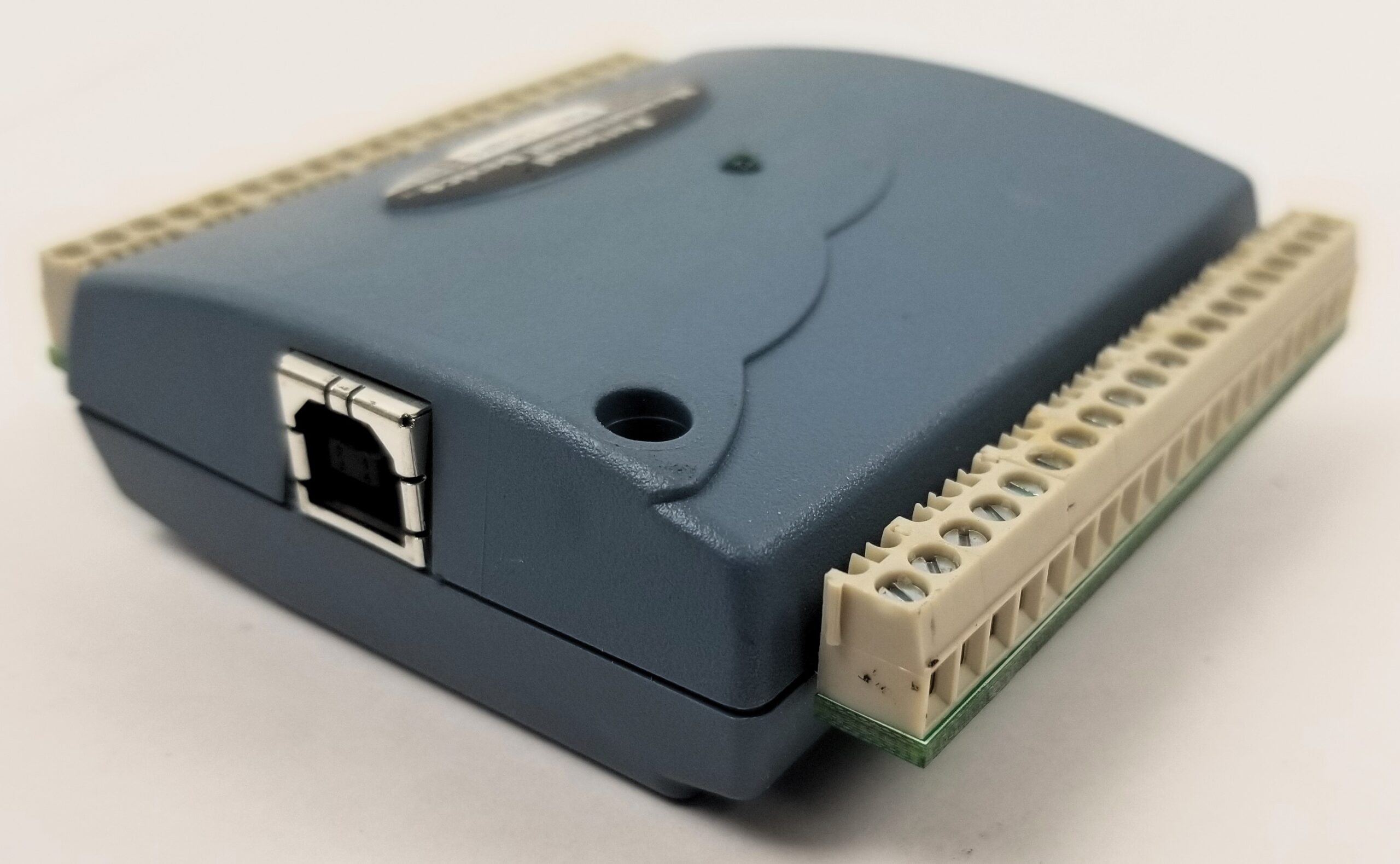

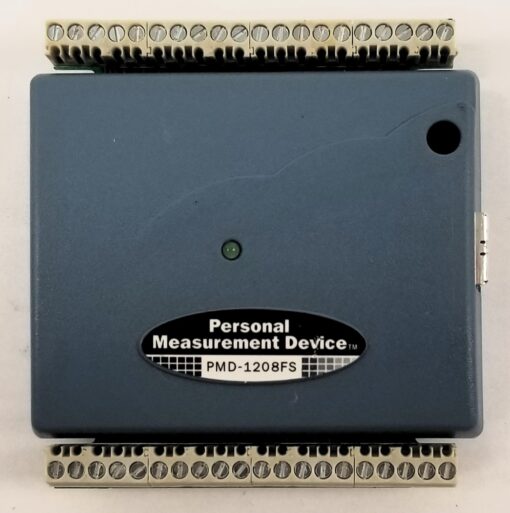

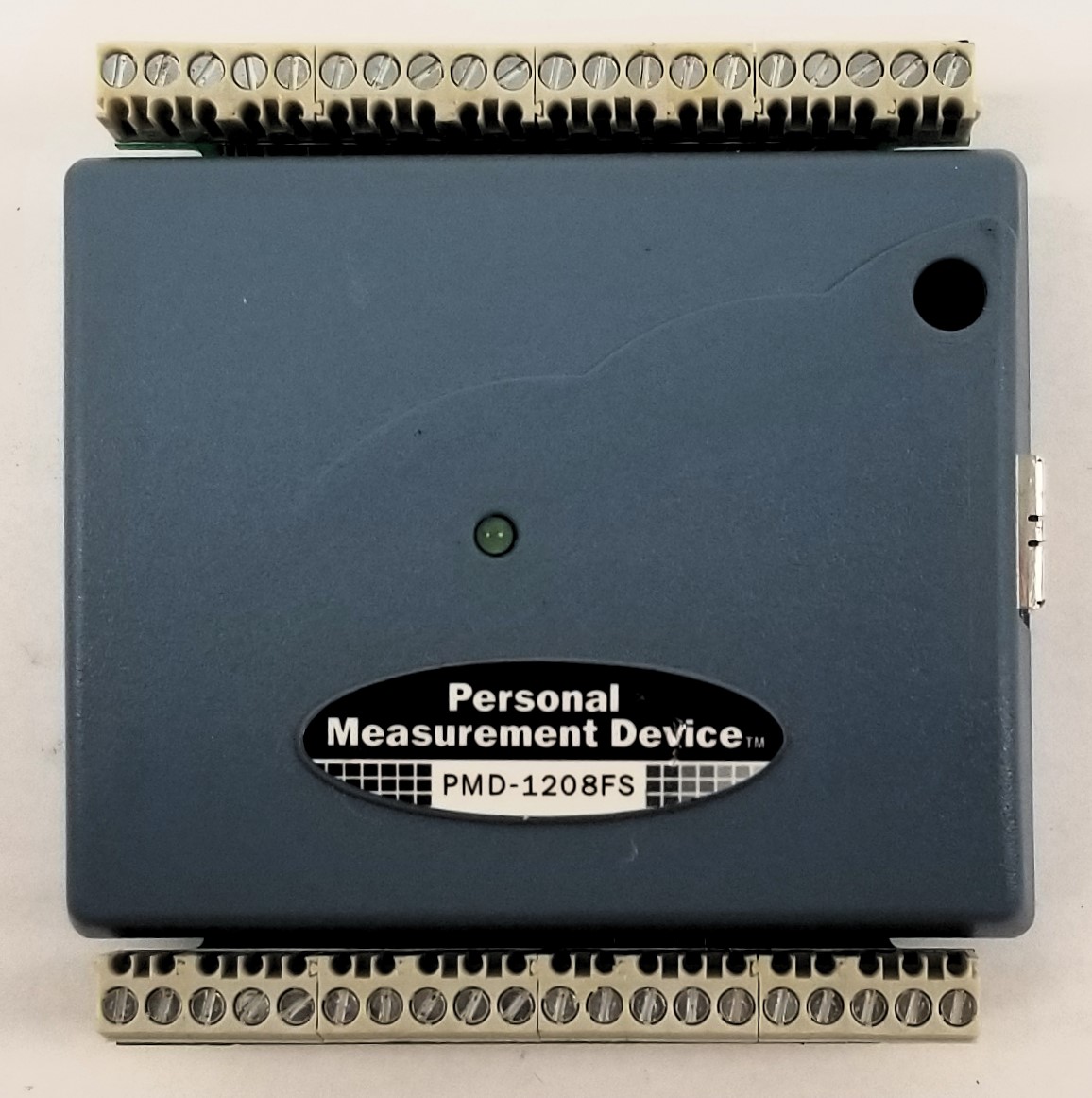

Personal Measurement Device PMD-1208FS. Like new condition. No manual, software (if applicable) or other accessories. As shown.

PMD-1208FS-Plus/LS/1408FS-Plus series consists of low-cost analog and digital I/O devices. All devices in this series offer four differential (DIFF) or eight single-ended (SE) analog inputs, two analog outputs, 16 digital I/O, and one event counter. The USB-1208LS offers sample rates of up to 1.2 kS/s, while all USB-1208FS-Plus and USB-1408FS-Plus devices offer sample rates of up to 50 kS/s. All devices in this series also support multiple software-selectable voltage input ranges, making them ideally suited for a wide assortment of measurements. These devices are USB-powered and require no external power. The PMD-1208LS and USB-1208FS-Plus provide eight 11-bit SE analog inputs or four 12-bit DIFF analog inputs. The USB-1408FS-Plus provides eight 13-bit SE analog inputs or four 14-bit DIFF analog inputs. All devices support software-selectable ranges that provide inputs from ±1 V to ±20 V in a DIFF configuration and ±10 V in a SE configuration. The USB-1208LS offers two 10-bit analog outputs with a range of 0 V to 5 V. The USB-1208FS-Plus and USB-1408FS-Plus offer two 12-bit analog outputs with a range of 0 V to 5 V. All devices provide 16 TTL-level digital I/O lines. Digital I/O can be programmed on each 8-bit port (Port A and Port B) for either input (default) or output. Each device supports one 32-bit TTL-level counter that accepts inputs up to 1 MHz.
