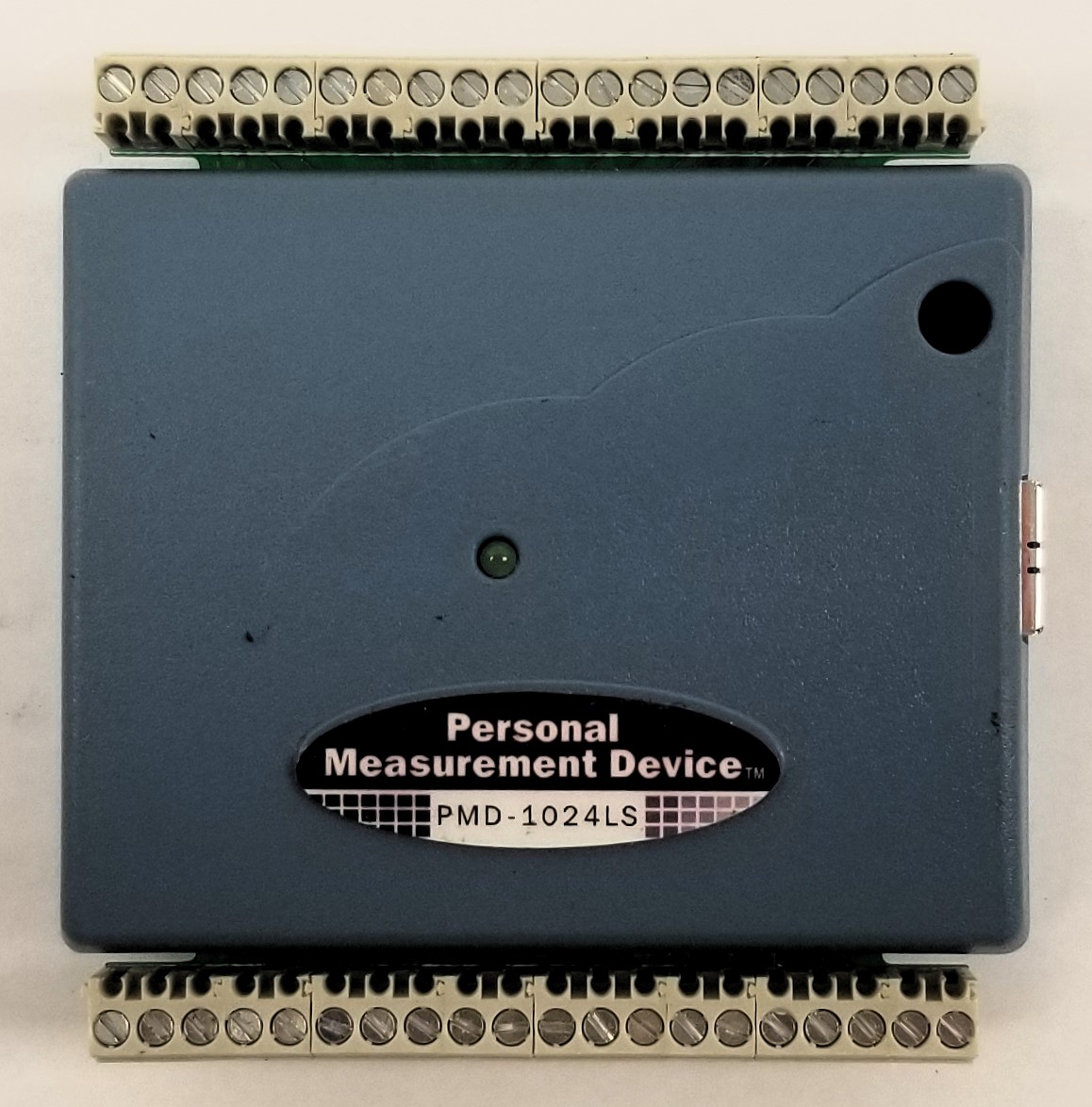

Personal Measurement Device PMD-1024LS. Like new condition. No manual, software (if applicable) or other accessories. As shown.
PMD-1024LS is a 24-channel digital I/O device with 5.5 V input voltage and one 32-bit event counter. The PMD-1024LS provides 24 DIO channels configured as either two banks of eight ports and two banks of four ports or three banks of eight ports. Each port is independently configurable for input or output. The device is designed to emulate 82C55 mode 0. The PMD-1024LS provides a 32-bit event counter to count TTL pulses. The counter accepts inputs up to 1 MHz. This device is USB-powered and requires no external power.
- 24 channels
- 64 mA sink input/24 mA source output
- One 32-bit counter input
- No external power required
Applications
- Digital I/O and control
| Weight | 2 lbs |
|---|---|
| Dimensions | 9 × 6 × 3 in |
