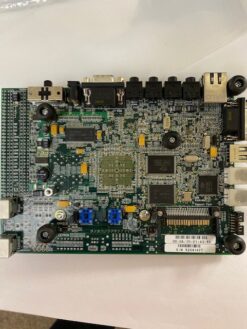

Xilinx Virtex-4 ML401 Evaluation Board

The Xilinx Virtex-4 ML4001 Evaluation Board is a powerful and versatile FPGA development platform designed for high-speed serial connectivity and advanced logic design. Engineered to support the Virtex-4 FX FPGA family, the ML4001 is ideal for evaluating multi-gigabit transceiver (MGT) performance, rapid prototyping, and high-end system development.

Key Features:

• FPGA: Supports Xilinx Virtex-4 FX FPGA with integrated PowerPC cores and multi-gigabit transceivers.

• High-Speed Connectivity: Includes multiple RocketIO MGT ports for testing up to 6.25 Gbps signaling.

• Memory Options: Features DDR SDRAM, Flash memory, and SRAM for robust data handling and storage.

• Expansion Interfaces: Offers standard connectors and expansion headers for custom peripheral integration.

• JTAG Programming Interface: Supports Xilinx iMPACT and other JTAG tools for seamless FPGA configuration and debugging.

• Onboard Clocking: Integrated programmable clock sources to support various transceiver reference frequencies.

Applications:

• High-speed data communication system development

• Signal processing and embedded systems prototyping

• ASIC and SoC design emulation

• Research and education in digital design and FPGA programming

• **All boards sold as is.  We are unable to test.
