Kurt J. Lesker T-1000 UHV tee
Original price was: $2,000.00.$1,500.00Current price is: $1,500.00.
1 in stock
CompareProduct Description

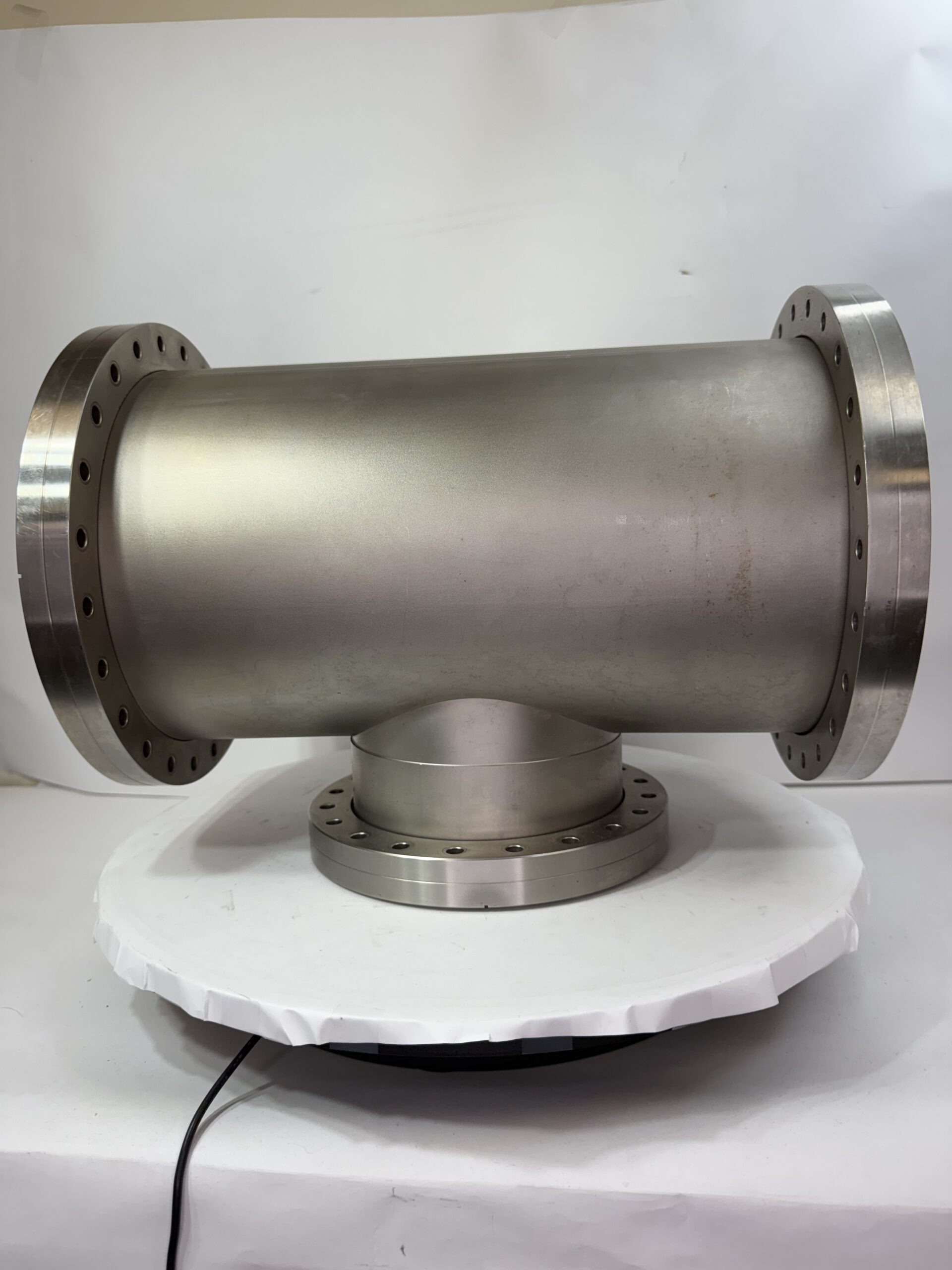

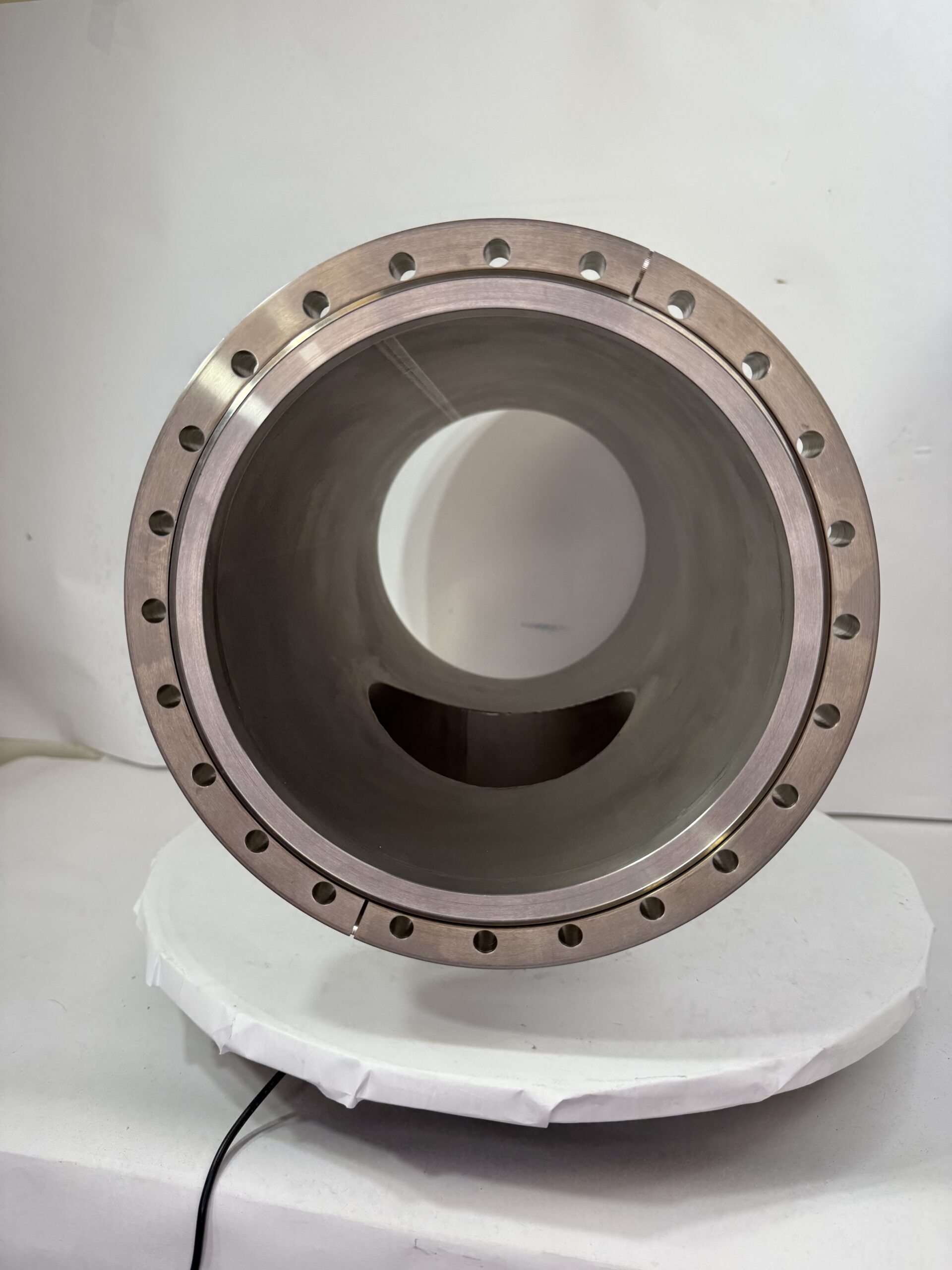

Kurt J. Lesker Company T-1000 UHV Tee Fitting
This precision stainless steel tee is a key component for building and configuring ultra-high vacuum (UHV) and high-vacuum systems, offering a robust connection point between three 10″ ports.
Key Specifications:
-
Part Number: T-1000
-
Material: 304 Stainless Steel (Type 316L available upon request)
-
Design: Tee (Triaxial) Configuration
-
Ports: Three 10″ (254mm) OD ConFlat (CF) Flanges
-
Tube Diameter: 8″ (203.2mm) Outer Diameter
-
Critical Dimension: Leg Length (A-Dimension) = 7.5″ (190.5mm)
-
Finish: Electropolished (standard for UHV)
-
Sealing: Copper gasket knife-edge on all flanges
Applications:
-
Main chamber manifold for pumps, gauges, and viewports
-
Distribution point in semiconductor processing tools
-
Research synchrotron and particle accelerator beamlines
-
Thin-film deposition system architecture
| Weight | 40 lbs |
|---|---|
| Dimensions | 20 × 20 × 12 in |
