6 inch reducing ConFlat flange

Product Description

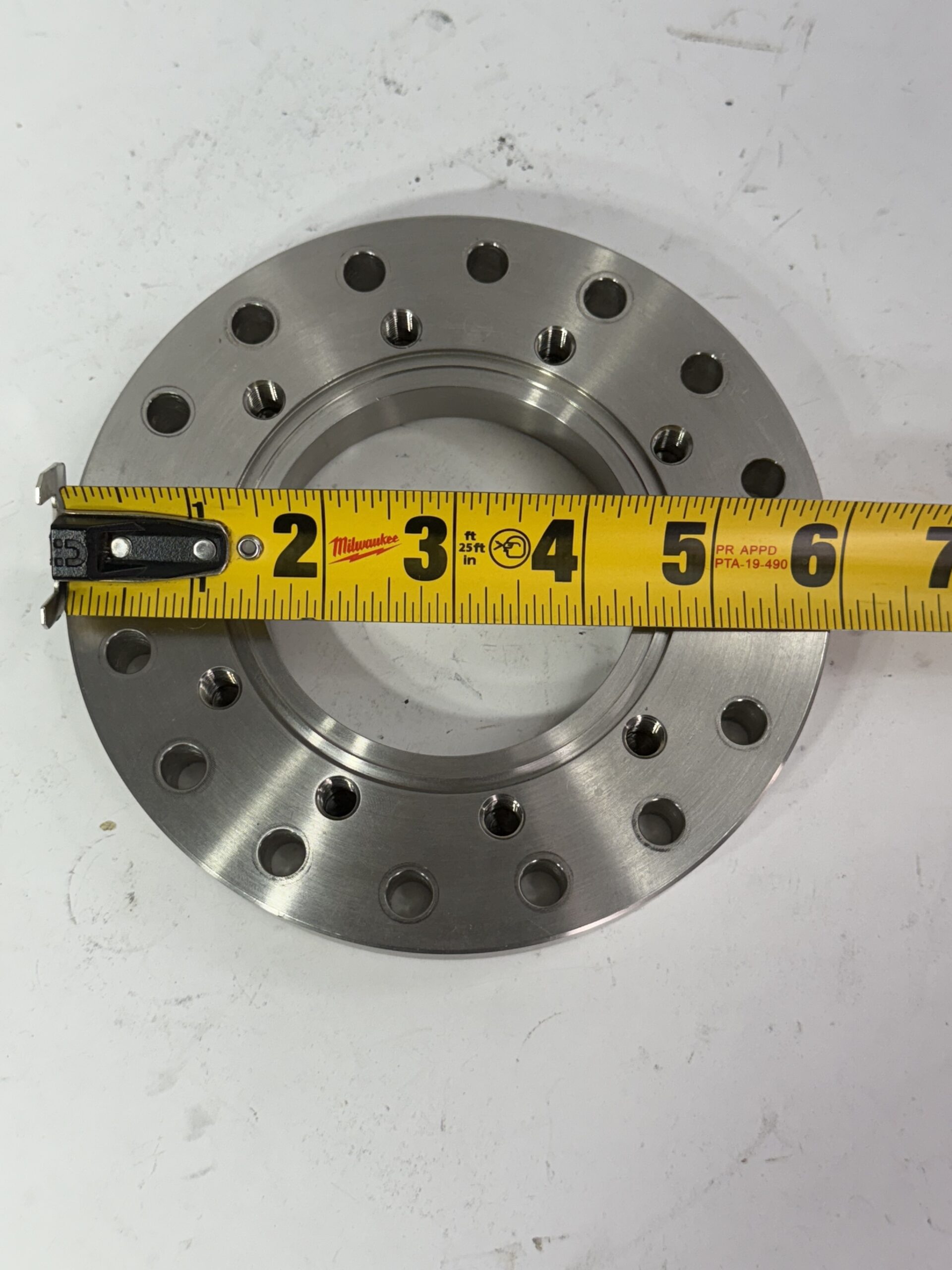

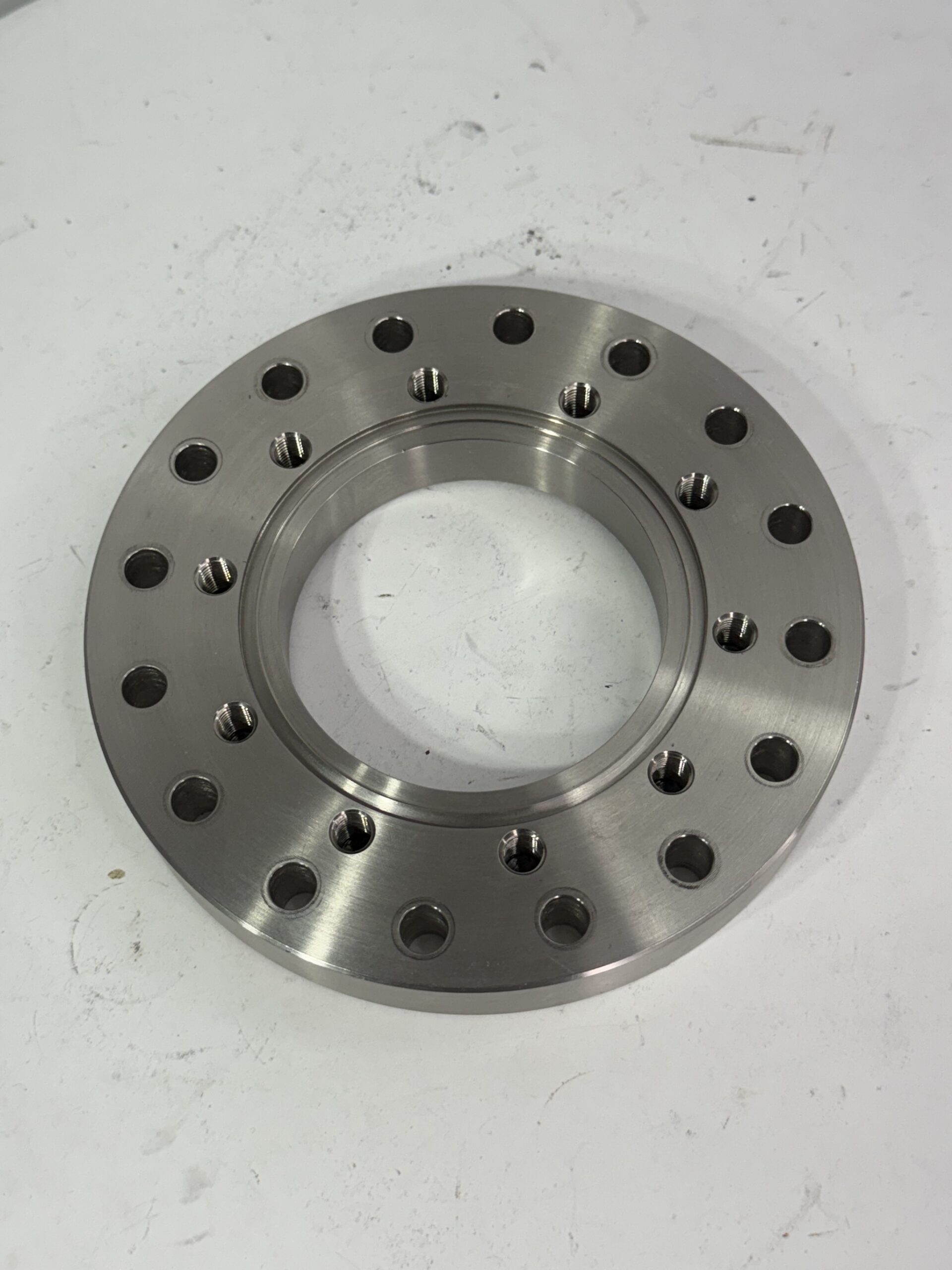

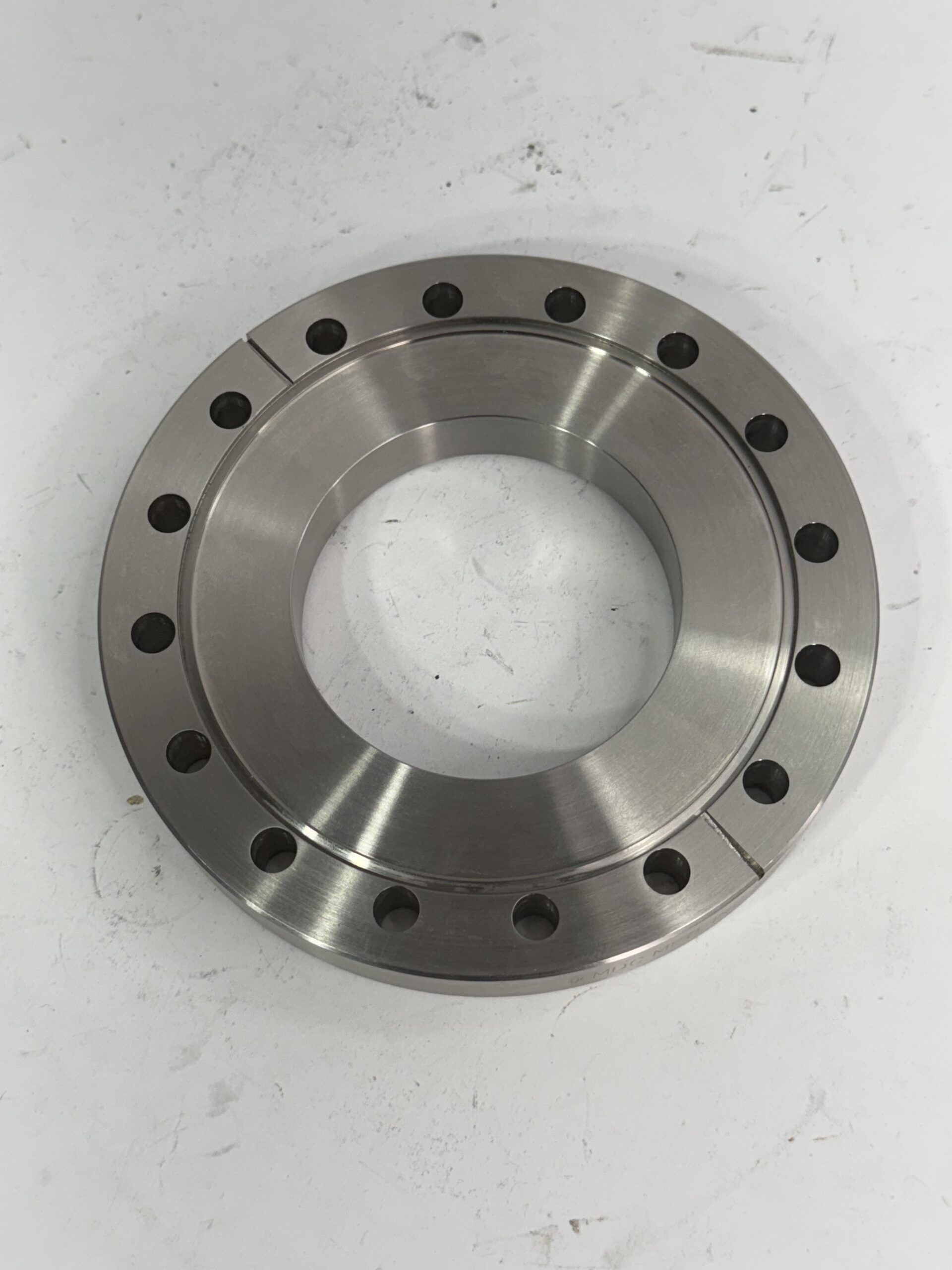

6″ Outer Diameter (152mm) ConFlat (CF) Vacuum Flange

This is a standard 6″ (152mm) Outer Diameter ConFlat flange, the workhorse connection for high vacuum (HV) and ultra-high vacuum (UHV) systems, providing a reliable, bakeable, metal seal.

Key Specifications & Features:

• Flange Type: ConFlat (CF), per standard dimensions

• Outer Diameter: 6″ (152mm)

• Material: Typically 304 or 316 Stainless Steel (confirm upon inquiry)

• Seal Type: Copper gasket knife-edge

• Pressure Rating: Suitable for UHV (down to 10⁻¹¹ Torr range)

• Bakeable: Designed for high-temperature bake-out

Important Note:

This is a listing for a standard 6″ CF flange. Specifics vary per unit. Please inquire to confirm:

• Gender: Male (M) or Female (F)

• Configuration: Blank, Tapped, Through-Hole, or Rotatable

• Exact Material: 304 SS, 316 SS, etc.

Applications:

• Connecting chambers, pumps, and valves in HV/UHV systems

• Research and laboratory vacuum setups

• Semiconductor and thin-film deposition equipment

• Particle accelerator and synchrotron beamlines
