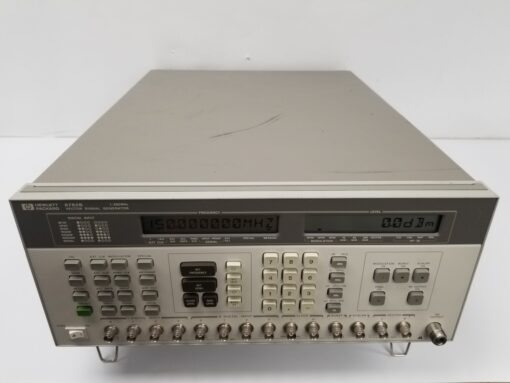

HEWLETT PACKARD VECTOR SIGNAL GENERATOR 8782B 1-250Mhz

HEWLETT PACKARD VECTOR SIGNAL GENERATOR 8782B 1-250Mhz. Unit powers on. Completes self-test. Fan quiet. Display good. Output verified with spectrum analyzer. Purchaser responsible for calibration/maintenance.

The HP 8782B is a high-performance vector signal generator designed for advanced modulation testing and vector signal processing applications. Operating in the 1 MHz to 250 MHz frequency range, this signal generator is widely used in digital communication system development, RF testing, and complex waveform generation.

Key Features:

• Frequency Range: 1 MHz to 250 MHz
• Output Power: Adjustable over a wide range for flexibility in testing
• Vector Modulation: Supports quadrature (I/Q) modulation
• Modulation Formats:
  • AM, FM, PM (Phase Modulation)
  • I/Q Modulation with external input
  • Supports complex digital modulation schemes
• Spectral Purity: Low phase noise and minimal distortion
• High Stability: Precise signal generation with low jitter
• Remote Control: GPIB (IEEE-488) interface for automated testing
• User Interface: Front panel controls and digital display for easy configuration

Applications:

• Digital Communication System Development
• RF and Baseband Testing
• Receiver Sensitivity and Performance Analysis
• Research & Development in Wireless Technology
• Radar and Navigation System Testing

The HP 8782B Vector Signal Generator is an ideal choice for engineers and researchers who require high-quality, modulated signals for complex communication and RF system testing.
