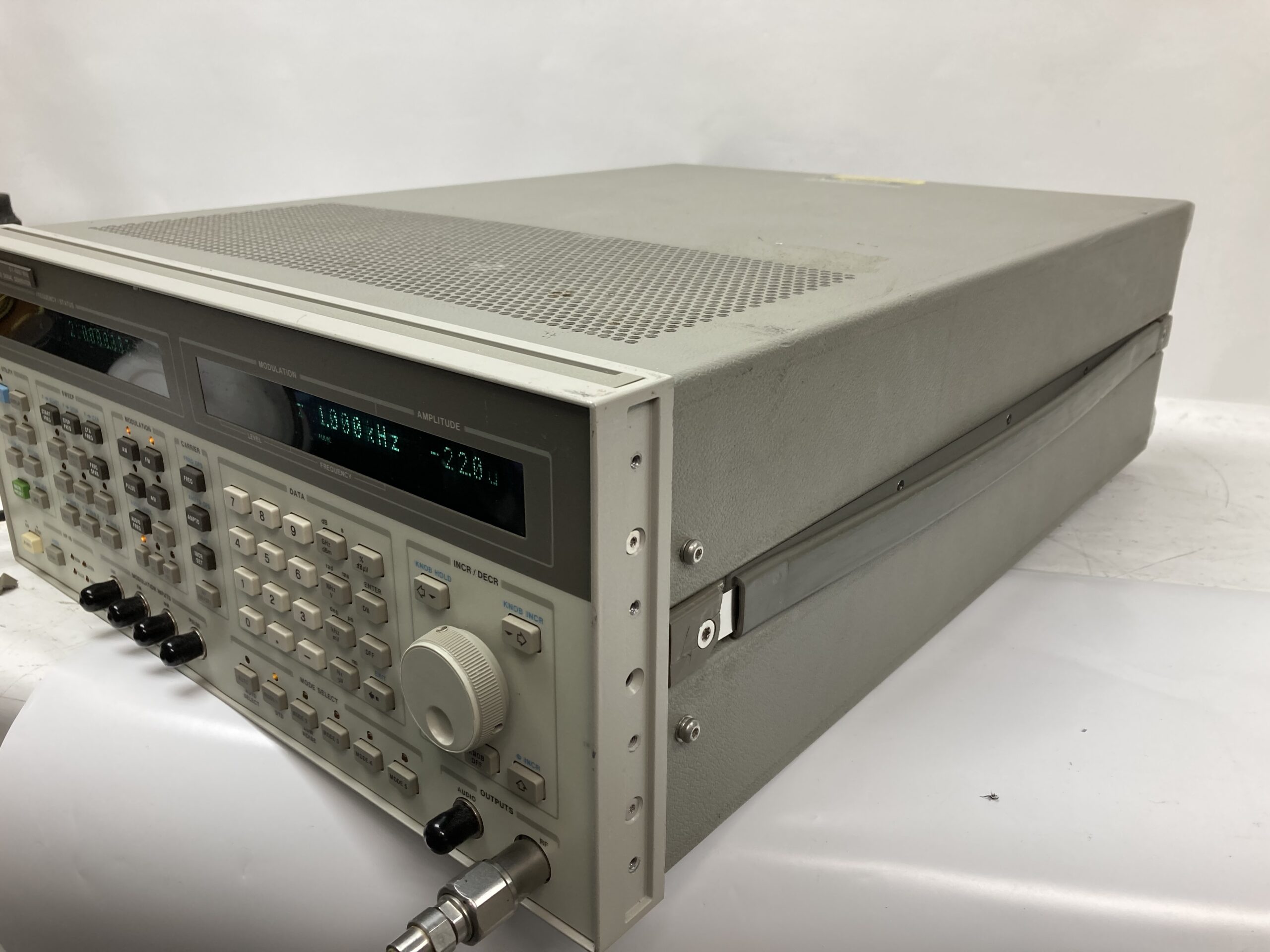

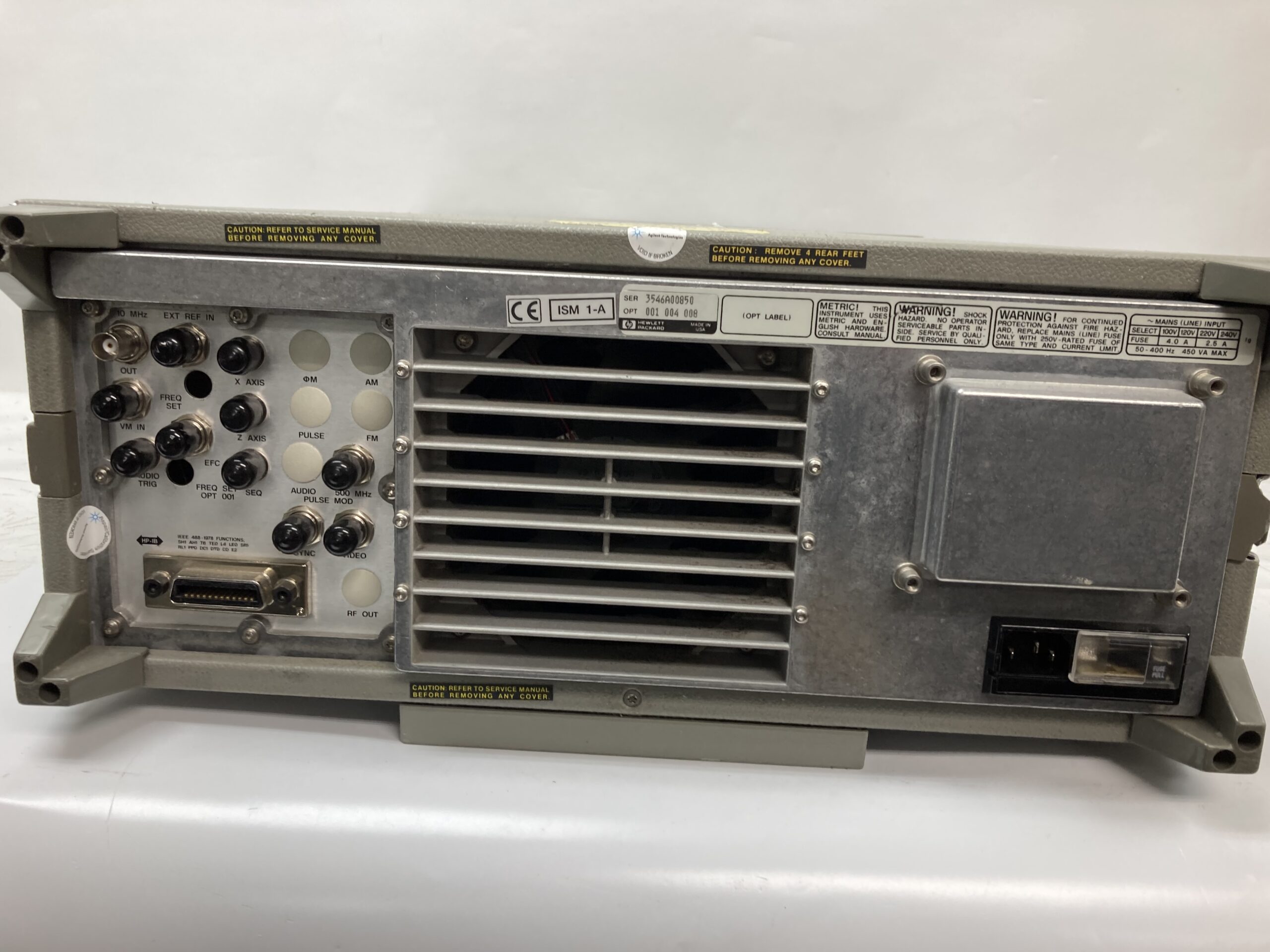

Hewlett Packard 8665B Synthesized Signal Generator

HP 8665B Synthesized Signal Generator Option 001, 004. No Error Codes on Power Up. Tested at Various Frequencies and Modulations – O.K. Purchaser responsible for any calibration, certification, maintenance or repair. As shown.

The HP 8665B is a high-performance synthesized signal generator, designed for RF and microwave testing applications requiring low phase noise, high output power, and precise frequency control. With a frequency range of 0.1 Hz to 4.2 GHz, this signal generator is widely used in communications, radar, electronic warfare (EW), and component testing.

Key Features:

• Frequency Range: 0.1 Hz to 4.2 GHz
• Frequency Resolution: 0.1 Hz steps
• Output Power Range: -140 dBm to +17 dBm (typical)
• Phase Noise: Ultra-low phase noise for precision testing
• Modulation Capabilities:
  • AM, FM, and Pulse Modulation
  • External and internal modulation sources
  • High-accuracy modulation depth and deviation
• Spectral Purity: Low spurious and harmonic distortion
• Output Impedance: 50Ω (Type N connector)
• User Interface: Digital display with soft key navigation
• Remote Control & Automation: GPIB (IEEE-488) interface for automated testing

Applications:

• RF and Microwave Component Testing
• Receiver Sensitivity and Performance Evaluation
• Military and Aerospace Signal Simulation
• Phase Noise Testing
• Radar and Communications System Development

The HP 8665B delivers exceptional signal purity and precision, making it a trusted tool in R&D, production, and maintenance environments where high-stability signal generation is required.
