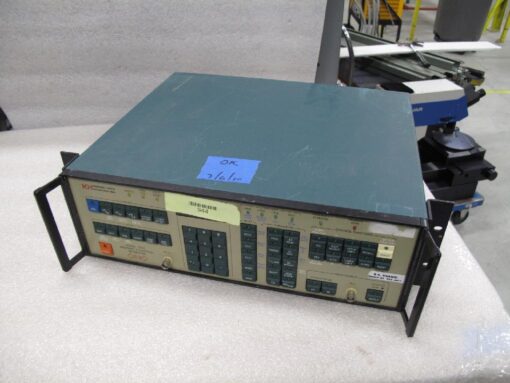

Krohn-Hite KH 5920 Arbitrary Function Generator

Krohn-Hite KH 5920 Arbitrary / Function Generator .001Hz-10MHz.
Auto Self Test..

Unit powers on. Completes power on self test.
Cooling fan quiet.
Tested output at various frequencies, waveforms, sweep rates and levels with oscilloscope O.K.
Cosmetic condition : Very good. Minor scratches on top cover. Desk feet, rack ears and handles.



Manufacturer: Krohn-Hite
Model: KH 5920
Category: Function Generators / Electronic Test Equipment

---

Product Overview:

The Krohn-Hite KH 5920 Arbitrary Function Generator is a versatile and high-precision instrument designed for generating custom waveforms in a wide range of electronic testing and research applications. With advanced arbitrary waveform capabilities, high resolution, and low distortion, the KH 5920 is an essential tool for simulating complex signals, performing detailed circuit analysis, and supporting automated test systems.

---

Key Specifications:

• Frequency Range: Approximately 1 Hz to 20 MHz
• Output Voltage Range: 0 to 10 V peak-to-peak (adjustable)
• Resolution: 16-bit amplitude resolution for fine signal detail
• Memory Depth: Capable of storing complex arbitrary waveforms (e.g., up to 16K points)
• Output Impedance: 50 Ω (typical)
• Waveform Types: Standard (sine, square, triangle) and fully programmable arbitrary waveforms
• Interface: Front panel controls with optional remote operation via GPIB
• Display: Integrated digital display for real-time waveform and parameter visualization

---

Key Features:

• Arbitrary Waveform Generation:
  Create custom waveforms with high precision, enabling simulation of complex signal environments.

• High Accuracy & Low Distortion:
  Offers exceptional signal fidelity, making it ideal for sensitive measurements and advanced R&D.

• User-Friendly Operation:
  Intuitive front panel and digital display simplify waveform setup and adjustments.

• Remote Control Capability:
  Supports integration with automated test systems via GPIB for streamlined operation in production environments.

• Versatile Applications:
  Suitable for component testing, circuit analysis, and system validation in various industrial, academic, and research settings.

---

Applications:

• Electronics Testing & Validation:
  Evaluate device performance by simulating real-world signal conditions.

• Automated Test Systems (ATE):
  Integrate into automated setups for high-throughput testing and quality control.

• Research & Development:
  Develop and refine innovative circuit designs and communication systems.

• Signal Simulation:
  Generate complex digital and analog waveforms for accurate system characterization.

---

What’s Included:

• 1 x Krohn-Hite KH 5920 Arbitrary Function Generator
• Power Cord
• User Manual and Quick Start Guide

---

Why Choose the Krohn-Hite KH 5920?

The KH 5920 Arbitrary Function Generator combines advanced waveform generation capabilities with high precision and low distortion, making it an indispensable tool for engineers and researchers. Whether for intricate R&D projects or automated production testing, its versatility and robust performance ensure reliable, high-quality results.
