Extreme Engineering Solutions 30061060 carrier with 30061080 module

Product Description

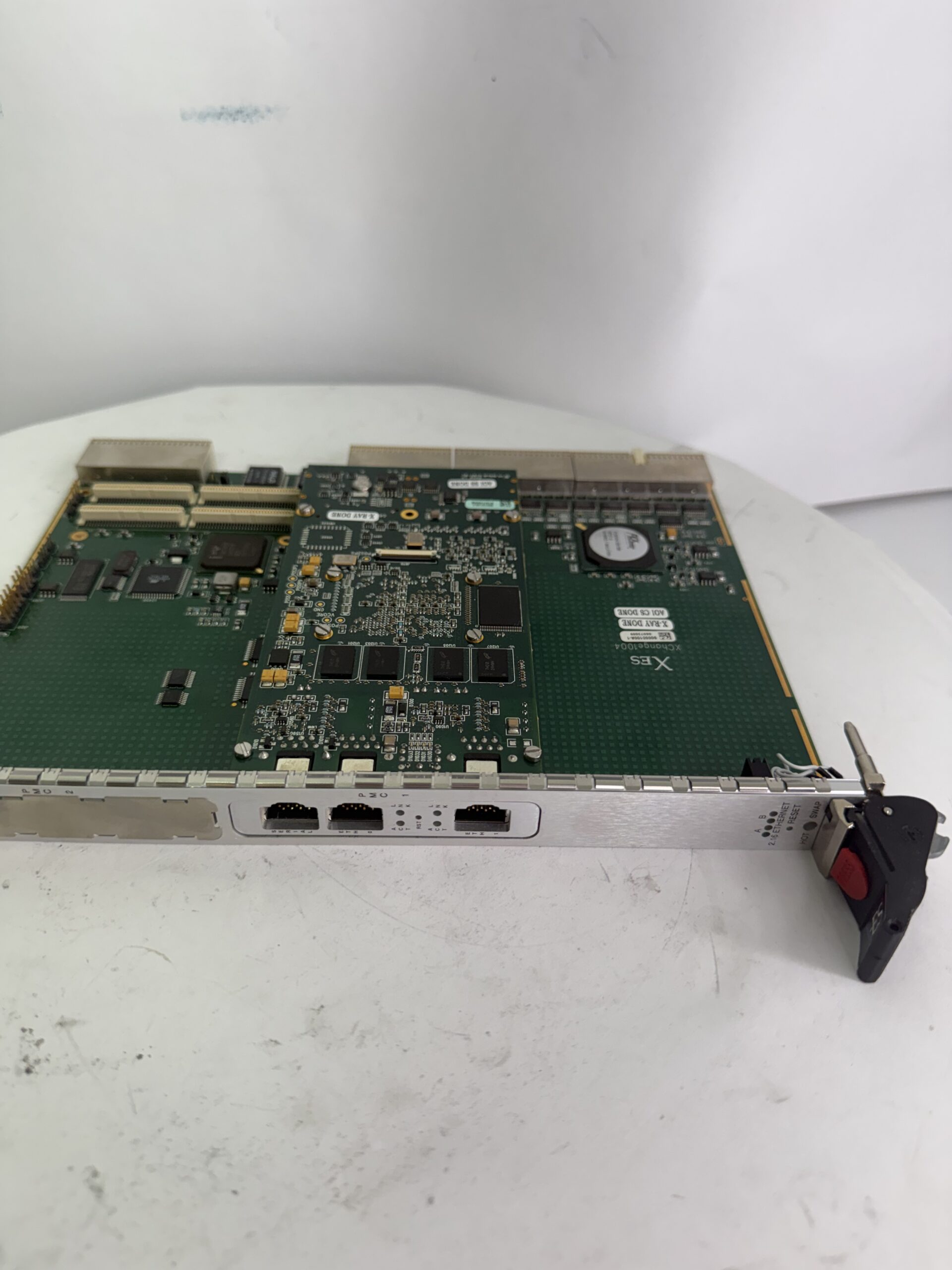

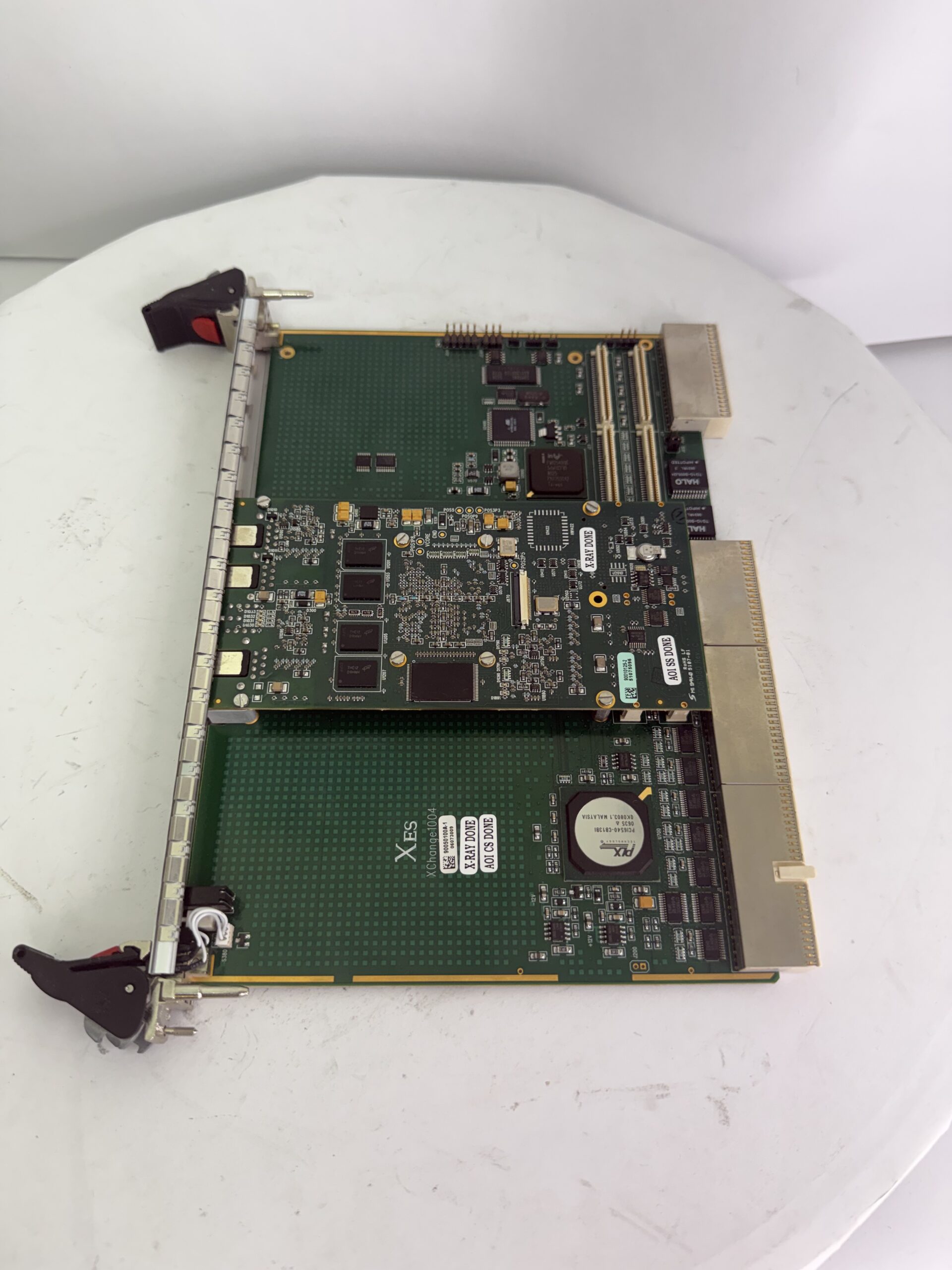

Extreme Engineering Solutions (X-ES) 30061060 Rev A Base Carrier with 30061080 Rev C Module – Stacked Industrial Embedded Assembly

This used assembly consists of an Extreme Engineering Solutions (X-ES) 30061060 Rev A base board populated with an X-ES 30061080 Rev C module. X-ES is recognized for designing and manufacturing high-performance embedded computing solutions, including Single Board Computers (SBCs), I/O cards, and custom carrier boards used extensively in defense, aerospace, and industrial automation.

The stacked configuration suggests a mezzanine architecture typical of VPX, VME, or custom form factors, where the base board handles backplane connectivity and power distribution while the secondary module provides specific processing or I/O expansion.

Assembly Configuration:

• Base Carrier (30061060 Rev A): Likely serves as the primary interface board of the assembly.

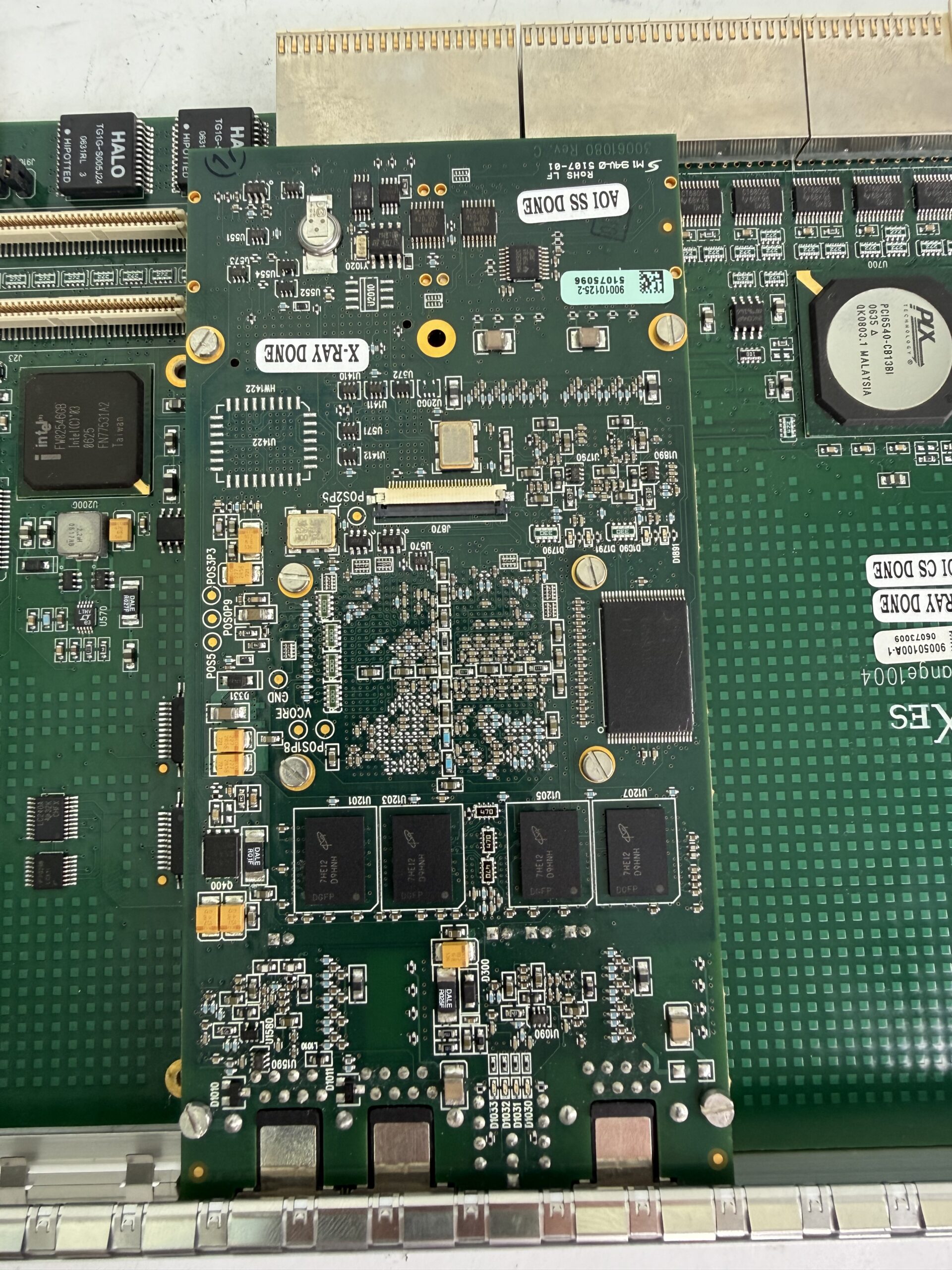

• Secondary Module (30061080 Rev C): Daughterboard attached to the base via high-density connectors.

Condition Note:
SOLD AS IS
USED – PULLED FROM SURPLUS
CONFIGURATION: Base unit with one attached daughterboard.
SEPARATION STATUS: Modules currently attached; they can likely be separated.
FUNCTIONALITY NOT TESTED
NO CABLES OR DOCUMENTATION INCLUDED

Applications

• Legacy System Repair: Replacement for failed units in X-ES based systems.

• Component Salvage: Harvesting specific XES parts for OEM repair.

• Reverse Engineering: Analyzing pinout and logic for proprietary embedded hardware.
