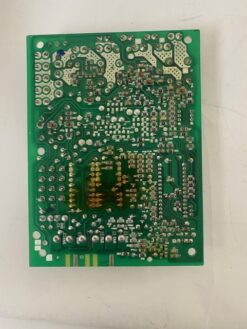

The image shows a White-Rodgers Intell-Ignition Control Board, which is commonly used in HVAC systems, particularly in furnaces. Here’s a detailed breakdown of what you’re looking at:
Key Identifiers:
-
Brand: White-Rodgers
-
Product Line: Intell-Ignition
-
Visible Model Markings:
-
Label marked DD-C (this may be the board revision code)
-
IC chip labeled 50A65-843 or 50A65-476 (model number variants)
-
-
Notable Components:
-
Relays
-
Transformer
-
Fuse
-
Terminal blocks (W, R, C, etc.)
-
LED diagnostic lights (e.g., DS2)
-
DIP switches (configuration settings)
-
Possible Model:
This board closely resembles the White-Rodgers 50A65-843 or similar 50A65-series modules, used in gas furnace ignition and fan control.
Common Applications:
-
Used in gas furnaces to manage the ignition process and safety checks
-
Provides control for blower fan, inducer fan, hot surface ignitor, and gas valve
Compatible with:
-
Residential or light commercial HVAC systems
-
Brands using White-Rodgers OEM parts (like Emerson)
