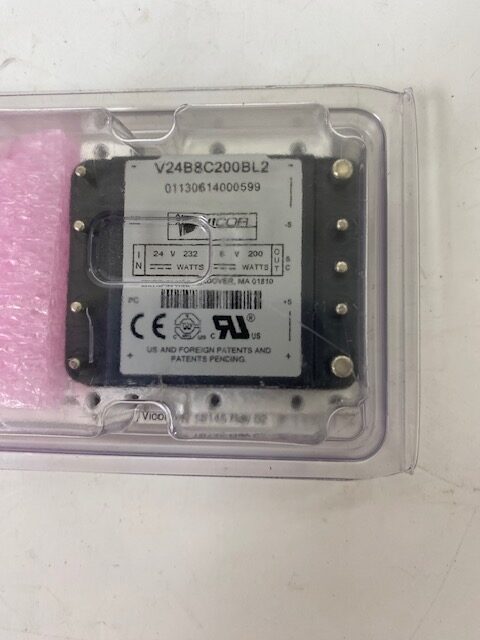

The Vicor V24B8C200BL2 is a high-performance isolated DC-DC converter designed for demanding applications. Below are its key specifications:
-
Input Voltage Range: 18V to 36V
-
Output Voltage: 8V
-
Maximum Output Current: 25A
-
Maximum Output Power: 200W
-
Isolation Voltage: 3kV
-
Efficiency: Approximately 86.4%
-
Operating Temperature Range: -20°C to 100°C
-
Package Dimensions: 2.28″ x 2.20″ x 0.50″ (57.9mm x 55.9mm x 12.7mm)
-
Mounting Type: Through Hole
-
Features: Overvoltage Protection (OVP), Undervoltage Lockout (UVLO)
This converter is part of Vicor’s MINI series and is suitable for Information Technology Equipment (ITE) applications. Its compact size and robust features make it ideal for environments requiring reliable and efficient power conversion.
