RF-Lambda RFLUPA13G16GB 60W Power Amplifier 13-16GHz

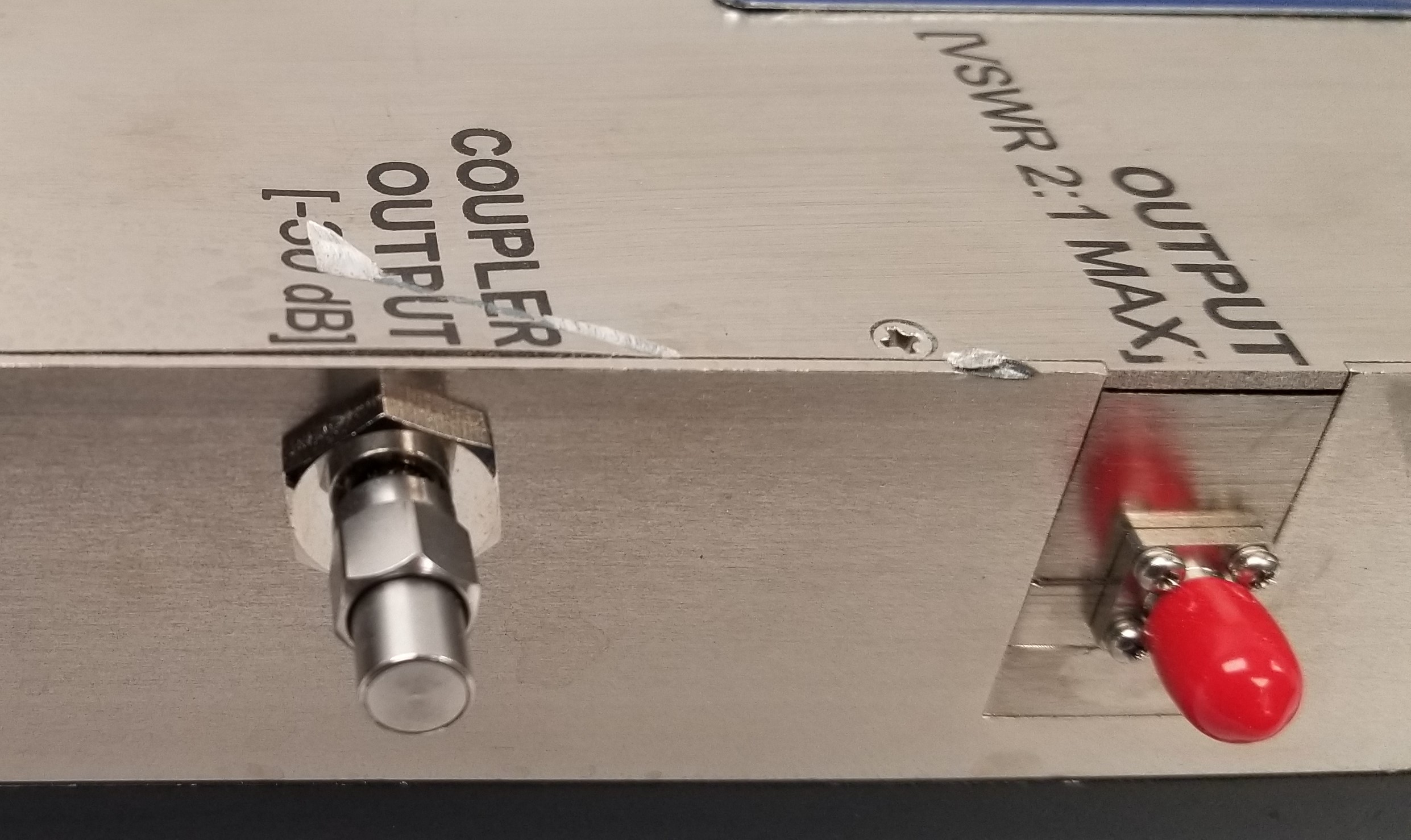

RF-Lambda RFLUPA13G16GB 60W Power Amplifier 13-16GHz. Unit mounted to a dual fan heat sink assembly with spring loaded handles. No manual, cables or other accessories. Factory seal intact. Scratch in top cover as shown in gallery image. Tested O.K. at 15GHz -10dB input for +38dB output. Purchaser responsible for correct wiring, installation and use.

From RF-Lambda:

• Short Haul / High Capacity Links
• High Power Amplifier
• Military & Space
• Psat: + 48dBm
• Gain: 50 dB
• Supply Voltage: +48V
• 50 Ohm Matched Input/Output

Electrical Specifications , TA = +25°C Vd= +48V
Parameter Min. Typ. Max. Min. Typ. Max. Units
Frequency Range 12.5 ‐14 15 ‐16 GHz
Gain 50 45 dB
Gain Flatness ±5 ±4 dB
Gain Variation Over Temperature(‐45 ~ +85) ±3 ±3 dB
Input Return Loss 15 13 dB
Output Return Loss 15 15 dB
Saturated Output Power (Psat) 48 47 dBm
Supply Current (Idd) (Vcc=+48V) 1 1 A
Isolation S12 65 65 dB
Input Max Power(no damage) Psat‐Gain Psat‐Gain dBm
Weight 3000 g
Impedance 50 Ohms
Input /Output Connector SMA‐Female
Power / Control Connector D‐subCOMBO 3POS
Finishing Standard: Nickel 220 micron thickness
Material Aluminum/copper
Package Sealing Epoxy and Screw tight Sealing (Standard)
Hermetically Seal (Option with extra charge)

No manual, cables or other accessories. Purchaser responsible for correct wiring, installation and use.
