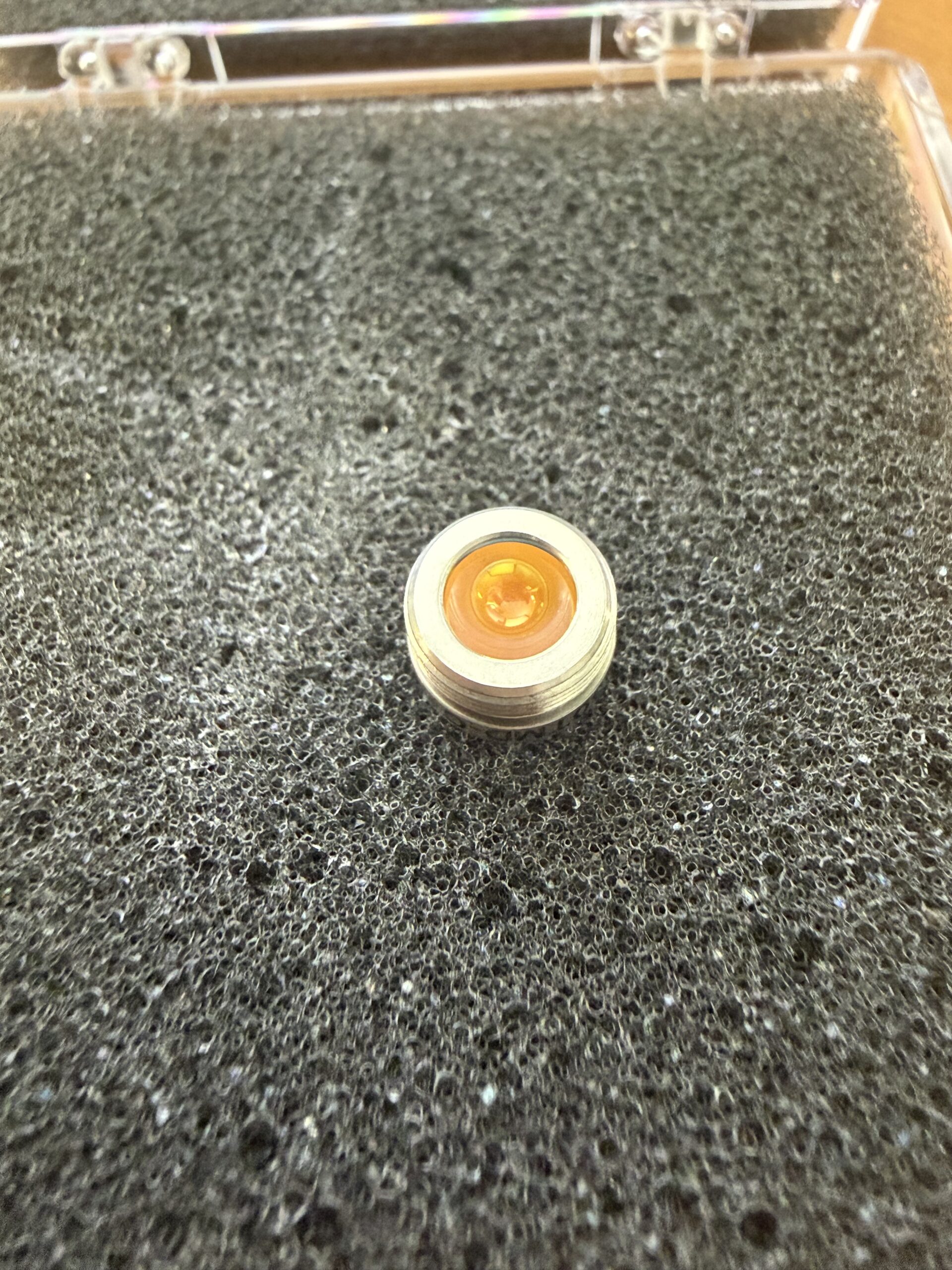

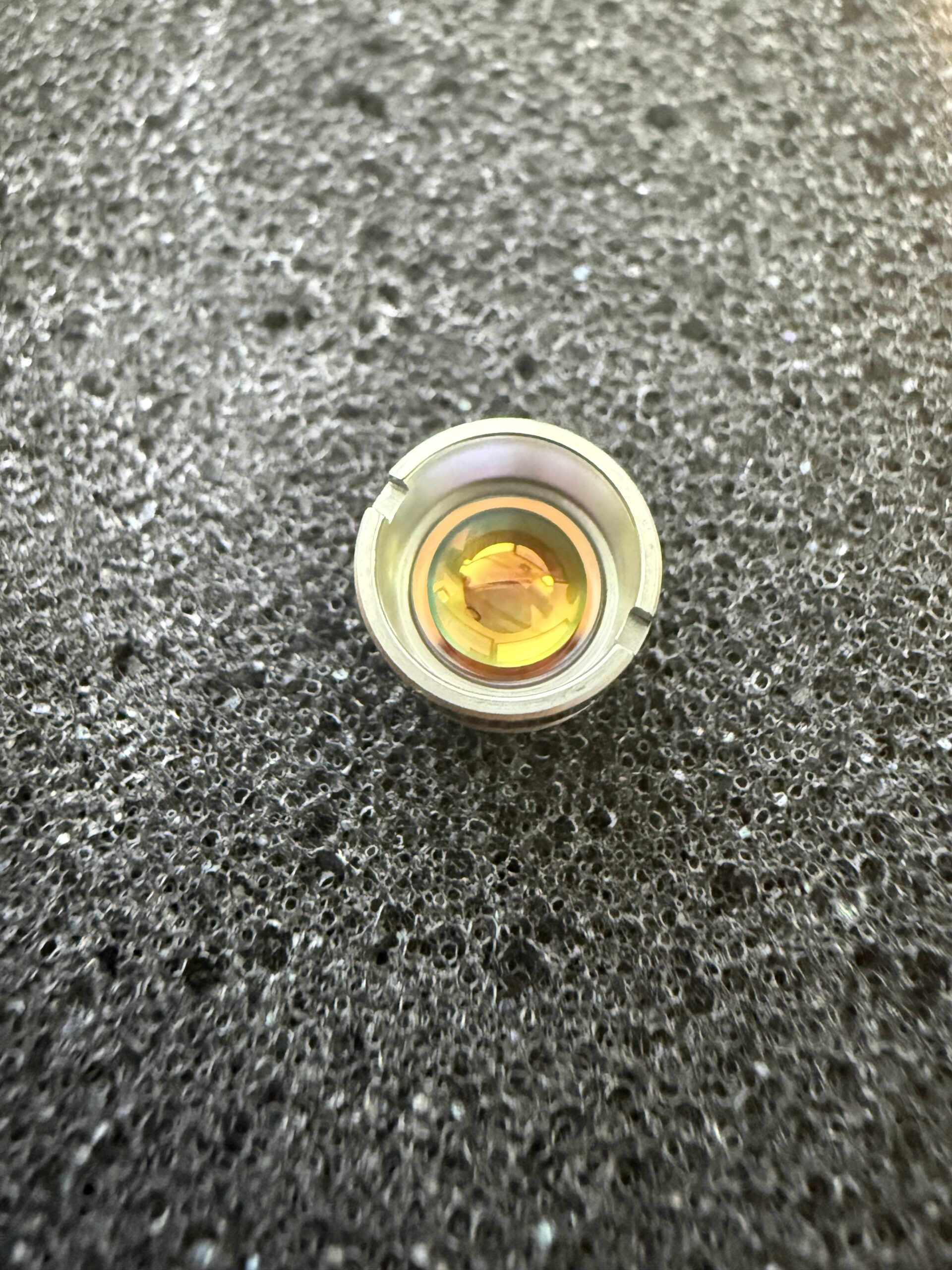

Thorlabs C230TMD-C kinematic mount

Product Description

Thorlabs C230TMD-C Kinematic Mirror Mount – 2.4mm Cage Compatible  `

A high-precision, micrometer-driven kinematic mirror mount designed for stable, adjustable beam steering within Thorlabs 2.4mm cage systems.

🔧 Specifications:

• Model: C230TMD-C

• Compatibility: 2.4mm cage system

• Drive Mechanism: Dual micrometer actuators (spring-loaded opposite side)

• Adjustment Range: ±4° (pitch and yaw)

• Mirror/Load Capacity: Accepts 2.4mm diameter optics (mirrors, filters, etc.)

• Material: Anodized aluminum with stainless steel hardware

✅ Condition & Notes:

• Condition: Used – Fully Functional

• Includes: C230TMD-C mount only

• Note: Micrometers and adjustment screws show signs of use but operate smoothly

⚙️ Key Features:

• Kinematic Design: Three-point contact ensures stable, repeatable alignment

• Micrometer Actuators: For fine, calibrated angular adjustment

• Cage-Compatible: Integrates directly into Thorlabs 2-inch optical cage systems

• Spring-Loaded: Opposing spring maintains tension for drift-free positioning

• Versatile: Can hold mirrors, filters, beam splitters, or other 2-inch optics

🛠️ Applications:

• Laser beam steering and alignment

• Optical breadboard and cage system experiments

• Interferometry and imaging setups

• Educational and research laboratory optics

• Prototyping and photonics development
