Macken Instruments 22A thermal image plate

Product Description

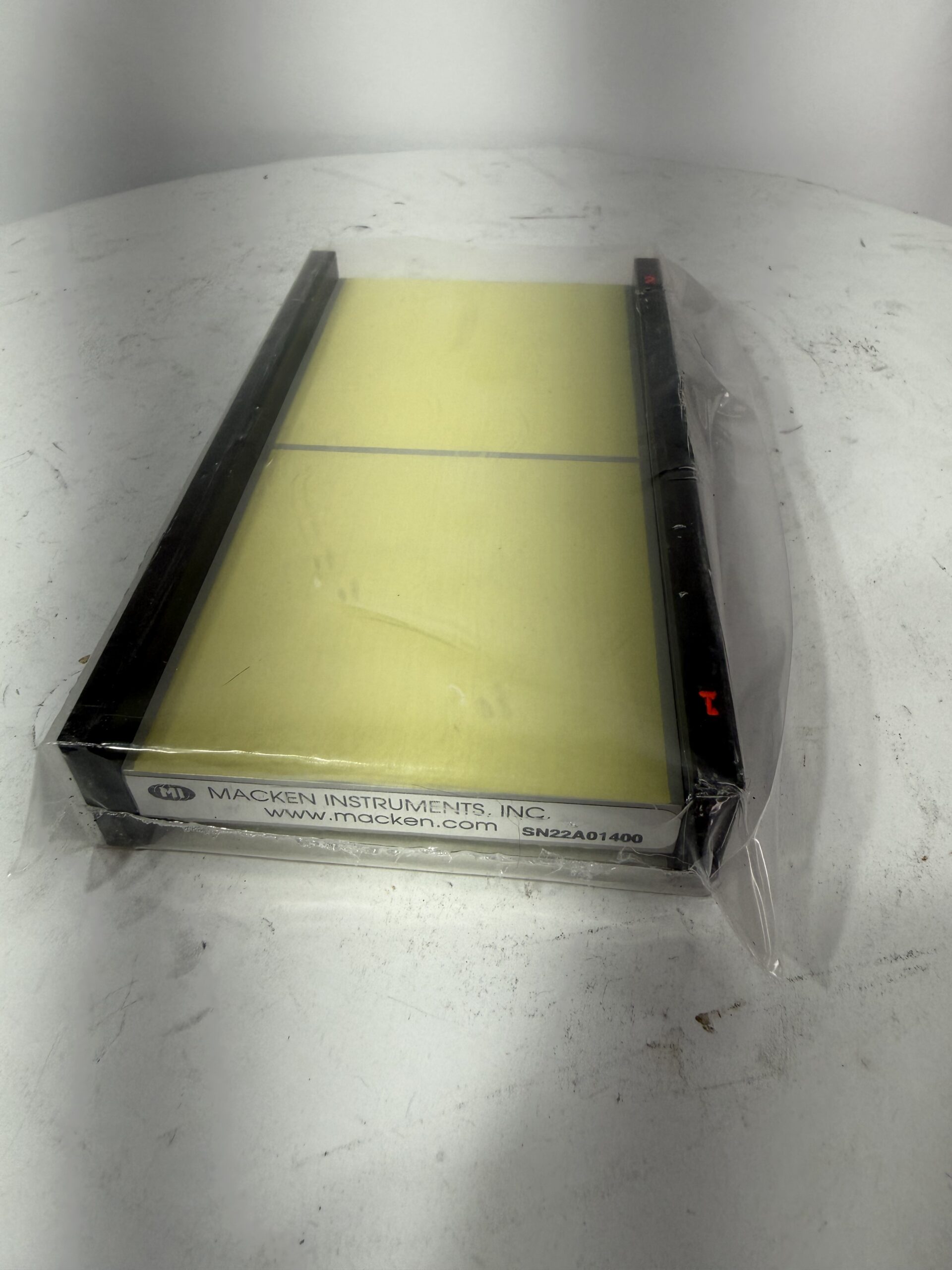

Macken Instruments 22A Thermal Image Plate – Laser Beam Profiling & Diagnostics Tool

A specialized thermal imaging plate designed for visualizing, profiling, and analyzing infrared laser beams in laboratory and industrial settings.

🔍 Specifications:

• Model: 22A Thermal Image Plate

• Manufacturer: Macken Instruments (specialist in laser measurement tools)

• Use: Visualizes infrared laser beams (CO₂, Nd:YAG, fiber lasers, etc.) by converting IR radiation to visible thermal patterns

• Plate Size/Format: [Add dimensions if known, e.g., 4″ x 4″ plate, mounted or unmounted]

• Sensitivity Range: Typically sensitive to mid- to far-infrared wavelengths (e.g., 1 µm – 10.6 µm)

• Surface: Coated thermal-sensitive layer for clear, high-contrast beam visualization

⚙️ Key Features & Applications:

• Non-Electrical Visualization: Safe, passive tool for viewing IR laser beams without detectors or cameras

• Beam Profiling: Quickly assess beam shape, mode structure, hotspots, and alignment

• Educational & Diagnostic Use: Ideal for laser labs, classroom demonstrations, and optical alignment

• Durable Design: Withstands repeated exposure to moderate laser power (use within recommended power/energy limits)

Typical Uses:

• CO₂ laser alignment and mode analysis

• Nd:YAG, fiber laser, and other IR laser diagnostics

• Laser safety training and beam visualization demonstrations

• Research and development in photonics and laser engineering
