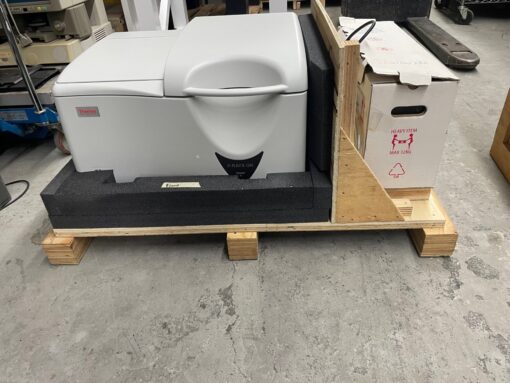

Thermo Scientific ARL Quant’X EDXRF Analyzer – High-Precision Elemental Analysis

Product Overview:

The Thermo Scientific ARL Quant’X EDXRF Analyzer – High-Precision Elemental Analysis is a cutting-edge energy dispersive X-ray fluorescence (EDXRF) instrument designed for rapid, non-destructive elemental analysis across a wide range of materials. With advanced features that enhance accuracy and ease of use, this analyzer is ideal for industries requiring precise elemental quantification, including metallurgy, mining, environmental monitoring, and quality control. The ARL Quant’X is known for its high sensitivity and exceptional resolution, making it perfect for applications demanding precise results with minimal sample preparation.

Key Specifications:

• Manufacturer: Thermo Scientific
• Product Category: Energy Dispersive X-ray Fluorescence (EDXRF) Analyzer
• Model: ARL Quant’X
• Detection Method: X-ray Fluorescence (XRF)
• Elemental Range: From sodium (Na) to uranium (U)
• Sample Type: Solids, liquids, and powders
• Analysis Time: Fast results, typically under 1 minute
• X-ray Tube: High-performance Rhodium (Rh) anode tube
• Resolution: High energy resolution (better than 140 eV at 5.9 keV)
• Precision: High precision with calibration curves for a variety of elements
• Power Supply: 110V to 240V AC, 50-60 Hz
• Dimensions: H x W x D: 730 x 500 x 600 mm
• Weight: Approximately 35 kg
• Software: QX Software with advanced data analysis and reporting functions
• Compliance: RoHS, CE certified
• Temperature Range: 0°C to 40°C (operating)
• Moisture Sensitivity: Yes (must be handled appropriately to prevent damage)

Key Features:

• Wide Elemental Range: Measures a broad spectrum of elements from sodium (Na) to uranium (U) for diverse applications.
• Fast Analysis: Achieves reliable results in as little as one minute, making it ideal for high-throughput environments.
• High Sensitivity: Equipped with a rhodium anode X-ray tube, providing superior sensitivity and precision in detecting trace elements.
• Multi-Sample Capability: Capable of analyzing solids, liquids, and powders, providing versatility for a wide range of industries.
• Advanced Software: Includes QX Software, allowing for customized analysis, easy data interpretation, and comprehensive reporting features.
• Compact and User-Friendly: Despite its advanced technology, the ARL Quant’X is designed with ease of use in mind, making it suitable for both experienced operators and those new to XRF analysis.

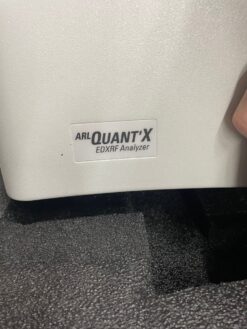

Thermo Scientific ARL Quant’X EDXRF Analyzer

***66282***
