Product Description

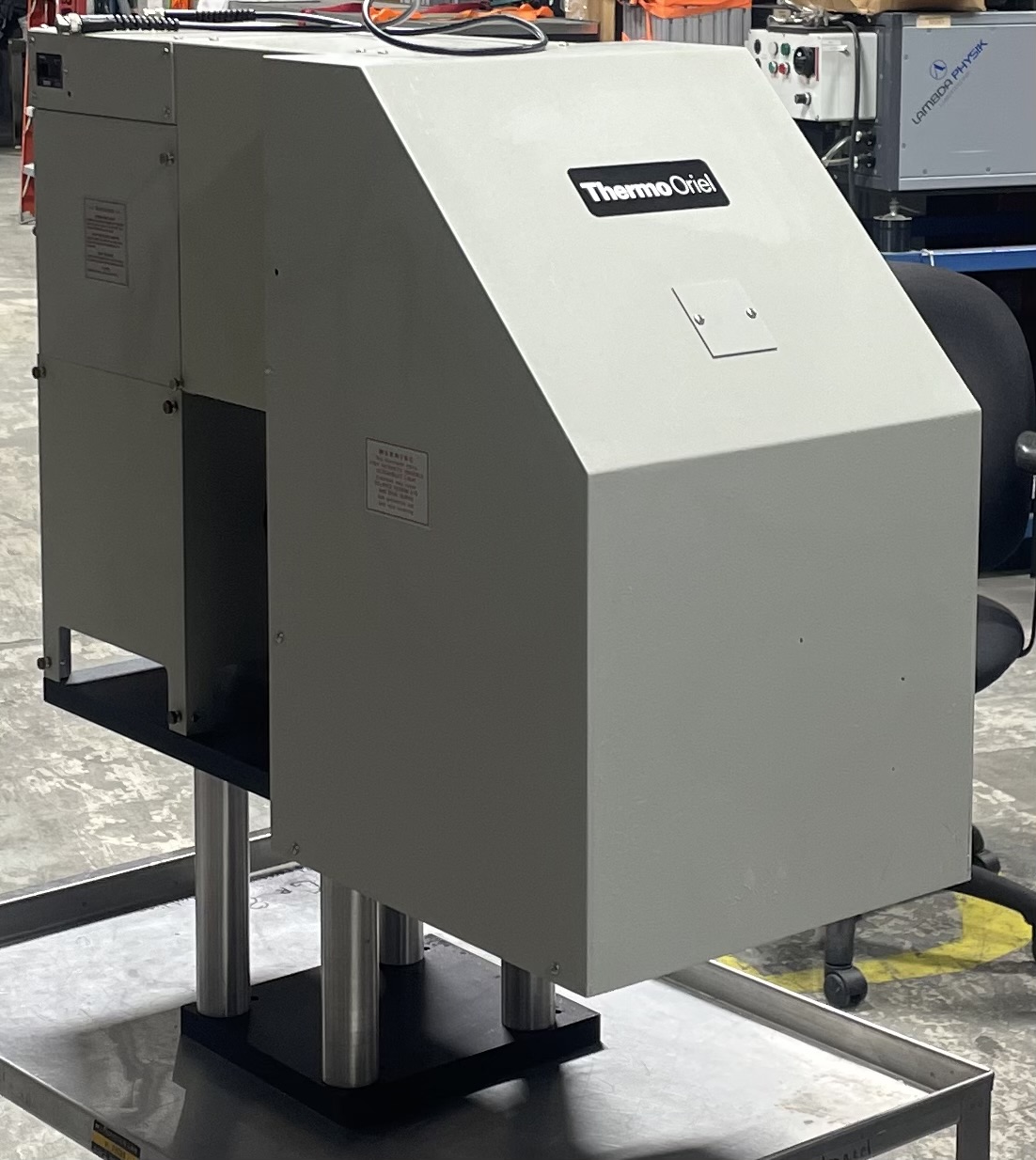

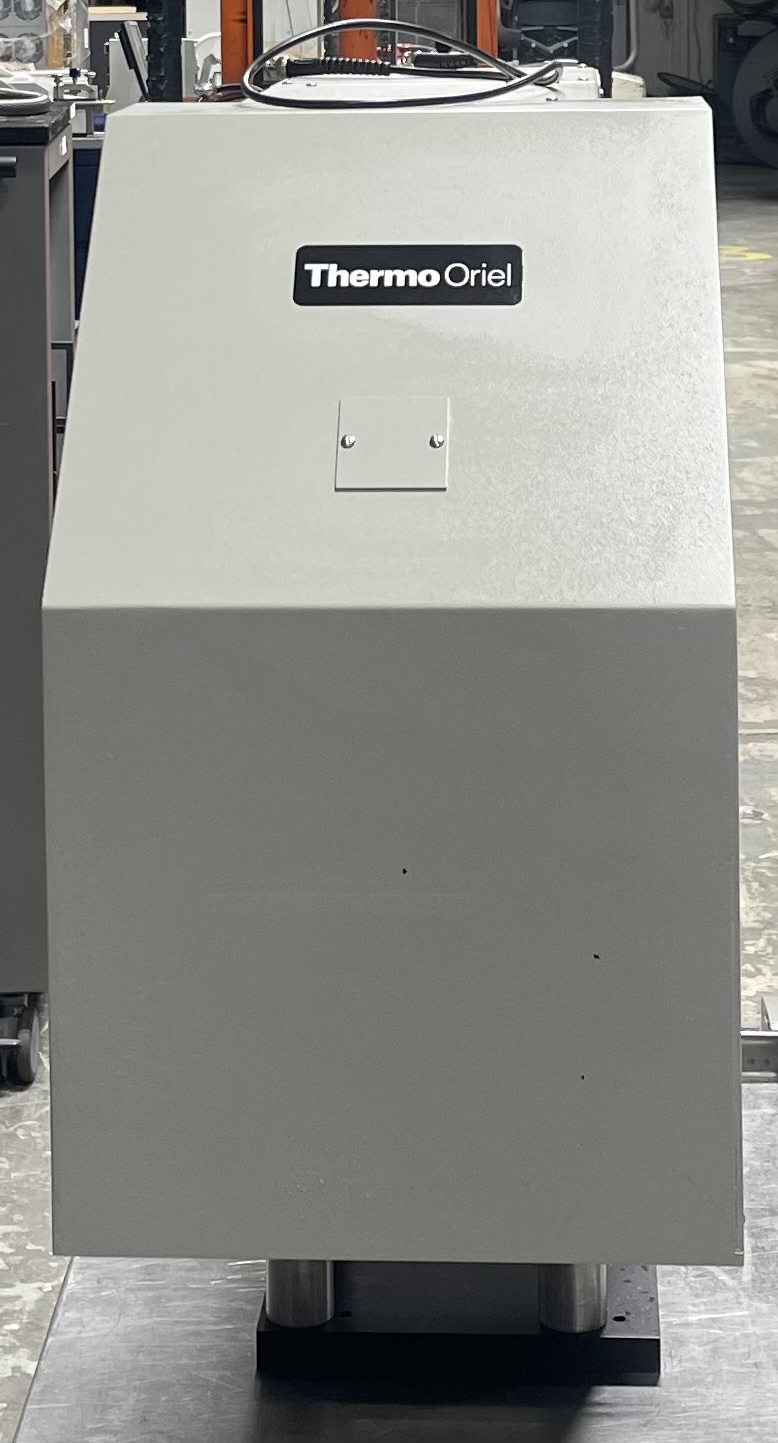

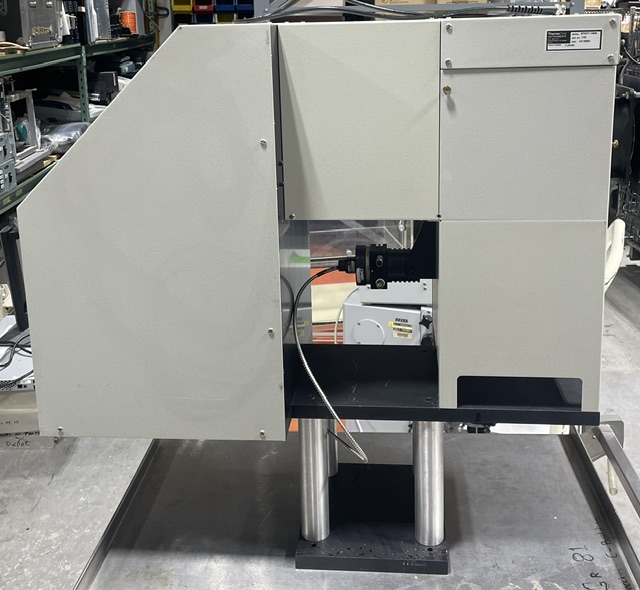

Thermo Oriel 87437-1000 UV Flood Exposure System – Compact UV Curing and Photolithography System
This used Thermo Oriel 87437-1000 is a compact, user-friendly UV flood exposure system designed for small-scale photolithography, photochemistry, and UV curing applications . It is part of Oriel’s renowned line of exposure systems, widely used in research and development for their precise control over exposure parameters .
This system includes a 500W UV lamp housing operating in the 350 to 450nm spectral region, with an 8″ x 8″ beam size. It is paired with a 200-500W mercury (Hg) arc lamp power supply .
Condition Note: This unit is untested and sold as-is. It is being sold for parts or repair due to the known power supply/electronics issue. No lamp or accessories are guaranteed. Please inspect the unit carefully.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Thermo Oriel |

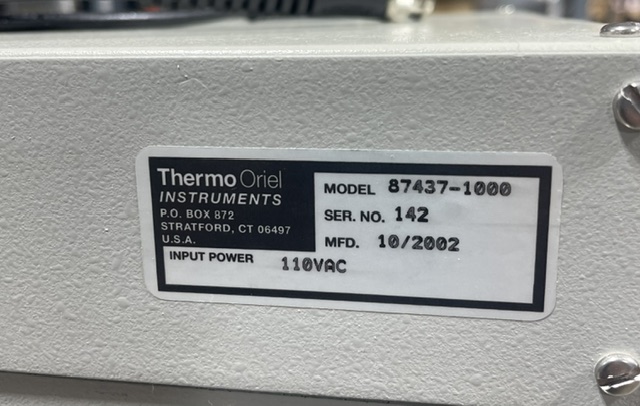

| Model | 87437-1000 |
| Lamp Type | 500W UV Lamp Housing |
| Lamp Power Supply | 200-500W Hg Arc Lamp Power Supply |
| Spectral Region | 350 – 450 nm |
| Beam Size | 8” x 8” |
| Application | Photolithography, photochemistry, UV curing |
| Known Issue | Needs new power supply and electronics |
| Condition | Used – Untested – For Parts/Repair |
Applications
-
Photolithography: Small-scale pattern transfer for research and prototyping
-
Photochemistry: UV-initiated chemical reactions
-
UV Curing: Polymer and coating curing applications
-
Laboratory Research: General UV exposure for material testing
