SSEC Tank I/O 110110170-G with fuses

Product Description

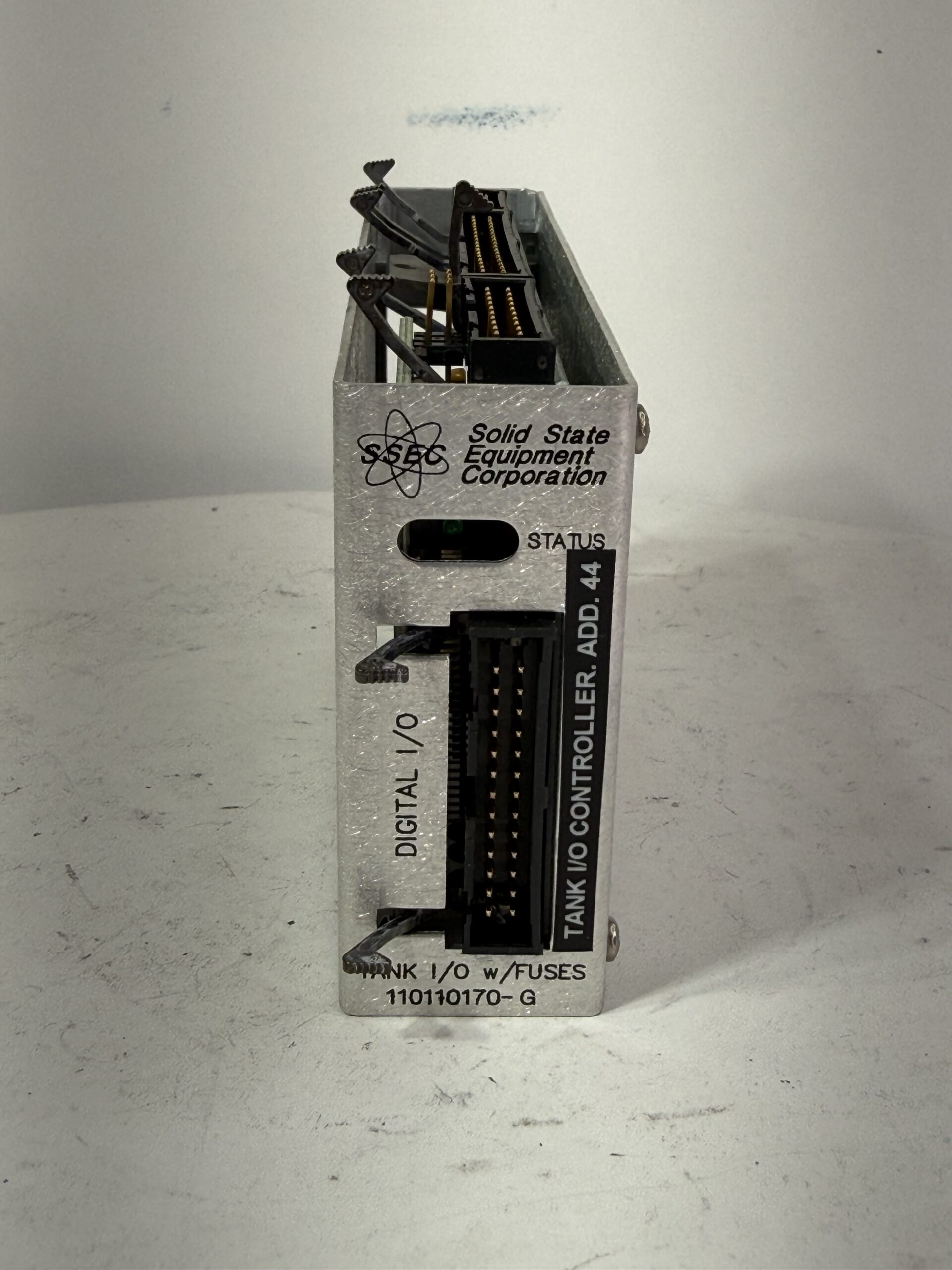

SSEC Solid State Equipment Tank I/O Module 110110170-G with Fuses – Vacuum System Interface Board

A specialized I/O (Input/Output) interface module with integrated fuses, manufactured by Solid State Equipment Corporation (SSEC), designed for controlling and monitoring peripheral devices in semiconductor vacuum processing systems. This module typically interfaces between a vacuum tool’s main controller and various tank-mounted components such as valves, gauges, pumps, and sensors, providing both signal conditioning and electrical protection.

🔧 Key Specifications & Details:

• Manufacturer: Solid State Equipment Corporation (SSEC)

• Model/Part Number: Tank I/O 110110170-G (Revision G)

• Primary Function: Provides isolated I/O channels with fused protection for vacuum system components

• Typical Integration: Installed in or near vacuum “tanks” or chambers in semiconductor etch, deposition, or cluster tools

• Protection: Includes fuses or circuit protection for each channel to prevent damage from faults

• Channels: Likely includes a mix of digital I/O (for solenoid valves, limit switches) and analog I/O (for pressure gauges, thermocouples)

• Connectors: Industrial multi-pin connectors (D-sub, terminal blocks, or MIL-spec types)

• Indicators: Fuse status LEDs, channel activity lights, and possibly diagnostic test points

🛠️ Potential Applications:

• Semiconductor Equipment Repair: Direct replacement or donor board for SSEC vacuum system I/O

• Custom Vacuum System Integration: Repurposing for laboratory, research, or industrial vacuum control racks

• Industrial Automation: Protected I/O module for custom machine control or safety interlock systems

• Technical Training: Instructional tool for semiconductor equipment electronics or industrial I/O systems

• Component Salvage: Source of high-quality industrial fuses, relays, optoisolators, and connectors
