SSEC SOLID STATE EQUIPMENT OCTAL TEMP MONITOR 110010660-G

Product Description

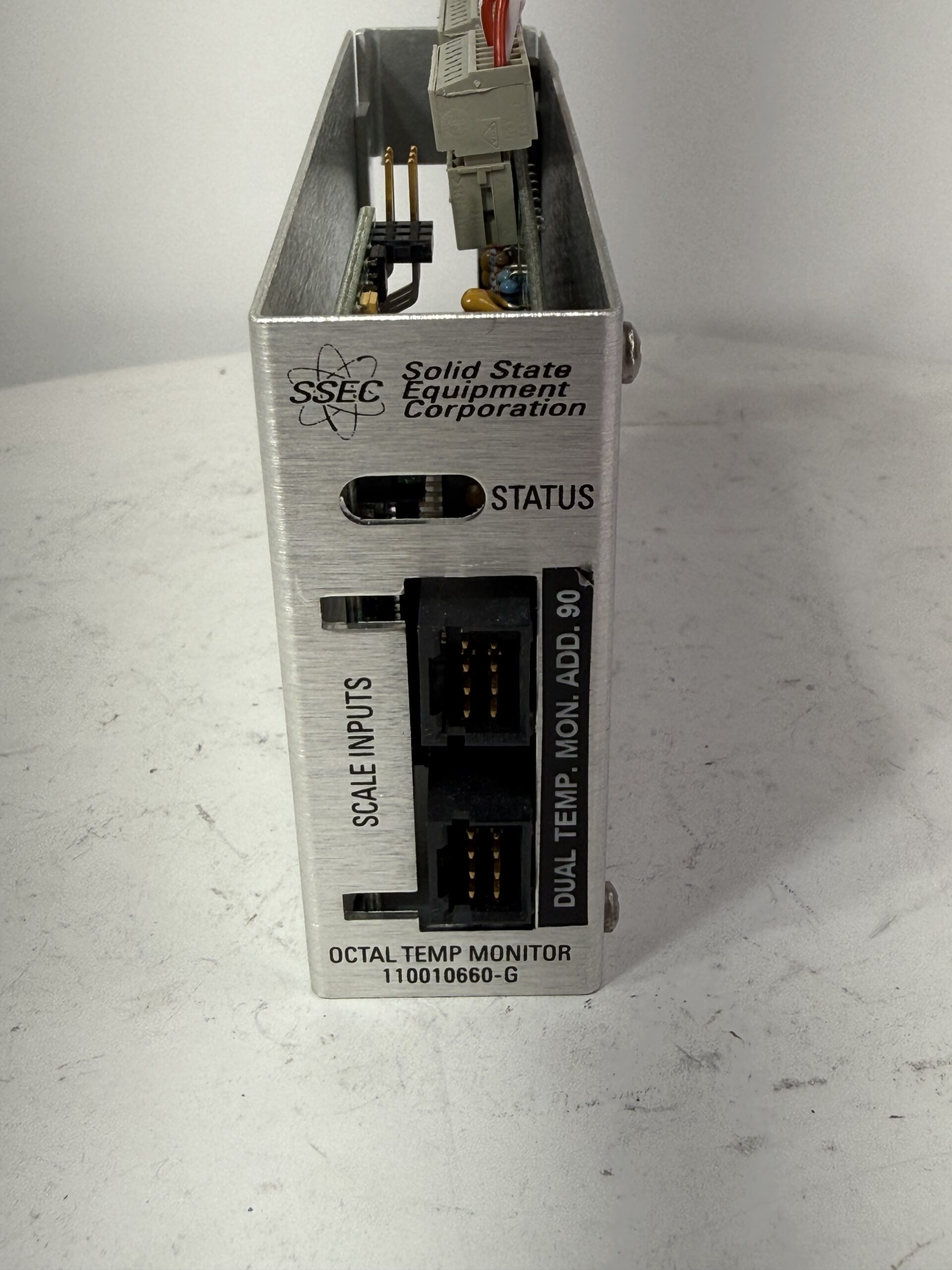

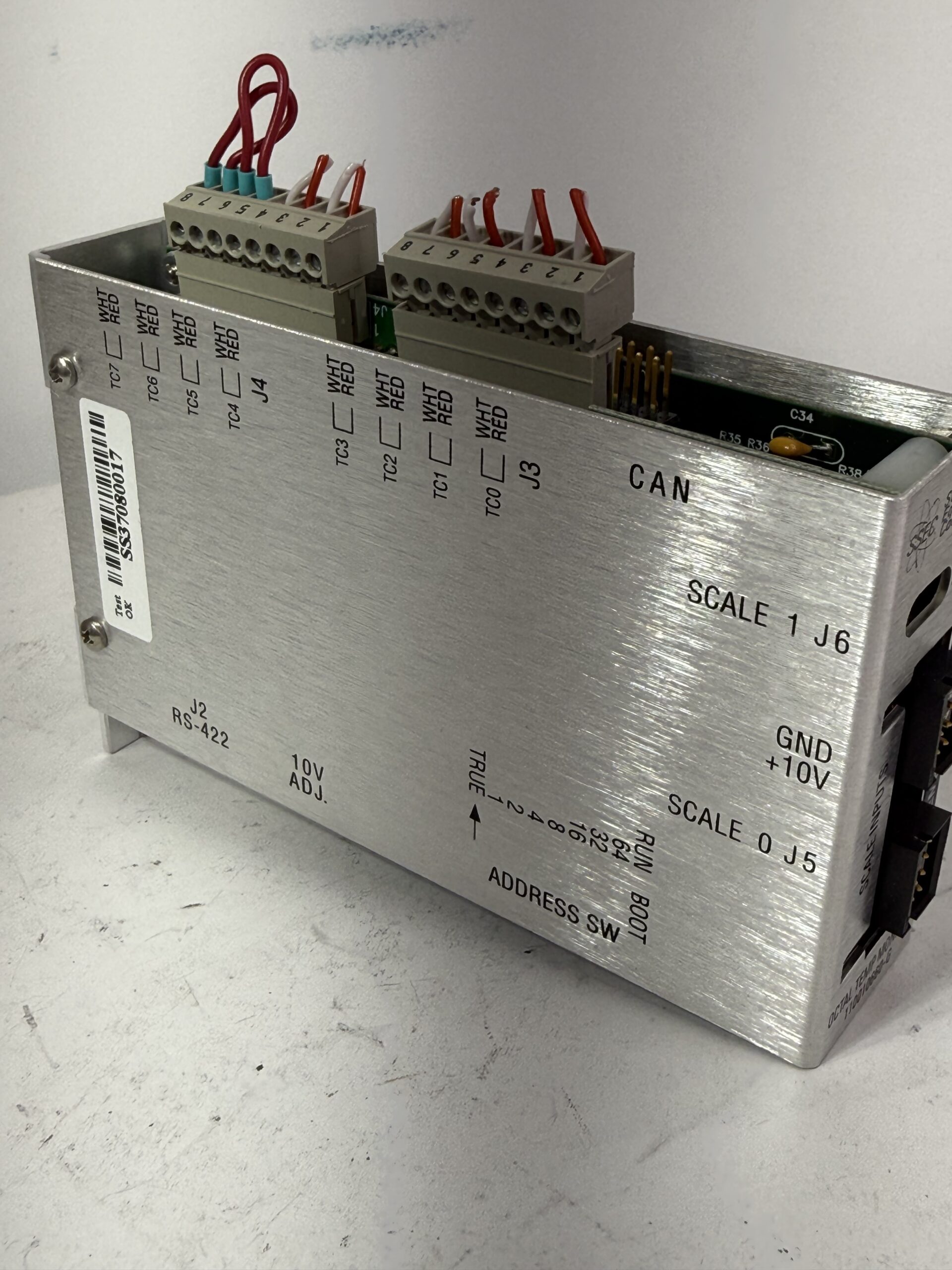

SSEC Solid State Equipment Octal Temperature Monitor 110010660-G – 8-Channel Industrial Sensor Interface

A precision 8-channel temperature monitoring and interface module manufactured by Solid State Equipment Corporation (SSEC), designed for critical thermal monitoring in semiconductor vacuum processing equipment. This unit monitors multiple temperature zones in real-time, providing essential feedback for process control and safety interlocking in tools such as etch systems, CVD/PVD chambers, diffusion furnaces, and load locks.

🔧 Key Specifications & Details:

• Manufacturer: Solid State Equipment Corporation (SSEC)

• Model/Part Number: Octal Temp Monitor 110010660-G (Revision G)

• Channels: 8 independent sensor inputs

• Sensor Compatibility: Likely supports RTD (Pt100) or thermocouple (Type K/J/T) inputs—specific type unknown without documentation

• Communication: Industrial serial interface (RS-485/RS-232 typical) for integration with tool controllers

• Outputs: Relay alarms, analog outputs, or digital status signals per channel

• Indicators: Per-channel LED status, fault indicators, and system ready/error signals

• Connectors: Industrial-grade multi-pin connectors (D-sub, terminal blocks, or ribbon)

• Design: Designed for 24/7 operation in semiconductor fabrication environments

🛠️ Potential Applications:

• Semiconductor Equipment Repair: Direct replacement or donor board for SSEC-equipped vacuum tools

• Custom Process Monitoring: Integration into laboratory vacuum systems, furnace controllers, or thermal research setups

• Industrial Automation: Repurposing for multi-zone temperature monitoring in manufacturing or R&D

• Technical Training: Educational tool for semiconductor equipment maintenance or industrial instrumentation courses

• Component Salvage: High-quality industrial ADCs, isolation amplifiers, relays, and connectors
