Sensor Systems S67‑1575‑69 GPS L1 Antenna
$125.00
SKU: 81628
Military Grade Avionic GPS L1 Antenna
1 in stock

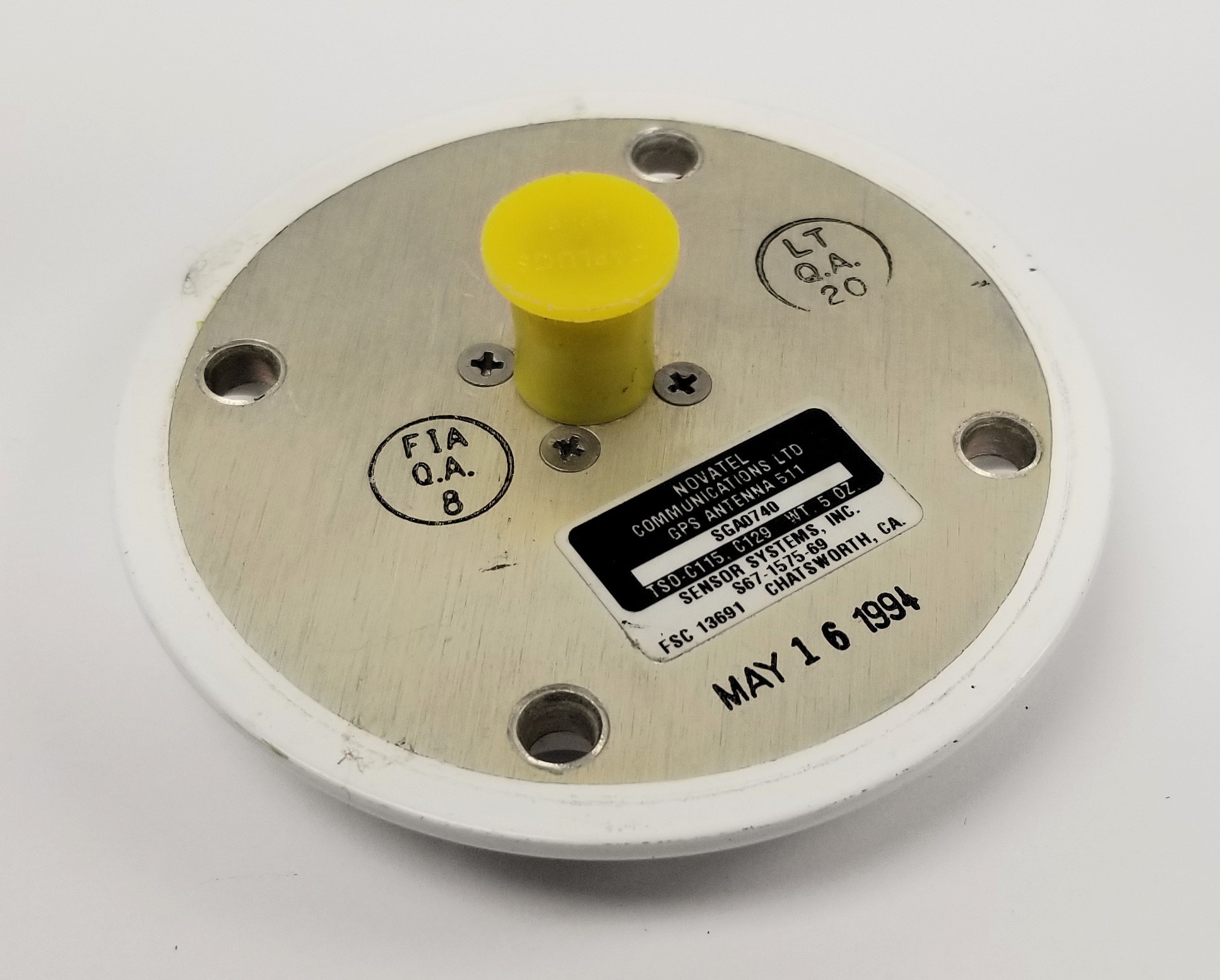

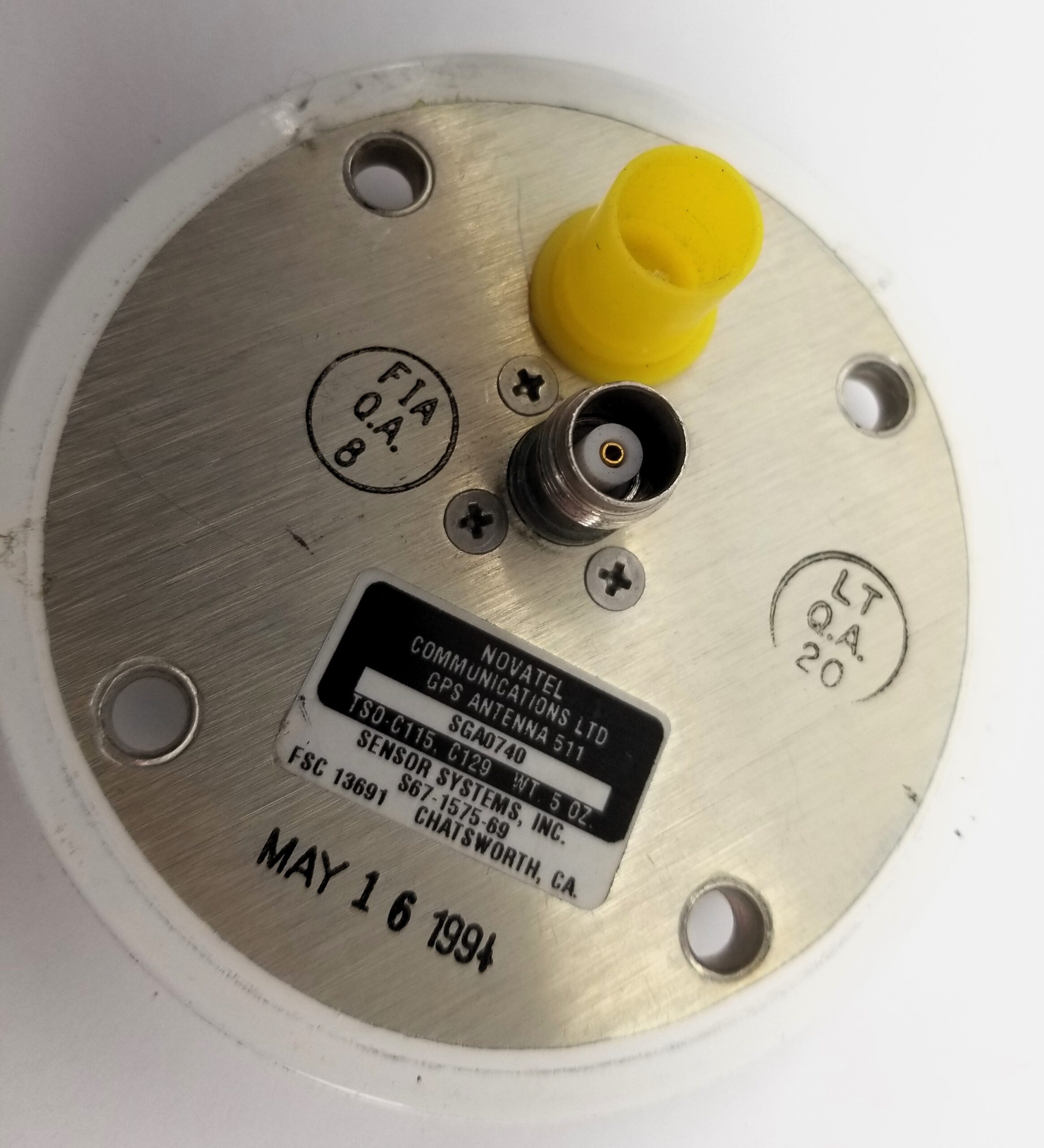

CompareSensor Systems S67‑1575‑69 GPS L1 Antenna. Appears unused (no wear marks, gasket glue etc.). TNC Female connector. No manual, mounting hardware or other accessories. Purchaser responsible for any certification and proper installation. As shown.
📡 Product Overview

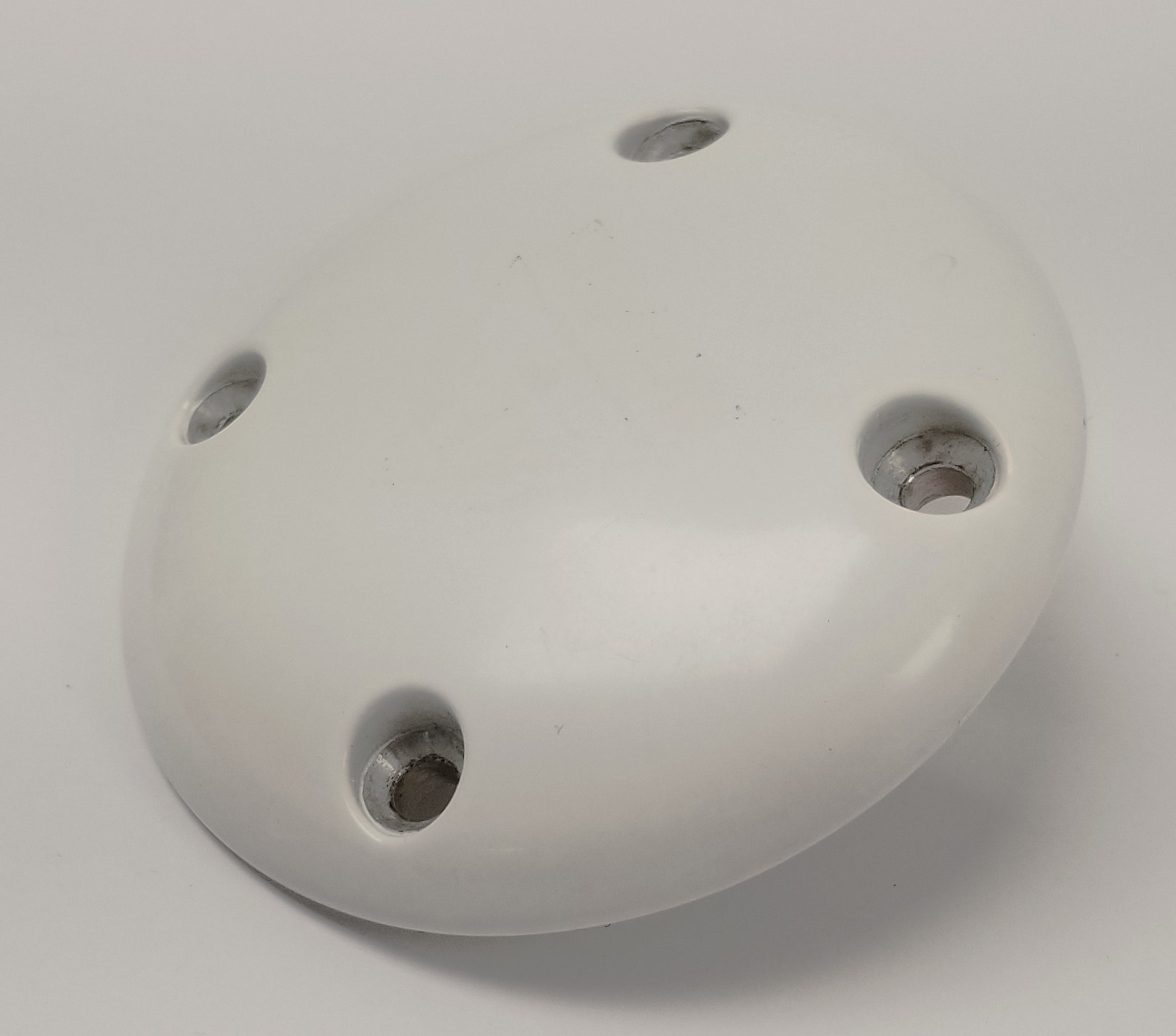

The S67‑1575‑69 is an active GPS antenna operating on the L1 frequency (1575.42 MHz ±2 MHz). It features a spherical radome design for enhanced protection (rain, ice, lightning) and includes an internal 26 dB gain low-noise amplifier (LNA). Power is supplied via the coax connector at +4 to +24 V DC, drawing up to 25 mA.
It meets multiple Federal and Military specifications including FAA TSO C115a & C129, DO-160C, MIL-STD‑810, MIL‑C‑5541, and MIL‑E‑5400.
This compact antenna is designed for airborne, marine, ground‑vehicle, and manpack applications.
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
