Product Description

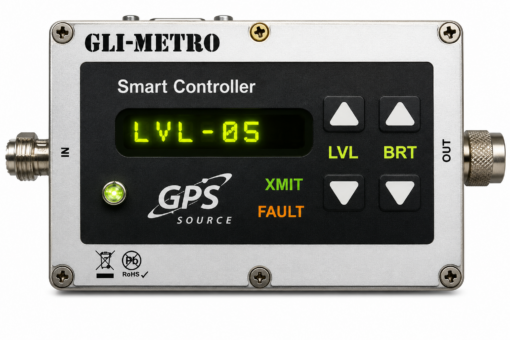

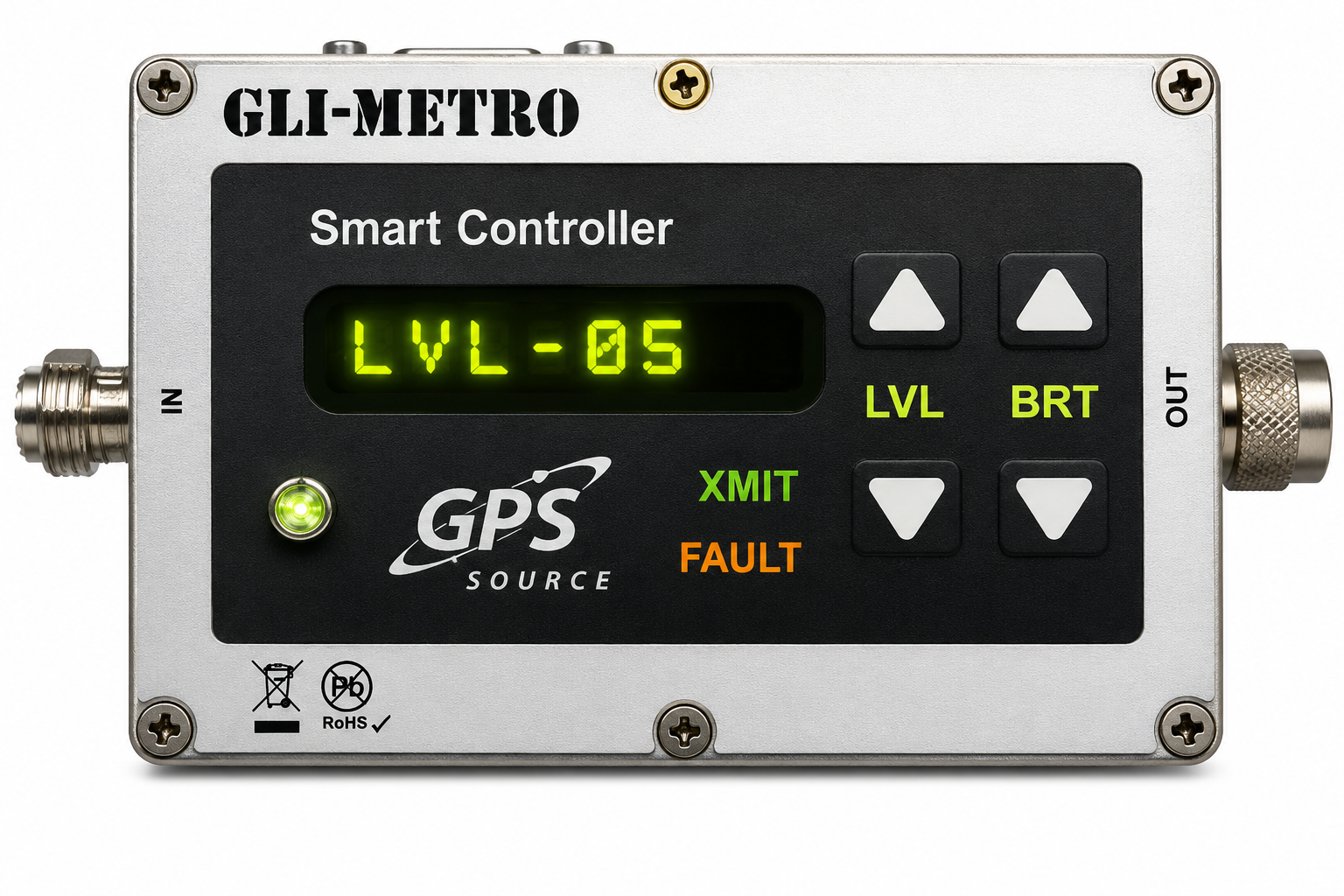

GPS Source METRO “Smart” Amplifier – L1/L2 GPS Signal Controller for Retransmission Systems
(Primary Category: Test Equipment > Network Testing Equipment)
(Secondary Category: Test Equipment > Signal Generators)
This used GPS Source METRO “Smart” Amplifier is a primary signal controller designed for GPS L1 or L1/L2 signal retransmission applications . The METRO provides a calibrated 1 dBm incremental output power control, allowing users to precisely determine the output signal level via push-button control . This reduces the need for multiple antennas and multiple antenna cable runs while lowering maintenance and installation costs .
When used in conjunction with an active GPS receive antenna, the METRO will retransmit GPS signals inside a building, hangar, or any structure where GPS is not normally available . It is also suitable for use in automated test environments or shielded rooms requiring L1 or L1/L2 signal injection .
Condition Note: This unit is untested and sold as-is. This is the amplifier unit only.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | GPS Source (General Dynamics Mission Systems) |
| Type | GPS “Smart” Amplifier / Signal Controller |
| Frequency Options | L1 band only or L1/L2 bands |
| Output Control | 1 dBm incremental calibration |
| Control Interface | Push-button controls |
| Monitoring | Continuous Built-In-Testing (BIT) |
| Diagnostics | Displays fault conditions |
| Protection | Automatic Oscillation Detection |
| Applications | GPS retransmission, indoor coverage, automated test, shielded rooms |
| Power Options | AC or DC (selectable) |
| Connector Options | Multiple RF connector types available |
| Condition | Used – Untested |
Key Features & Benefits
| Feature | Benefit |
|---|---|
| 1 dBm Incremental Output Control | Precise power calibration reduces need for multiple antennas and cable runs |
| Frequency Selectivity | L1 or L1/L2 band options for different GPS requirements |
| Continuous Built-In-Testing (BIT) | Ongoing self-monitoring for reliable operation |
| Diagnostic Capabilities | Displays fault conditions for easy troubleshooting |
| Automatic Oscillation Detection | Prevents system instability from antenna feedback |
| Push-Button Control | Simple, intuitive user interface |
Applications
-
Building/Garage Coverage: Retransmits GPS signals inside structures where GPS is not available
-
Aircraft Hangars: Provides GPS signal for ground testing of avionics
-
Automated Test Environments: Controlled GPS signal injection for production testing
-
Shielded Rooms: L1/L2 signal distribution within EMC/anechoic chambers
-
R&D Facilities: Controlled GPS signal environments for development
-
Service Centers: GPS receiver maintenance and repair facilities
| Weight | 5 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
