Product Description

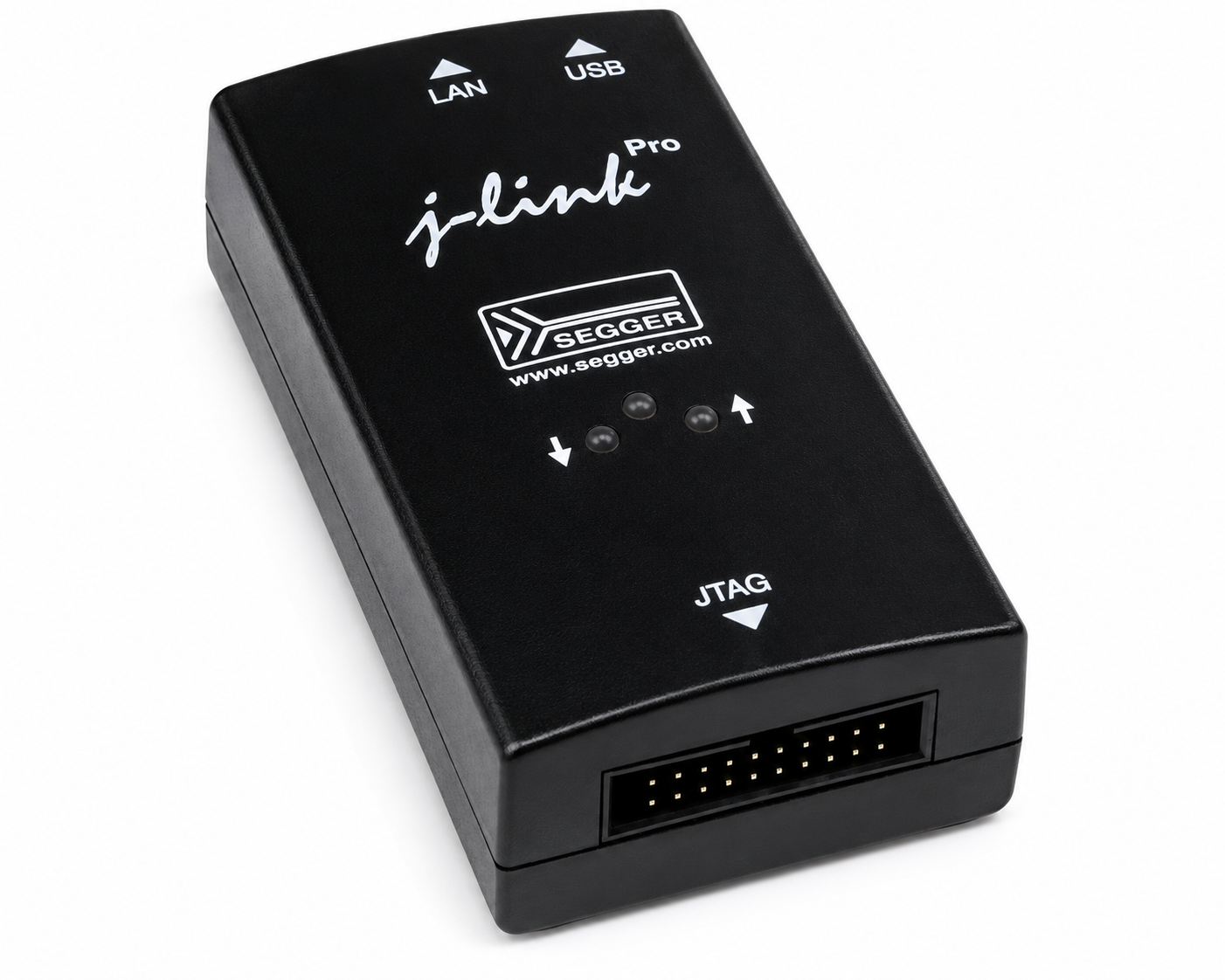

SEGGER J-Link PRO High-Speed Debug Probe – Ethernet and USB JTAG/SWD Emulator for Professional Embedded Development
This used SEGGER J-Link PRO is a professional-grade JTAG/SWD debug probe designed for high-performance embedded system development . As the most widely used line of debug probes on the market, J-Link provides unparalleled speed, extensive feature set, and broad CPU support for ARM, RISC-V, and many other architectures .
The J-Link PRO is the enhanced version of the standard J-Link, adding an Ethernet interface alongside USB connectivity . This allows the debug probe to be used remotely over a network, making it ideal for distributed development teams, large production environments, or scenarios requiring electrical isolation between the host PC and target .
With download speeds up to 4 MB/s and a target interface speed of up to 50 MHz, the J-Link PRO delivers exceptional performance for both debugging and flash programming . It supports unlimited flash breakpoints, Real-Time Transfer (RTT), and includes free licenses for professional tools including Ozone debugger, J-Flash programmer, and RDI/RDDI .
Condition Note: This unit is untested and sold as-is. It is a pull from surplus inventory. No USB cable, ribbon cable, or original packaging are included unless specified. The probe is sold as hardware only; software licenses are included free of charge from SEGGER upon registration .
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | SEGGER Microcontroller GmbH |
| Model | J-Link PRO |
| SKU | 8.12.00 |
| Host Interfaces | USB 2.0 (Hi-Speed), Ethernet (100 Mbit/s) |
| Target Interfaces | JTAG, SWD, cJTAG, ICSP, FINE, SWO |
| Target Interface Speed | Up to 50 MHz |
| Download Speed (RAM) | Up to 4 MB/s |
| SWO Sampling Frequency | Up to 100 MHz |
| Target Voltage Range | 1.2V – 5V |
| Target Supply | 5V @ up to 300 mA (derived from USB) |
| VCOM Speed | Up to 10 MBd |
| Power Measurement | 200 kHz sampling, 50 µA resolution |
| Supported OS | Windows (x86/x64), Linux (x86/x64/Arm), macOS (x86/Apple Silicon) |
| Dimensions | 100 mm x 53 mm x 27 mm |
| Weight | 73 g (without cables) |
| Operating Temp | +5°C to +60°C |
| New Price | $1,280.00 |
| Condition | Untested |
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Ethernet Interface | Remote debugging over network; ideal for distributed teams or isolated targets; electrical isolation from host |
| 4 MB/s Download Speed | Fast flash programming and debugging, reduces development iteration time |
| 50 MHz Target Interface | High-speed communication with target MCU |
| Unlimited Flash Breakpoints | Set unlimited breakpoints in flash memory; essential for debugging code running from flash |
| Real-Time Transfer (RTT) | High-speed bidirectional communication during runtime without stopping the target |
| Power Profiling | Measure power consumption with 200 kHz sampling and 50 µA resolution; ideal for battery-powered devices |
| Broad CPU Support | ARM Cortex-M/R/A, ARM7/9/11, RISC-V (RV32/RV64), Microchip PIC32, Renesas RX, SiLabs 8051 |
| Free Software Suite | Includes J-Flash, Ozone, GDB Server, RDI/RDDI licenses; no additional cost |
| Built-in Web Server | Easy TCP/IP configuration via web interface |
| Monitor Mode | Debug while essential system functions continue running; perfect for real-time applications |
Supported Architectures & Devices
| Architecture | Specific Cores |
|---|---|
| Arm Cortex | Cortex-M0/M0+/M1/M3/M4/M7/M23/M33/M52/M55/M85, Cortex-R4/R5/R8/R52, Cortex-A5/A7/A8/A9/A12/A15/A17/A35/A53/A55/A72 |
| Arm Legacy | Arm7, Arm9, Arm11, SC000 (M0 secure), SC300 (M3 secure) |
| RISC-V | RV32, RV64 |
| Microchip | PIC32MX, PIC32MZ |
| Renesas | RX110, RX111, RX140, RX210, RX21A, RX220, RX610, RX621, RX62G, RX62N, RX62T, RX630, RX631, RX63N, RX63T, RX660, RX671 |
| Cadence | HiFi 1/1s/3/3z/4/5/5s, Fusion F1, Xtensa LX6/LX7 |
| SiLabs | EFM8 (8051 core) |
Software & Tool Suite
| Tool | Function |
|---|---|
| Ozone | Professional debugger with performance analysis, instruction tracing, and code optimization |
| J-Flash | Programming of internal and external flash memories; Windows, Linux, macOS |
| J-Flash SPI | Direct SPI flash programming without target CPU |
| GDB Server | Enables debugging with GDB-based IDEs and Eclipse |
| RDI/RDDI | Remote Debug Interface for ARM development tools |
| J-Link Commander | Command-line interface for probe configuration and testing |
| J-Link Configurator | GUI for managing multiple J-Link probes |
| J-Link Remote Server | Remote debugging over TCP/IP networks |
| J-Mem | Memory viewer for target inspection |
Applications
-
Embedded Software Development: Debugging and programming ARM, RISC-V, and other microcontrollers
-
Remote Debugging: Access target hardware over network with Ethernet interface
-
Production Programming: High-speed flash programming for manufacturing lines
-
Continuous Integration: Automated testing of embedded software
-
Power Optimization: Power profiling for battery-powered IoT devices
-
Firmware Update Validation: Testing and verifying firmware updates
-
Education & Training: Professional-grade debugging for university embedded systems courses
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 9 × 3 in |
