RS1P8 1 inch pillar post

Product Description

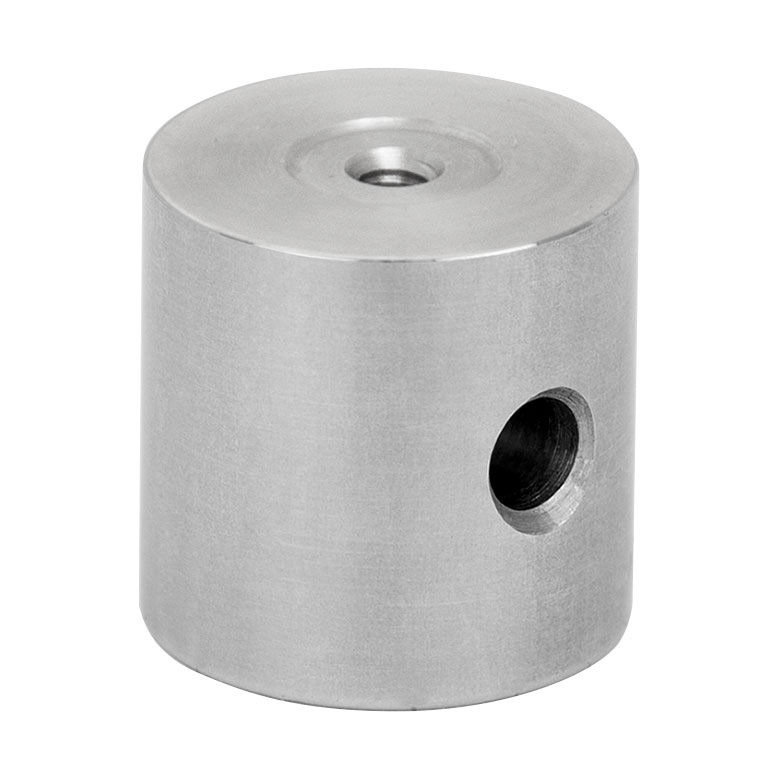

RS1P8 Ø1″ Pillar Post (1″ Height, 8-32 Taps)

This precision pillar post provides compact, rigid support for optical components in space-constrained laboratory and industrial setups.

Key Features:

• Compact Design: 1″ (25.4mm) height for low-profile applications

• Standard Threading: 8-32 taps on both ends for universal compatibility

• Anodized Aluminum: Black Type II finish (specify if Type III)

• Precision Machined: ±0.001″ (0.025mm) diameter tolerance

Specifications:

• Material: 6061-T6 aluminum

• Surface Flatness: <0.0005″ (0.013mm)

• Load Capacity: 10 lbs (4.5kg) vertical

• Thread Depth: 0.25″ (6.35mm) per side

Recommended Pairings:

• PH3 post holder for 90° mounting

• BA2 base adapter for breadboard installation

Applications:

• Laser system micro-positioning

• Compact optical breadboard setups

• Microscope illumination mounts

• Portable measurement devices
