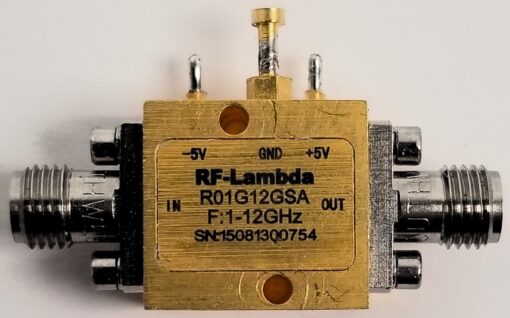

RF-Lambda R01G12GSA Wide Band Low Noise Amplifier 1-12GHz 17dB

RF-Lambda R01G12GSA Wide Band Low Noise Amplifier 1-12GHz 17dB. Carefully/neatly removed from operational decommissioned military receiver equipment. No manual, cables or other accessories. Tested before re-packing.  As shown.

Typical Applications:
• Wireless Infrastructure
• Military and Aerospace Applications
• Test Instrumentation
• Radar Systems
• 5G Wireless Communications
• Microwave Radio Systems
• TR Modules
• Research and Development
• Cellular Base Stations

Features:
• Wide Band Low Noise Amplifier
• Gain 17dB Typical
• P1dB Output Power 18dBm Typical
• Output Saturation Power 20dBm Typical
• Supply Voltage +5V, -5V
• 50 Ohm Matched Input/Output
• Low Noise Figure +2.0dB Typical
• Gain Flatness +/-0.8dB
