Product Description
Radiall 7002-1572-003 SSMC Straight Cable Plug – High-Performance RF Coaxial Connector, DC to 12.4 GHz

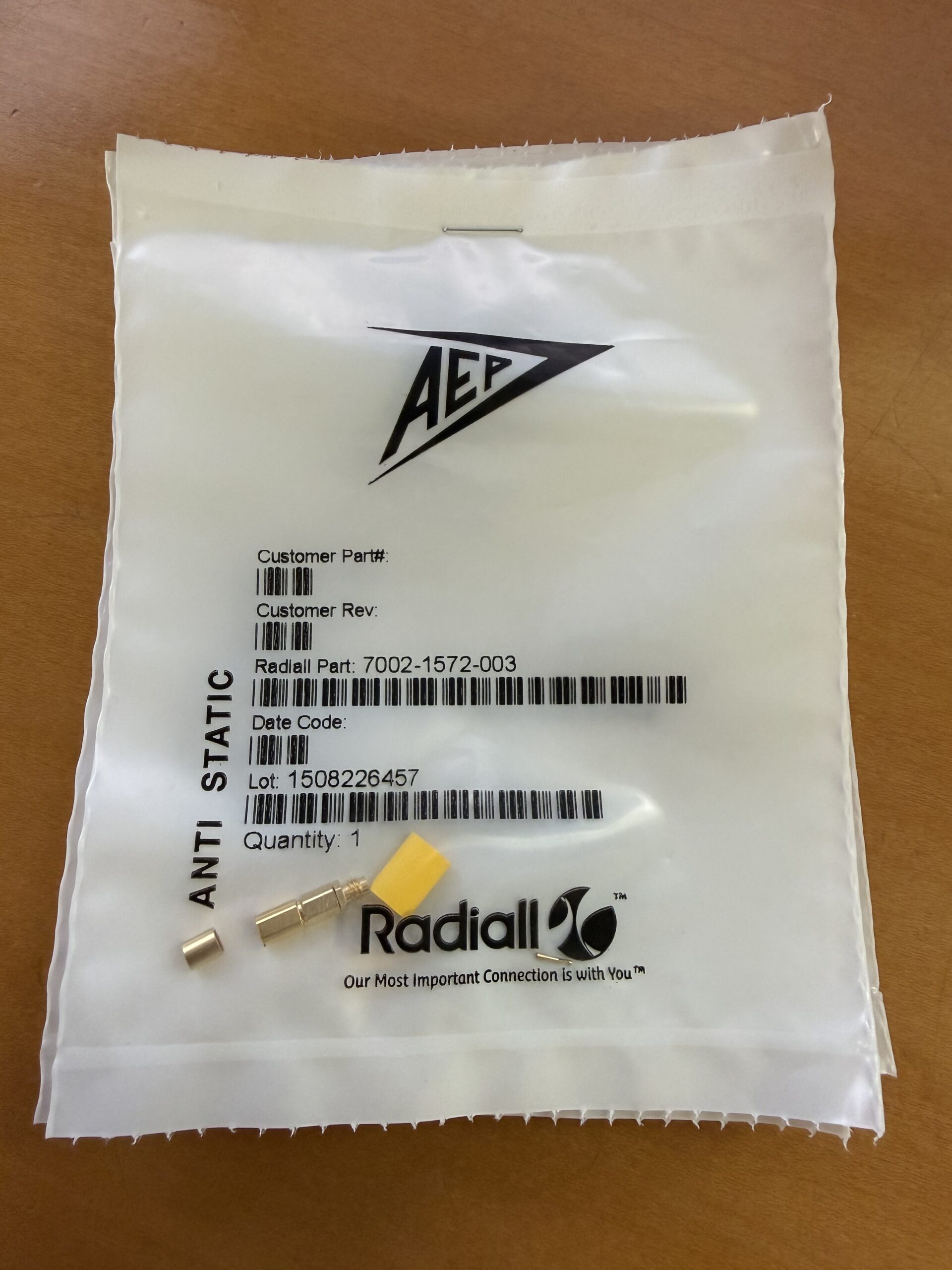

This used Radiall 7002-1572-003 is a precision SSMC (SubMiniature version C) straight cable plug designed for demanding RF applications up to 12.4 GHz . This connector features a female socket contact and utilizes a reliable crimp termination for secure attachment to flexible coaxial cables .
The 50-ohm impedance and threaded coupling make it ideal for high-density applications where vibration resistance is required, commonly found in military, aerospace, and telecommunications systems .
Condition Note: This component is used and sold as-is. No cable or mounting hardware is included unless specified.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Radiall USA, Inc. |
| Part Number | 7002-1572-003 |
| Series | SSMC (SubMiniature version C) |
| Connector Type | Plug, Female Socket |
| Impedance | 50 Ω |
| Frequency Range | DC to 12.4 GHz |
| VSWR (Max) | 1.5:1 |
| Insertion Loss (Max) | 0.3 dB at 1.5 GHz, 0.6 dB at 6 GHz |
| Orientation | Straight |
| Termination Style | Crimp (Cable) |
| Cable Compatibility | RG-174, RG-316, RG-179 |
| Coupling Mechanism | Threaded |
| Body Material | Beryllium Copper |
| Body Plating | Gold |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Insulator Material | PTFE (Teflon) |
| Operating Temperature | -65°C to +165°C |
| MIL Compliance | Meets MIL-PRF-39012 & MIL-STD-348 |
| RoHS | Compliant with Exemption |
Applications
-
Military & Defense Systems: High-reliability communication and radar equipment
-
Aerospace: Avionics and instrument connections
-
Telecommunications: Base station and test equipment interfaces
-
Test & Measurement: Cable assemblies for network analyzers and spectrum analyzers
-
High-Density Applications: SSMC’s smaller size (compared to SMA) allows for tighter packaging
Compatible Cables
This connector is designed for use with the following flexible coaxial cables :
-
RG-174 (Standard flexible coax)
-
RG-316 (MIL-spec, high-temperature version of RG-174)
-
RG-179 (75-ohm, may require verification for RF performance)
Condition
SOLD AS IS
NEW – PULLED FROM SURPLUS
FUNCTIONALITY NOT TESTED
NO CABLE OR MOUNTING HARDWARE INCLUDED
⚠ HANDLING NOTE: SSMC connectors are precision components with delicate gold-plated contacts. Handle with care. Avoid touching the center contact. Ideal for custom cable assembly or as a direct replacement for a damaged unit on an existing cable.
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 3 × 3 in |
