Product Description
Radiall 7010-1511-000 SSMC Right Angle Jack Connector – 50Ω, PCB Through-Hole Mount, DC to 12.4 GHz

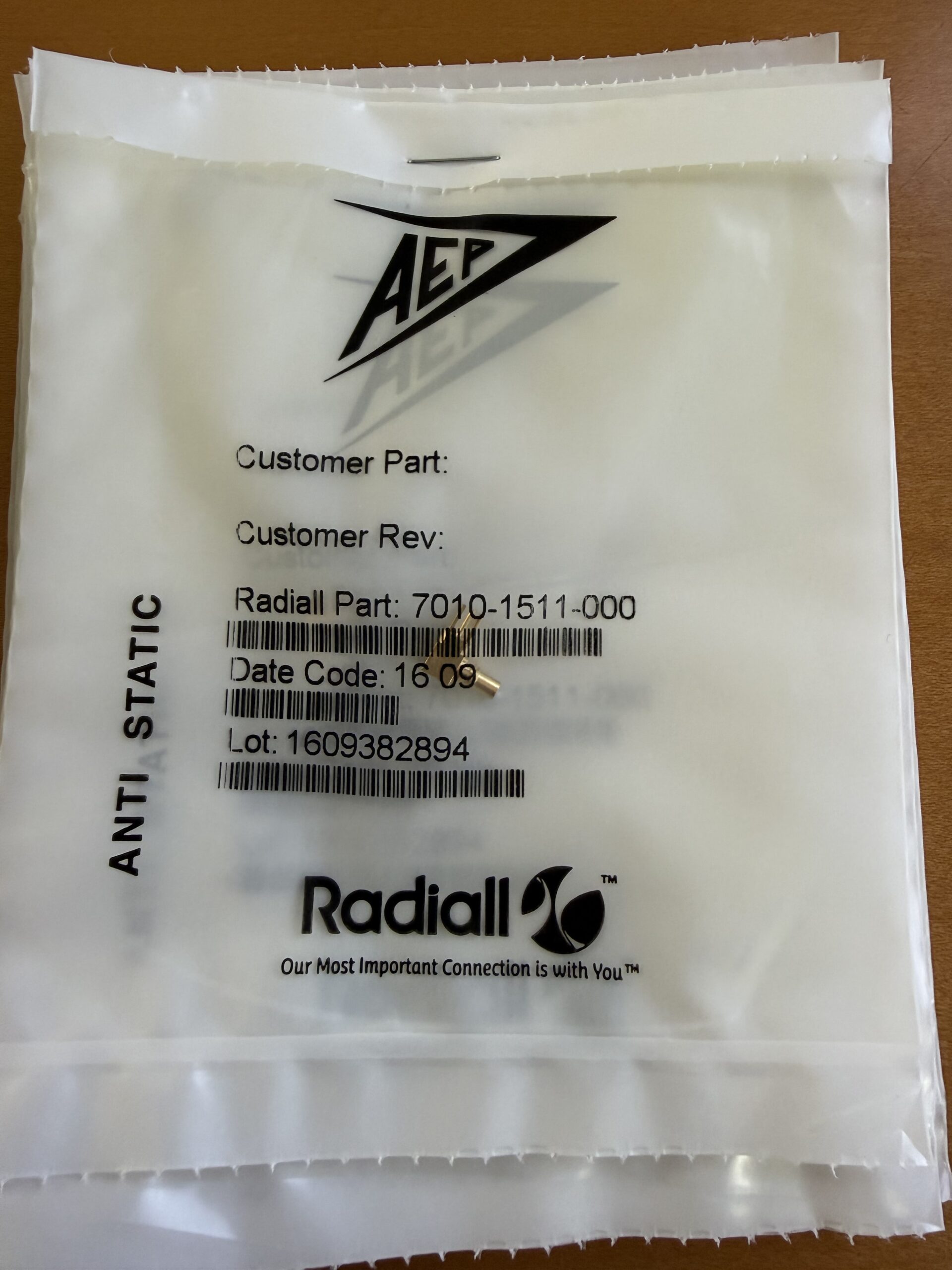

This used Radiall 7010-1511-000 is a precision SSMC (SubMiniature version C) right angle jack connector designed for PCB through-hole mounting . It features a female center contact (jack) and a male pin interface, utilizing a threaded coupling for secure, vibration-resistant connections in high-density applications .
The 50-ohm impedance and DC to 12.4 GHz frequency range make it suitable for demanding RF applications in military, aerospace, and telecommunications systems . This connector complies with MIL-PRF-39012 standards and is built with high-reliability materials .
Condition Note: This component is used and sold as-is. It is an individual unit, not a bulk quantity.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Radiall USA, Inc. |
| Part Number | 7010-1511-000 |
| Series | SSMC (SubMiniature version C) |
| Connector Type | Jack, Male Pin (Female body, male center contact) |
| Impedance | 50 Ω |
| Frequency Range | DC to 12.4 GHz |
| VSWR (Max) | 1.5:1 (typical) |
| Insertion Loss (Max) | 0.3 dB at 1.5 GHz |
| Orientation | Right Angle |
| Termination Style | Solder (PCB Through-Hole) |
| Mounting Type | Board Mount, Panel Mount (locking) |
| Coupling Mechanism | Threaded |
| Body Material | Brass |
| Body Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Insulator Material | PTFE (Teflon) |
| Operating Temperature | -65°C to +165°C |
| Mating Cycles | 500 (min) |
| Voltage Rating | 250 V |
| MIL Compliance | MIL-PRF-39012 |
| RoHS | Compliant |
Applications
-
Military & Defense Systems: High-reliability communication and radar equipment
-
Aerospace: Avionics and instrument connections
-
Telecommunications: Base station and test equipment interfaces
-
Test & Measurement: PCB-mounted interfaces for network analyzers
-
High-Density Applications: SSMC’s smaller size (compared to SMA) allows for tighter packaging
Condition
SOLD AS IS
NEW – PULLED FROM SURPLUS
FUNCTIONALITY NOT TESTED
NO MOUNTING HARDWARE INCLUDED
⚠ HANDLING NOTE: SSMC connectors are precision components with delicate gold-plated contacts. Handle with care. Avoid touching the center contact. Store in anti-static packaging.
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 3 × 3 in |
