Powerside PM2-100-240-00 power quality analyzer

Product Description

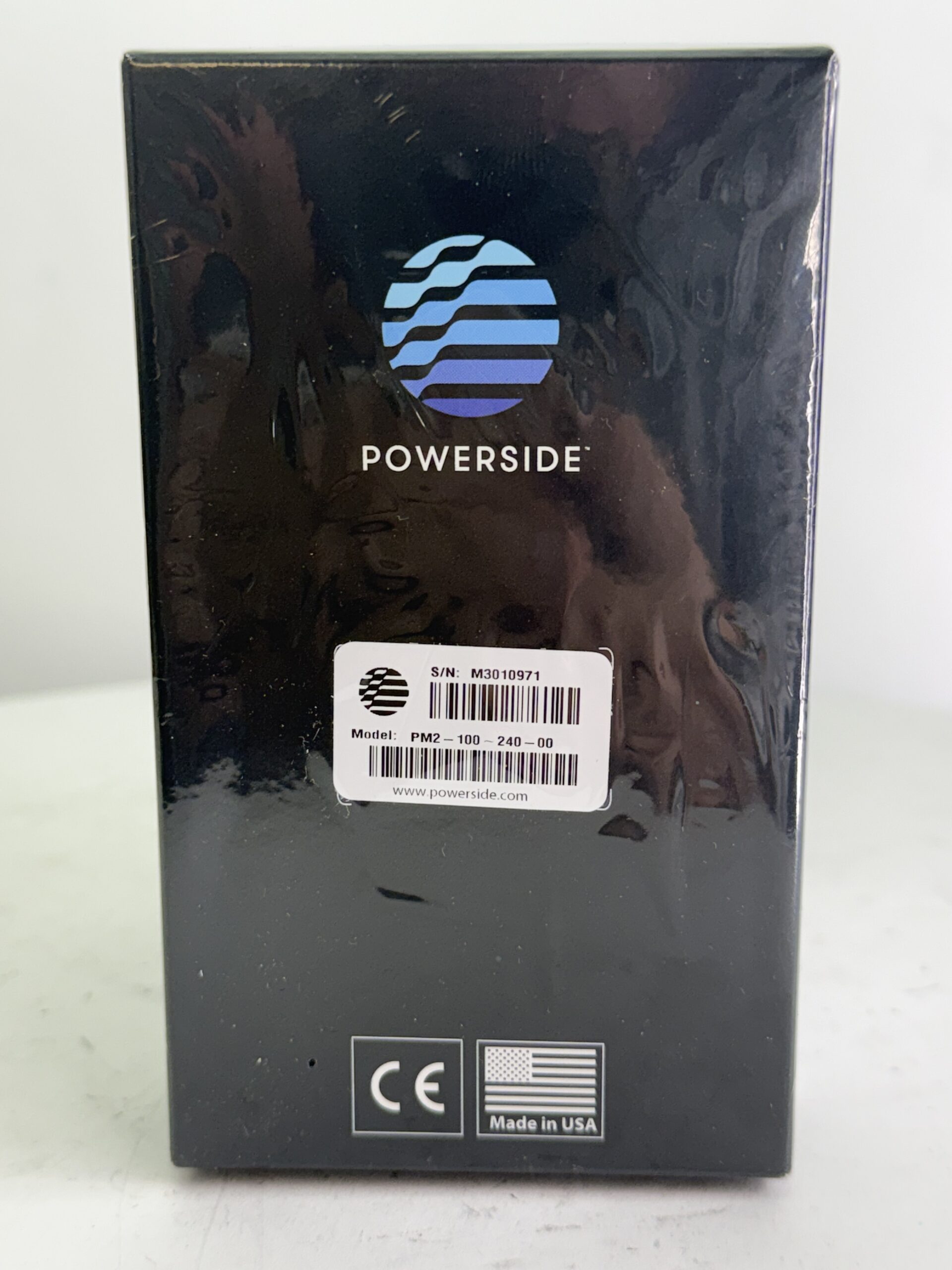

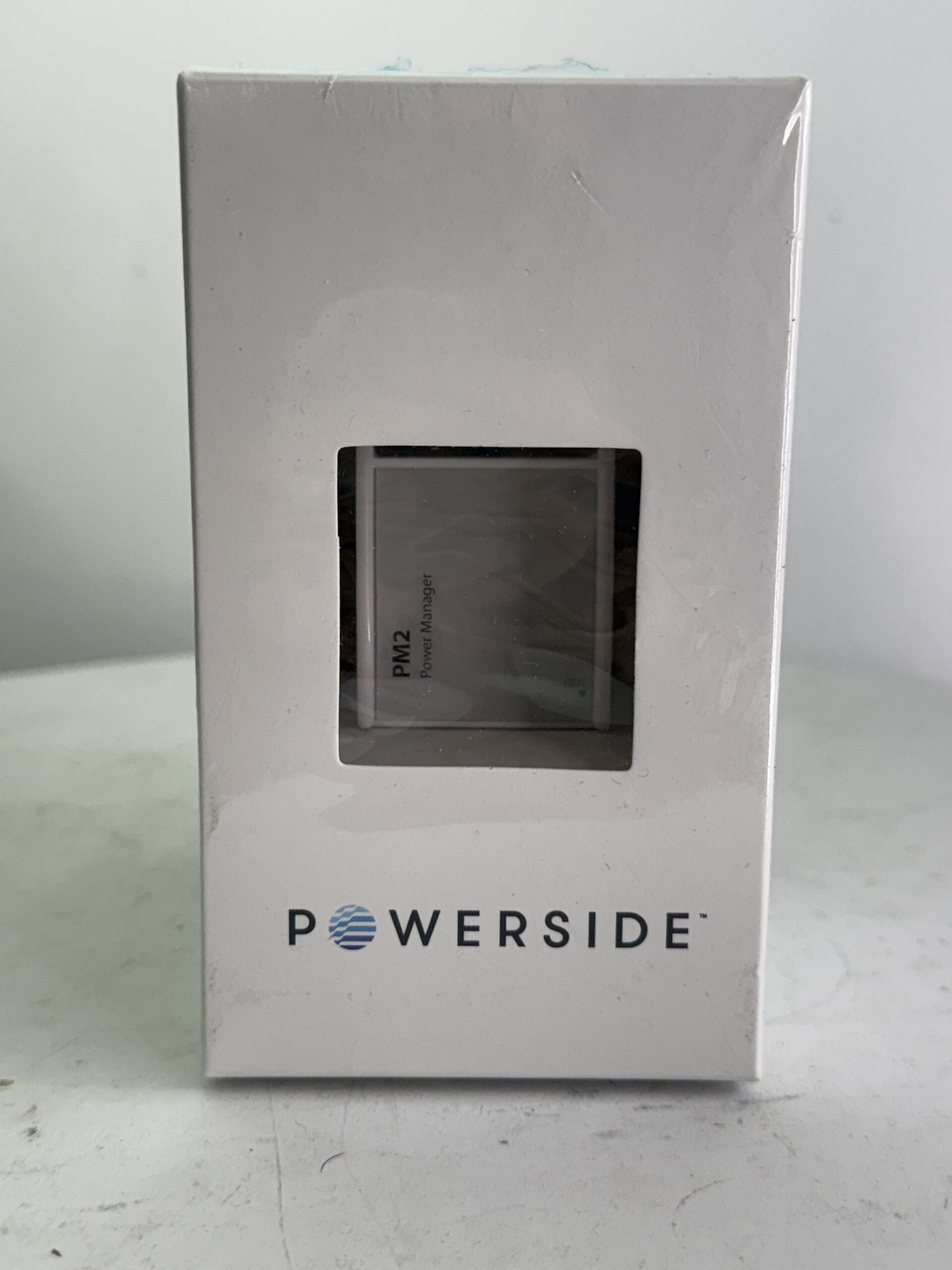

Powerside PM2-100-240-00 – Professional Power Quality & Energy Analyzer

A compact, professional-grade power quality and energy analyzer from Powerside (formerly Electrotek Concepts). The PM2-100-240-00 is designed for permanent or semi-permanent installation in industrial, commercial, and utility facilities to monitor voltage, current, power quality parameters, and energy consumption. With 100A direct current input and 240V direct voltage connection, this unit provides comprehensive power analysis without external transducers.

---

🔍 Key Specifications:

📡 Device Type & Function:

• Manufacturer: Powerside (formerly Electrotek Concepts)

• Model: PM2-100-240-00

• Product Family: PM2 series – compact power quality monitors

• Primary Function: Continuous monitoring of power quality, energy usage, and electrical events

• Typical Application: Feeder monitoring, service entrance analysis, critical load assessment, renewable integration

⚡ Electrical Input Specifications:

• Voltage Input: 240V direct connection (line-to-neutral or line-to-line)

• Current Input: 100A direct input – accepts 100A current transformers or direct connection (verify)

• Channels: 3 voltage + 3 current (typical for 3-phase systems)

• Measurement Parameters:

  • Power Quality: Harmonics (to 50th order), THD, TDD, unbalance, flicker, sags/swells, transients

  • Energy: kWh, kVARh, kVAh, demand, power factor

  • Events: Voltage disturbances, current events, frequency variations

• Sampling Rate: High-speed – captures detailed waveform data

• Compliance: Meets IEC 61000-4-30 Class A (power quality instrumentation standard)

🔧 Connectivity & I/O:

• Communications: Ethernet (standard), optional cellular modem available

• Protocols: Modbus TCP, DNP3, IEC 61850, secure web interface

• Digital I/O: Alarm outputs, pulse inputs for utility meter verification

• Memory: Onboard storage for trend logs, event captures, and waveform recordings

• Display: Optional local display or remote access via web interface

🌡️ Environmental:

• Mounting: DIN-rail or panel mount

• Operating Temp: -20°C to +60°C (industrial range)

• Enclosure: Ruggedized metal housing for industrial environments

• Certifications: UL, CE, RoHS compliant

✅ Condition & Notes:

• Condition: NEW OLD STOCK

---

⚙️ Why This Instrument is Valuable:

🔬 Compact, Permanent Power Quality Monitoring:
Unlike handheld analyzers, the PM2 series is designed for:

• 24/7 continuous monitoring – capture every disturbance

• Industrial-grade reliability – years of unattended operation

• Compliance documentation – verify power quality per EN 50160, IEEE 519

📊 Comprehensive Analysis Capability:

• Harmonic spectrum analysis – identify resonant conditions, filter performance

• Transient capture – record capacitor switching, load events, lightning effects

• Flicker measurement – assess impact of fluctuating loads (arc furnaces, welders)

• Unbalance analysis – detect system asymmetries, motor stress

• Energy consumption tracking – verify utility bills, identify savings

🏭 Direct 100A / 240V Connection:

• No external transducers required for most low-voltage applications

• Simplified installation – direct to panel or switchgear

• Reduced cost – eliminates need for external CTs/PTs in appropriate applications

📡 Remote Monitoring Capability:

• Ethernet connectivity – integrate with facility SCADA or cloud monitoring

• Web interface – access data from anywhere

• Alarm notifications – receive alerts for power quality events

---

🛠️ Applications & Uses (If Functional):

🏭 Industrial Facilities:

• Main incoming monitoring – verify utility power quality

• Feeder analysis – identify problematic loads

• Equipment protection – alarm before disturbances affect production

• Energy management – track consumption, verify savings from efficiency projects

⚡ Commercial Buildings:

• Tenant submetering – allocate energy costs accurately

• Critical load monitoring – data centers, hospitals, labs

• Power factor correction – verify capacitor bank performance

🔋 Renewable Energy:

• Solar farm interconnection – verify power quality at POI

• Wind turbine monitoring – track harmonic injection, flicker

• Battery storage systems – monitor charging/discharging impact

🏛️ Utility Substations:

• Feeder monitoring – distribution-level power quality

• Capacitor bank control – optimize power factor, reduce harmonics

• Fault analysis – capture waveforms during line events

🔧 Education & Research:

• University power labs – study real-world power quality phenomena

• Training – demonstrate power analyzer operation and data interpretation
