Powerside ENV2-THPA-2M-0001 power quality analyzer

Product Description

Powerside ENV2-THPA-2M-0001 – Professional Power Quality & Energy Analyzer Module

A specialized power quality and energy analysis module from Powerside (formerly Electrotek Concepts), designed for permanent installation in industrial facilities, substations, and critical power infrastructure. The ENV2-THPA-2M-0001 monitors voltage, current, harmonics, transients, and power parameters to ensure grid reliability, power quality compliance, and energy efficiency.

---

🔍 Key Specifications & Details:

📡 Device Type & Function:

• Manufacturer: Powerside (formerly Electrotek Concepts)

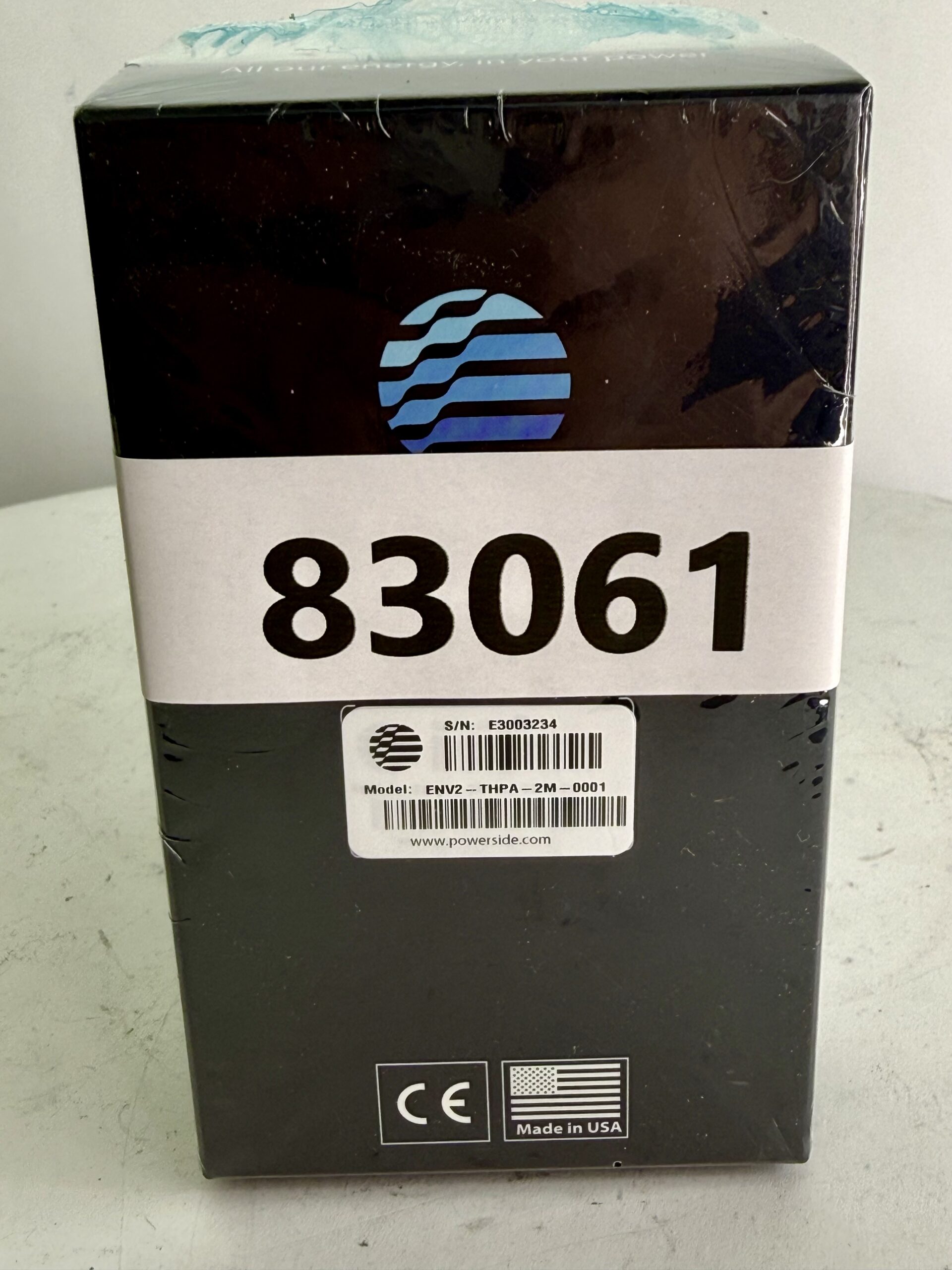

• Model: ENV2-THPA-2M-0001

• Product Family: ENV2 series – permanent-mount power quality analyzers

• Primary Function: Continuous monitoring of power quality parameters, energy consumption, and grid events

• Typical Application: Substation, industrial plant, data center, or commercial facility main feed monitoring

⚡ Electrical Specifications:

• Voltage Inputs: 4 voltage channels (typical) – direct connection up to 600V or via PTs

• Current Inputs: 4 current channels – accepts 5A secondary from CTs or low-voltage sensors

• Measurement Parameters:

  • Power Quality: Harmonics (to 50th+), interharmonics, flicker, unbalance, transients

  • Energy: kWh, kVARh, kVAh, demand

  • Events: Sags, swells, interruptions, transients

• Sampling Rate: High-speed (specifics per datasheet) – captures detailed waveform data

• Compliance: Likely meets IEC 61000-4-30 Class A (power quality instrumentation standard)

🔧 Connectivity & I/O:

• Communications: Ethernet, RS-485, modem options (varies by configuration)

• Protocols: Modbus, DNP3, IEC 61850 (potential options)

• Digital I/O: Status inputs, alarm outputs, pulse outputs (for kWh verification)

• Memory: Onboard storage for trend logs, event captures, and waveform recordings

🌡️ Environmental:

• Mounting: Panel-mount or DIN-rail (verify per model)

• Operating Temp: Industrial range (-20°C to +60°C typical)

• Enclosure: Ruggedized for substation/industrial environments

✅ Condition & Notes:

• Condition: NEW OLD STOCK – UNTESTED

• Origin: Surplus from industrial facility, utility substation, or decommissioned project

• Visual: Unit appears intact – no physical damage, connectors clean. May show light industrial use.

• Critical Disclaimer: No software, cables, manuals, or configuration included. Programming and setup require manufacturer tools/knowledge.

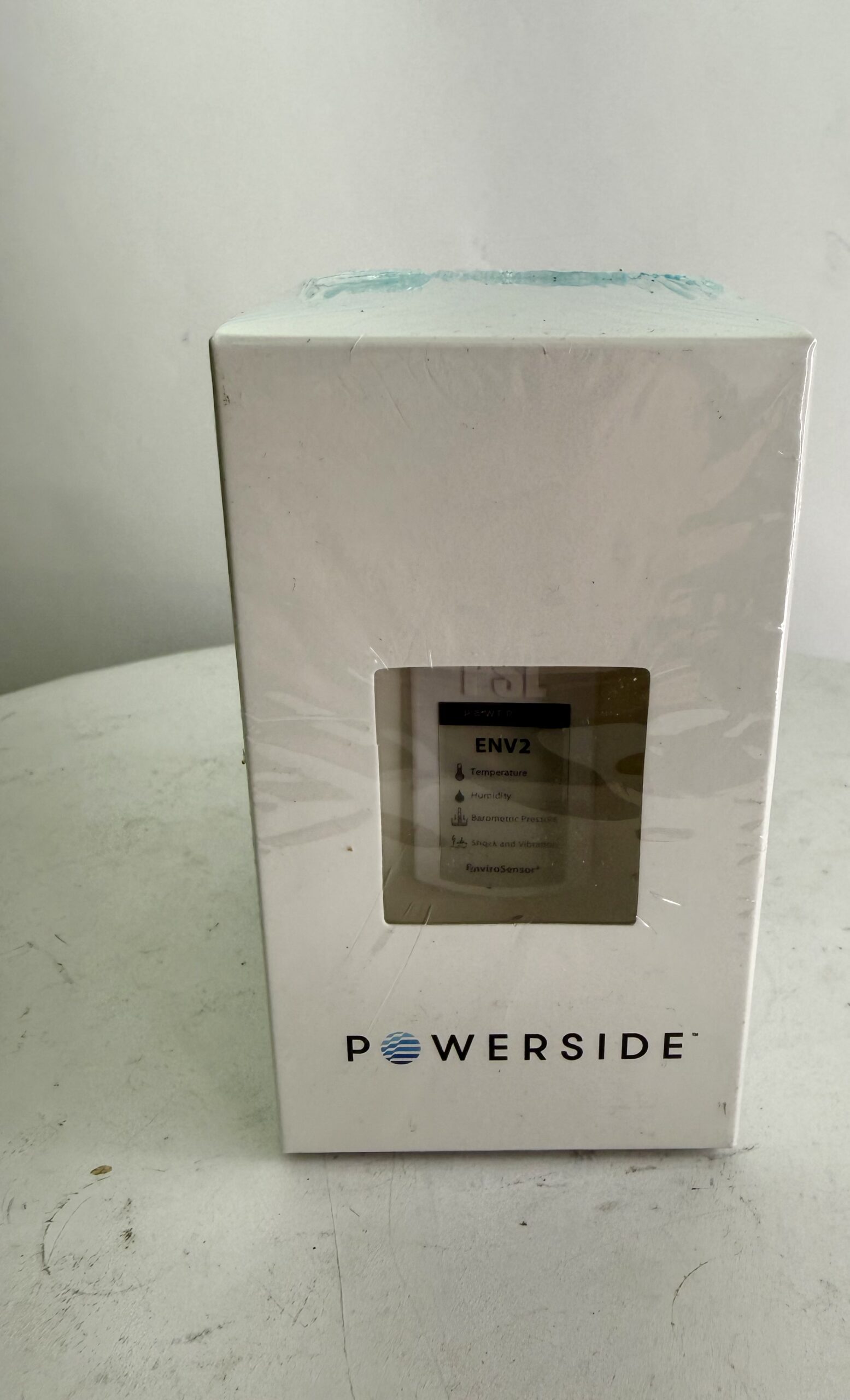

• Includes: (1) Powerside ENV2-THPA-2M-0001 module only

---

⚙️ Why This Instrument is Significant:

🔬 Permanent Power Quality Monitoring:
Unlike handheld analyzers, the ENV2 series is designed for:

• 24/7 continuous monitoring – capture every event, trend over time

• Substation-grade reliability – years of unattended operation

• Compliance documentation – verify power quality per EN 50160, IEEE 519

📊 Comprehensive Analysis Capability:

• Harmonic spectrum analysis – identify resonant conditions, filter performance

• Transient capture – record lightning strikes, capacitor switching, load switching

• Flicker measurement – assess impact of fluctuating loads

• Unbalance analysis – detect system asymmetries

🏭 Industrial & Utility Applications:

• Verify incoming power quality at facility service entrance

• Monitor sensitive loads – data centers, semiconductor fabs, hospitals

• Troubleshoot power disturbances – correlate events with production issues

• Substation automation – integrate with SCADA systems

---

🛠️ Potential Applications (If Functional):

🔋 Utility Substations:

• Feeder monitoring – track power quality at distribution level

• Capacitor bank control – optimize power factor, reduce harmonics

• Fault analysis – capture waveforms during line events

🏭 Industrial Facilities:

• Main incoming monitoring – verify utility compliance with service agreement

• Critical process protection – alarm before disturbances affect production

• Energy management – track consumption patterns, identify savings opportunities

⚡ Data Centers:

• UPS input/output monitoring – verify power quality to critical loads

• Generator testing – capture transient response during transfer

• Compliance reporting – document uptime and power quality for SLAs

🔄 Renewable Energy:

• Solar farm interconnection – verify power quality at POI

• Wind turbine monitoring – track harmonic injection, flicker

🔧 Education & Research:

• University power labs – study real-world power quality phenomena

• Training – demonstrate power analyzer operation and data interpretation
