Piezosystem Jena NV 40/3 piezo amplifier
Original price was: $1,000.00.$800.00Current price is: $800.00.
SKU: 83378
5 in stock
CompareProduct Description

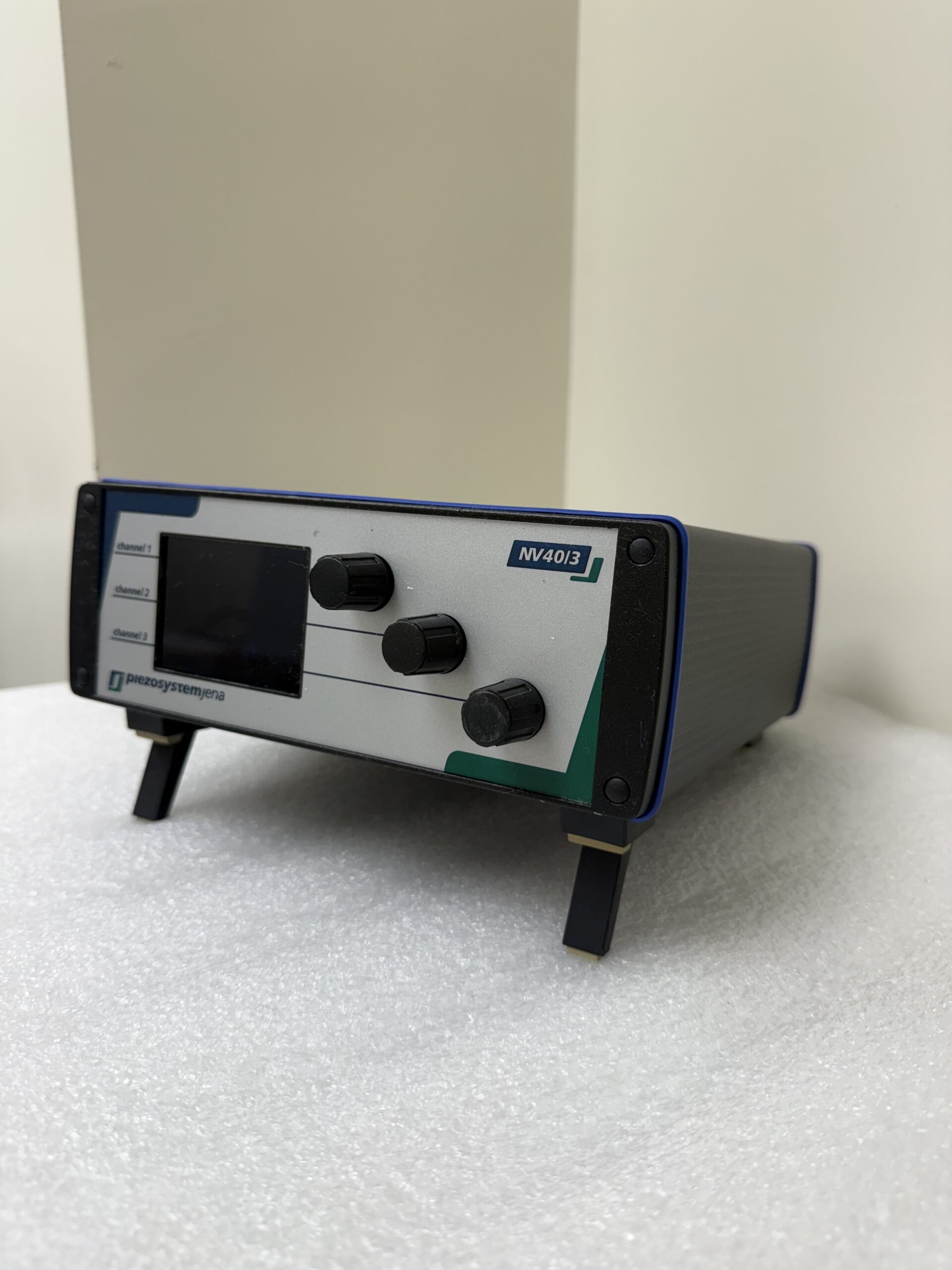

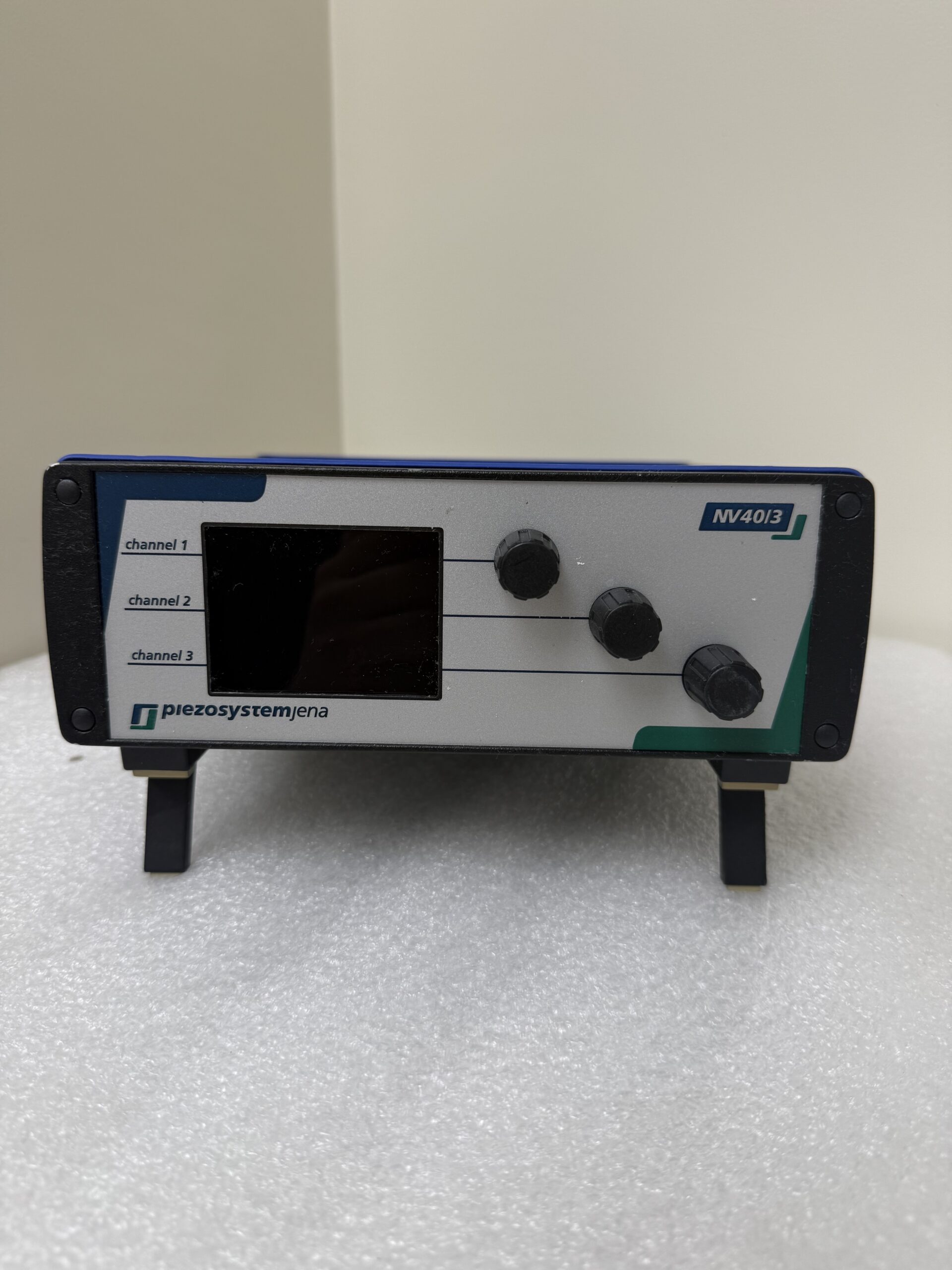

Piezosystem Jena NV 40/3 Analog 3-Channel Piezo Voltage Amplifier – High-Precision Driver for Nanopositioning Systems
This used Piezosystem Jena NV 40/3 is a precision 3-channel piezoelectric voltage amplifier designed for controlling low-voltage piezo actuators and nanopositioning stages . The amplifier provides independent control of up to three piezo elements with an output voltage range of -20 to +130 V and a continuous output current of 40 mA per channel .
With an ultra-low voltage noise of <0.3 mVrms at 500 Hz, the NV 40/3 achieves sub-nanometer positioning resolution, making it ideal for applications in atomic force microscopy, interferometry, precision alignment, and semiconductor inspection . The unit features a dimmable TFT display, analog modulation inputs, and computer control via USB and RS232 interfaces .
The NV 40/3 incorporates special protective circuits including soft-start to prevent voltage spikes during power-on/off, short-circuit protection, and thermal overload protection for actuator-safe operation .
Condition Note: This unit is untested and sold as-is. This listing is for the amplifier unit only. Complete systems typically include power supply, cables, and software.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Piezosystem Jena GmbH |
| Model | NV 40/3 |
| Part Number | E-101-20 |
| Channels | 3 independent channels |
| Output Voltage | -20 V to +130 V |
| Output Current (continuous) | 40 mA per channel |
| Output Current (peak) | 100 mA per channel (short duration) |
| Voltage Noise | < 0.3 mVrms at 500 Hz |
| Gain | 15 (approx.) |
| Input Voltage Range | 0 to 10 V analog |
| Monitor Output | 0 to 10 V (1:10 scaled) |
| Interfaces | USB 2.0, RS232 |
| Display | Dimmable TFT graphic display |
| Power Supply | 24 VDC (external supply included in new shipments) |
| Dimensions | Compact bench-top housing |
| Operating Temperature | +5°C to +40°C |
| Cooling | Internal fan (controlled) |
| Condition | Used – Untested |
Key Features & Benefits
| Feature | Benefit |
|---|---|
| 3 Independent Channels | Control up to three piezo actuators simultaneously for multi-axis positioning |
| -20 to +130 V Output | Wide voltage range compatible with most low-voltage piezo actuators |
| <0.3 mVrms Noise | Enables sub-nanometer positioning resolution |
| Soft-Start Protection | Prevents voltage spikes that could damage delicate piezo elements |
| Analog Modulation Input | External control via 0-10 V signal for integration with external controllers |
| Monitor Output | Real-time voltage monitoring for closed-loop applications |
| USB & RS232 Interfaces | Remote control and automation via PC |
| Dimmable TFT Display | Clear status readout (output voltage, mode, internal temperature) |
| Compact Design | Suitable for R&D, engineering, and production environments |
Applications
-
AFM / SPM Systems: Driving piezoelectric scanners for atomic force and scanning probe microscopy
-
Interferometry: Precision path-length control for optical metrology
-
Laser Beam Steering: Fine positioning of mirrors and optical elements
-
Active Vibration Cancellation: Driving piezo actuators for real-time vibration compensation
-
Semiconductor Inspection: Precision wafer positioning and alignment
-
Micro-Assembly: High-precision positioning of components
-
Adaptive Optics: Deformable mirror control for wavefront correction
-
Precision Alignment: Fiber-optic alignment and coupling
-
Research & Development: General-purpose piezo actuator driving in university labs

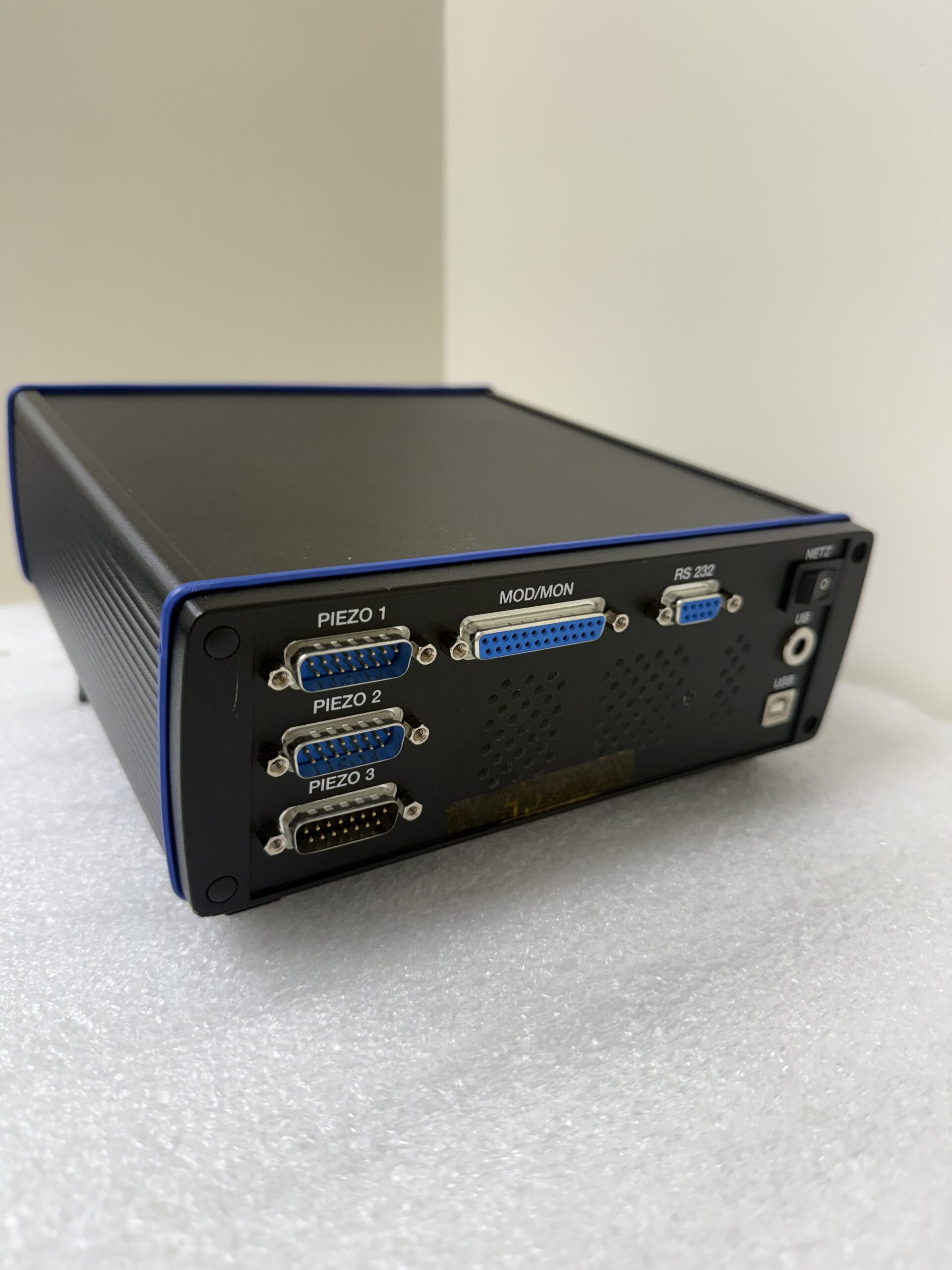

Input / Output Connectors (Rear Panel)
| Connector | Type | Function |
|---|---|---|
| Piezo Actuator | D-SUB 15-pin (female) | Connects to 3 piezo actuators |
| MOD/MON | D-SUB 25-pin (female) | Analog modulation input (0-10V) and monitor output (0-10V) |
| RS232 | D-SUB 9-pin (female) | Serial communication |
| USB | USB Type B | USB 2.0 interface |
| Power Input | DC Jack (5.5mm) | 24 VDC input |
Display Information
| Display Element | Information Shown |
|---|---|
| Channel Status | Active channel(s) indication |
| Output Voltage | Real-time voltage per channel (V) |
| Set Voltage | Target voltage per channel (V) |
| Mode | Operation mode (open/closed loop) |
| Temperature | Internal amplifier temperature (°C) |
| Interface Status | USB/RS232 connection status |
| Weight | 6 lbs |
|---|---|
| Dimensions | 12 × 10 × 6 in |
