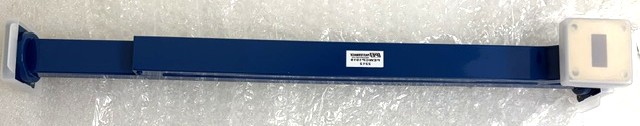

Pasternack PEWCP1019 WR-90 Directional Waveguide Broadwall Coupler

he Pasternack PEWCP1019 is a WR-90 directional waveguide broadwall coupler designed for X-band microwave applications from 8.2 GHz to 12.4 GHz. It is commonly used in radar systems, microwave radio, satellite communications, attenuation measurements, and RF test benches.

Key Specifications

• Frequency Range: 8.2 GHz to 12.4 GHz
• Waveguide Size: WR-90
• Coupling Level: 30 dB nominal
• Directivity: 40 dB typical
• Insertion Loss: 0.15 dB typical
• VSWR: 1.05:1 typical
• Flange Type: UG-39/U Square Cover Flange
• Construction: Painted copper alloy body and flanges

Common Applications

• RF power monitoring
• Signal sampling
• Source leveling
• Radar and satellite systems
• Microwave laboratory testing
• Frequency monitoring with minimal main-line loss
