Product Description

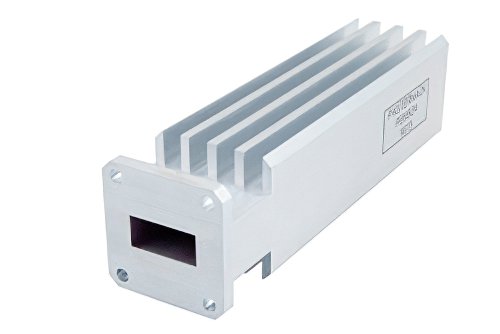

Pasternack PE6824 WR-90 Waveguide Load – 90W High Power Termination for X-Band Applications
This used Pasternack PE6824 is a high-power WR-90 waveguide load (termination) designed to absorb RF energy in the X-band frequency range (8.2 GHz to 12.4 GHz) . It is typically used to terminate unused ports in waveguide systems, providing a matched 50-ohm load to prevent signal reflections .
The unit features a maximum input power rating of 90 Watts and a maximum VSWR of 1.07:1, ensuring excellent impedance matching and low reflected power . The aluminum body provides lightweight yet durable construction for demanding laboratory and industrial environments.
Condition Note: This unit is untested and sold as-is. No waveguide hardware is included unless specified.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pasternack |
| Product ID | PE6824 |
| Type | Waveguide Load / Termination |
| Waveguide Size | WR-90 |
| Minimum Frequency | 8.2 GHz |
| Maximum Frequency | 12.4 GHz |
| Frequency Band | X-Band |
| Maximum Input Power | 90 Watts |
| Impedance | 50 Ohms |
| Max VSWR | 1.07:1 |
| Body Material | Aluminum |
| New MSRP | $1,990.00 (quantity 1) |
| Condition | Used – Untested |
Applications
-
Waveguide System Termination: Absorbs RF energy at unused ports in test setups
-
Radar Systems: Matched load for X-band radar transmitters and receivers
-
Satellite Communications: Termination for ground station waveguide runs
-
Test Laboratories: Load for amplifier testing and VSWR measurements
-
Research & Development: Component characterization in university and defense labs
Condition
NEW– PULLED FROM SURPLUS
FUNCTIONALITY NOT TESTED
NO MOUNTING HARDWARE OR WAVEGUIDE GASKETS INCLUDED
⚠ WAVEGUIDE NOTE: This load is designed for WR-90 waveguide (standard X-band). Compatible waveguide components require UG-39/U or CPR-90 flanges.
| Weight | 3 lbs |
|---|---|
| Dimensions | 9 × 6 × 3 in |
