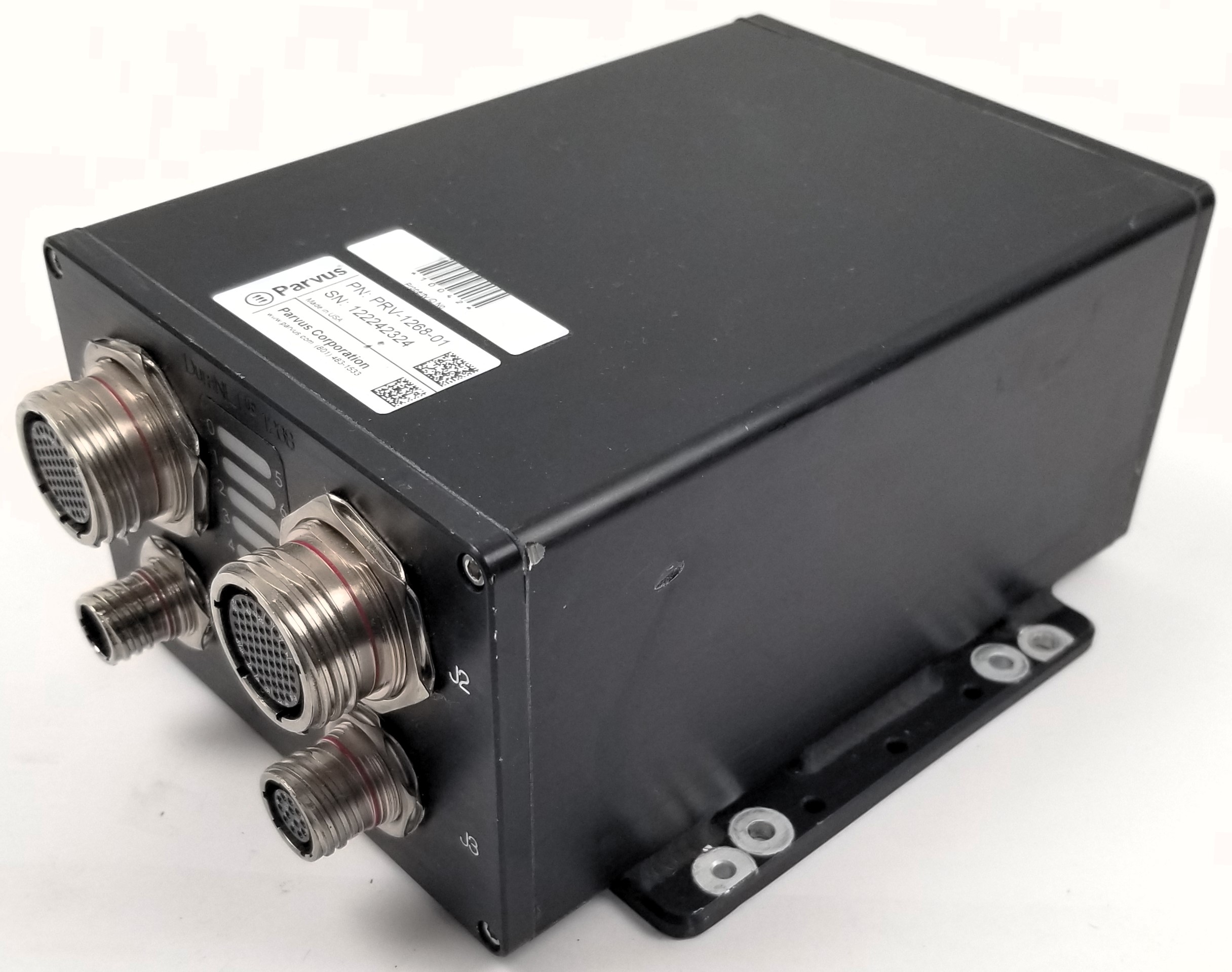

Parvus PRV-1268-01 Military Grade Ruggedized 10-Port Gigabit Ethernet Switch

Parvus PRV-1268-01 Military Grade Ruggedized 10-Port Gigabit Ethernet Switch. Carefully removed in operational condition. No manual, cables, software or other accessories. Purchaser responsible for compatibility, any updates, proper installation and certification if required. As shown.

• 10-Port Gigabit Ethernet Switch
• MIL-DTL-38999 / Tactical Fiber Optic Support
• MIL-810G, DO-160G, MIL-461F Qualified
• -40ºC to +71ºC Fanless Operation
• MIL-704F & 1275D Power Protection
• Small Form Factor: ~5 lbs Weight, <4”Height
• Data Zeroization Support for Secure Data
• Web GUI or CLI Management

• Civil and Military Tactical In-Vehicle Networking
• 24/28V Vehicle/Aircraft Installations
• Network-Centric Operations / Situational Awareness
• Layer 2 Switching in Local Area Network (LAN)

PORTS: Ethernet – 10x 10/100/1000Mbps Gigabit Ethernet Switch Ports;
Management – 1x Serial, 1x 10/100 Ethernet Management/Console Ports for
Configuration Management; Interfaces: MIL-DTL-38999 Copper Ethernet on
Front Panel and Optional Tactical Fiber Optic Media Assembly (TFOCA II) on
Rear
RUGGED SMALL FORM FACTOR: Only ~5 lbs Weight, < 4” Height;
Passively Cooled, Aluminum Chassis with Anodize Coating, MIL-DTL-38999 /
TFOCA II Connectors, Ingress Protection from Sand, Dust, Water (IP67-like)
MIL-STD QUALIFIED: Tested to MIL-STD-810G (Shock, Vibration, Temp,
Humidity, Altitude, Immersion), DO-160G (Temperature, Altitude), MIL-STD
461F (Radiated & Conducted Emissions and Susceptibility)
MANAGEMENT: Unmanaged or Lightly Managed Switch Configurations –
Link Speed, Duplex Mode, and Flow Control on Per-Port Basis; Port
Monitoring; RS-232 Console w/ Command Line Interface (CLI); Out-of-Band
10/100 Ethernet Port, Web Browser GUI; Telnet Server (for Remote CLI
Management over Ethernet)
VLAN: Port-Based and 802.1Q Tagged Virtual Local Area Networks (VLAN)
QoS/CoS: Class of Service (CoS) / Quality of Service (QoS) Traffic
Prioritization; Four Traffic Class Queues; Priority Determined by Port, 802.1p
Tagged Frames, IPv4 TOS/Diff-Serv, IPv6 TC
REDUNDANCY / FAULT TOLERANCE: Spanning Tree Protocol (STP)
Support; Rapid Spanning Tree Protocol (RSTP)
DECLASSIFICATION: Data Zeorization Support for Secure Data

The DuraNET® 1268 is a rugged Layer 2 Gigabit Ethernet switch subsystem equipped
with ten (10) triple-speed 10/100/1000Mbps ports for connecting IPv4 and IPv6
compatible sensors and computing devices onboard demanding tactical network-centric
(un)manned vehicle and aircraft platforms. The unit has been qualification tested for
extreme MIL-STD-461F EMI/EMC and MIL-STD-810G thermal, shock, vibe, humidity,
altitude, and ingress conditions, as well as RTCA/DO-160G airworthiness tests for low

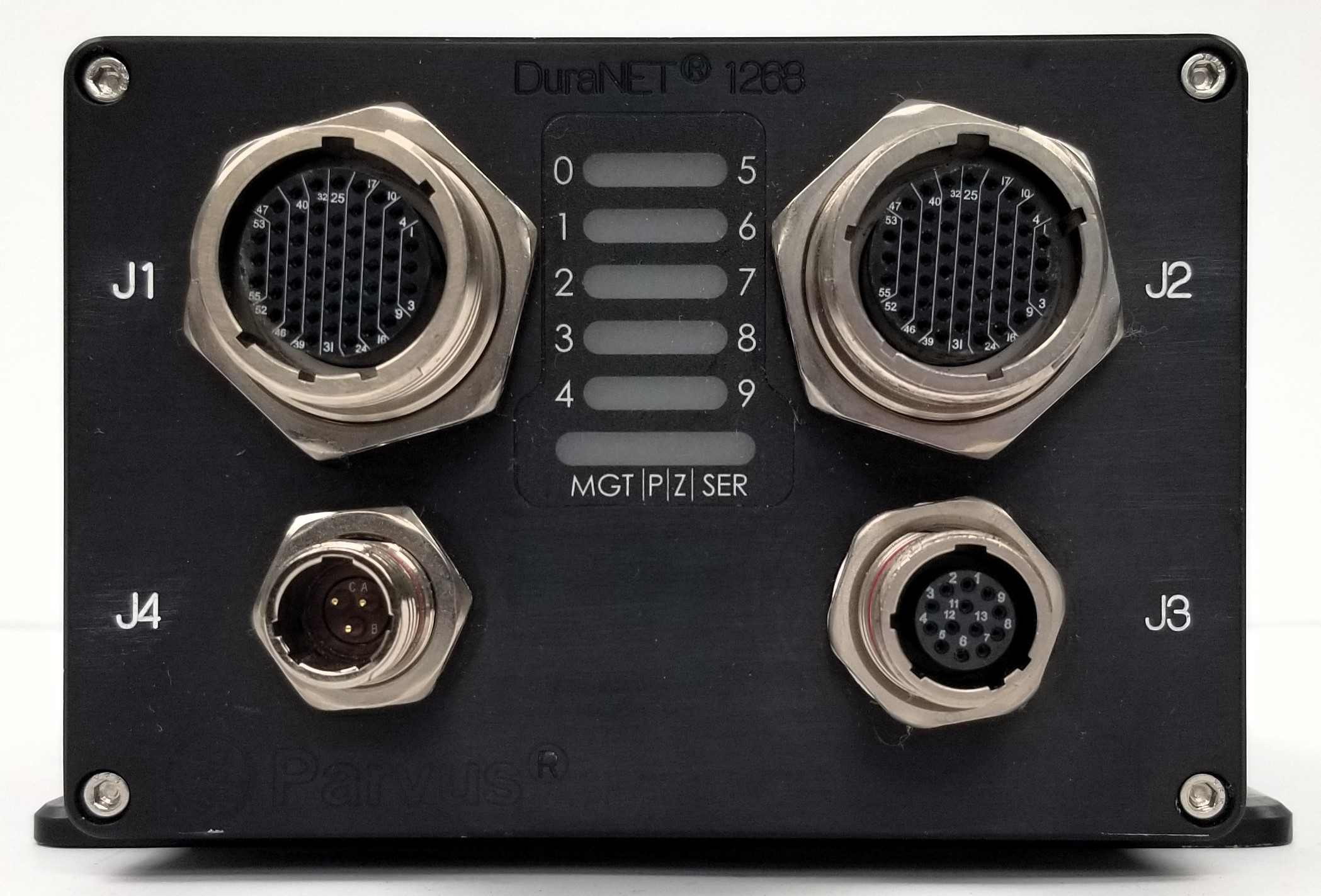

temperature and high altitude operation. Gigabit Ethernet interfaces are brought out
over rugged MIL-DTL-38999 connectors on the front panel and optionally Tactical Fiber
Optic Cable Assembly (TFOCA II) connectors on the rear. Managed and unmanaged
switch configuration are available for configurable or “plug and play” Gigabit Ethernet
LAN applications.
Designed for rugged extremes, this Size, Weight, and Power (SWaP)-optimized
Commercial-Off-the-Shelf (COTS) solution is well suited for C4ISR technology refresh
and situational awareness upgrade programs. To enhance reliability, the unit features
no moving parts, a near cable-less internal design, all industrial temperature grade
components, EMI filtering, and a sealed dust/ waterproof aluminum chassis with
isolated MIL-STD-1275/704 power supply that protects against vehicle/aircraft voltage
surges, spikes and transients.
The DuraNET 1268 features an onboard microprocessor for local/remote control and
port monitoring, as well as support for Quality of Service (QoS) traffic prioritization,
Virtual Local-Area Network (VLAN) trunking, Telnet remote CLI management, and Rapid
Spanning Tree (RSTP) redundancy. To enhance security and system management, the
unit integrates recoverable data zeroization capabilities for declassifying switch data,
along with RS-232 Command Line Interface (CLI) and Ethernet management ports.
Status LEDs indicate zeroization signal, power, and port link/speed/activity.
