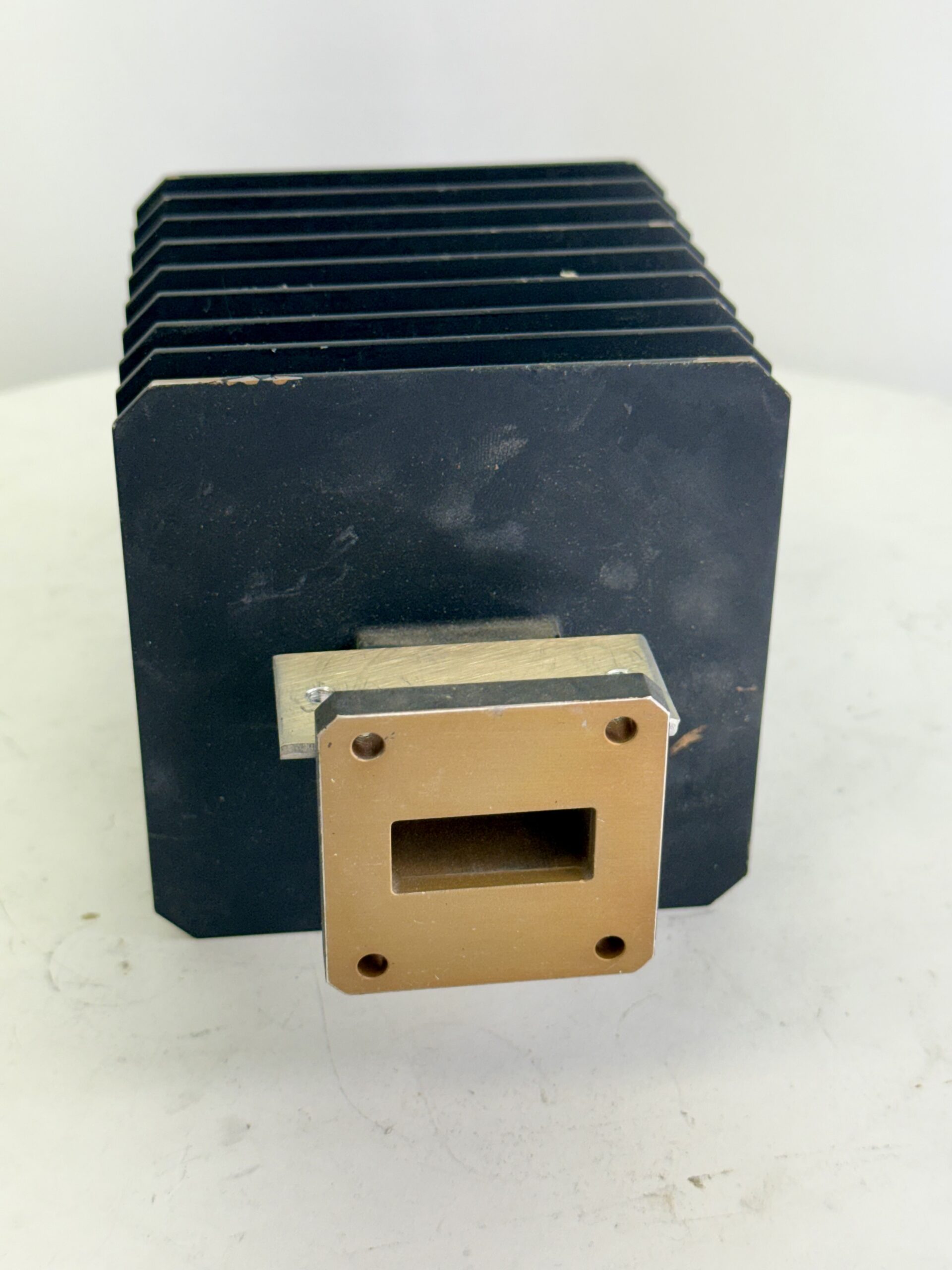

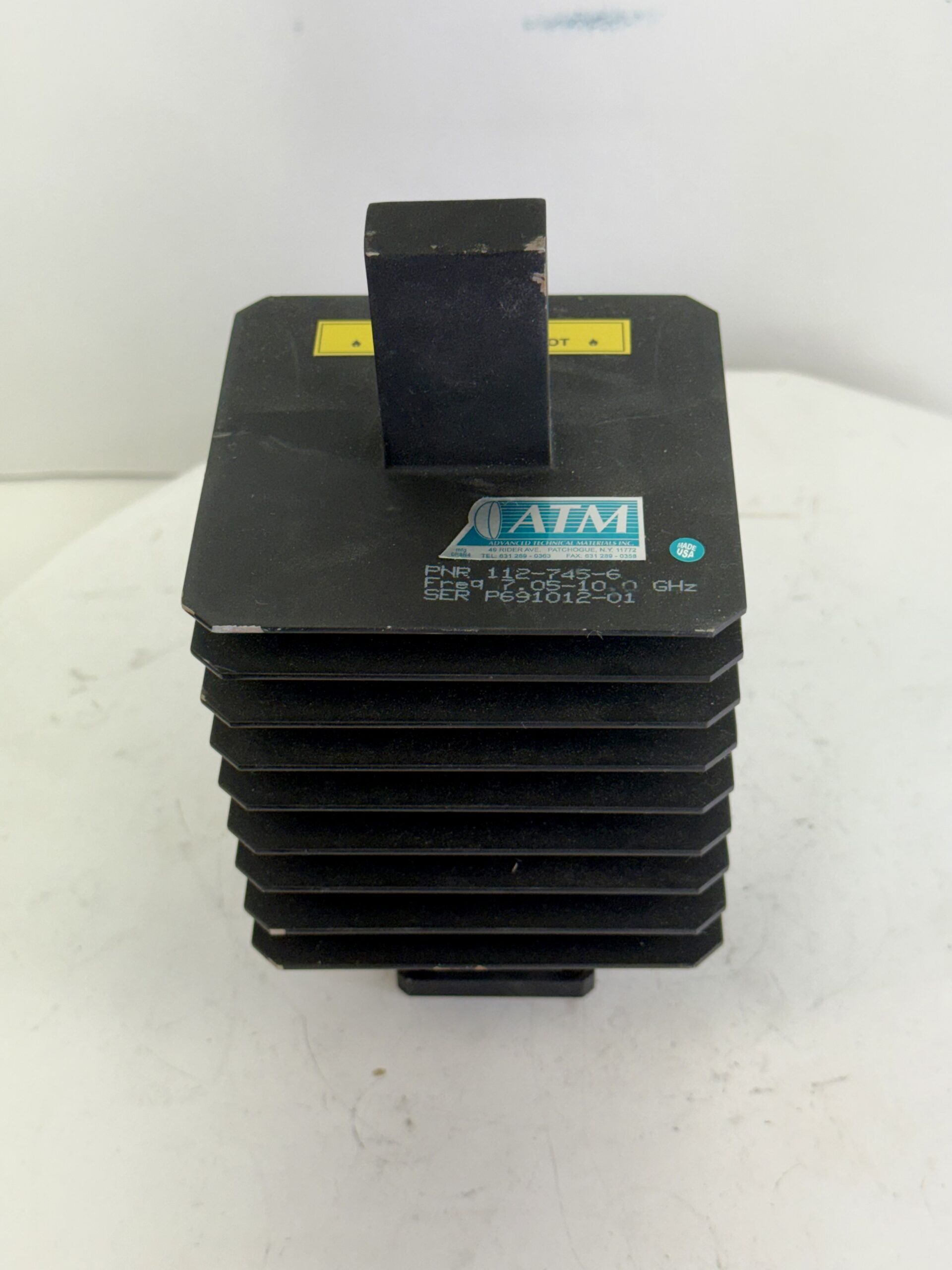

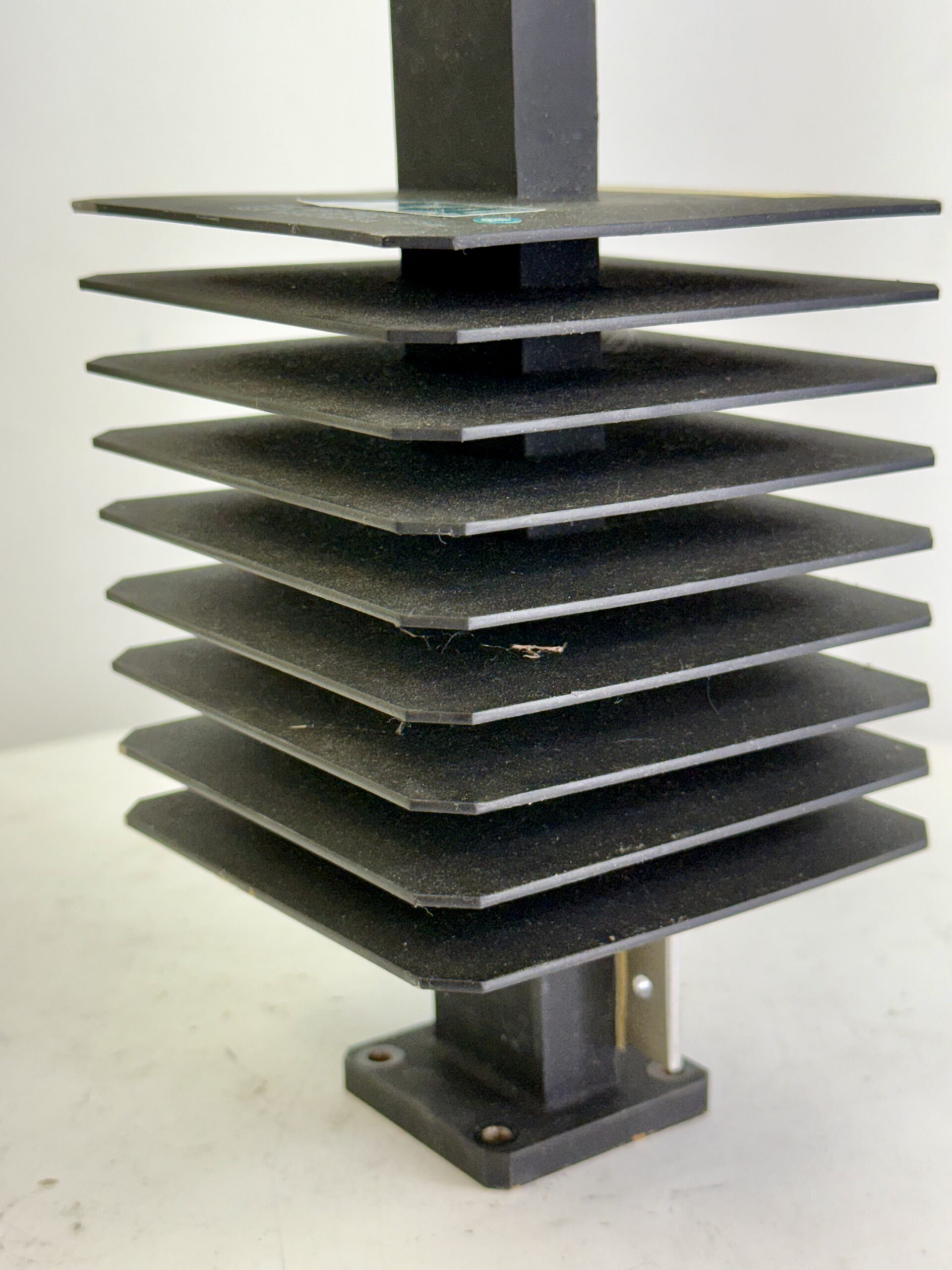

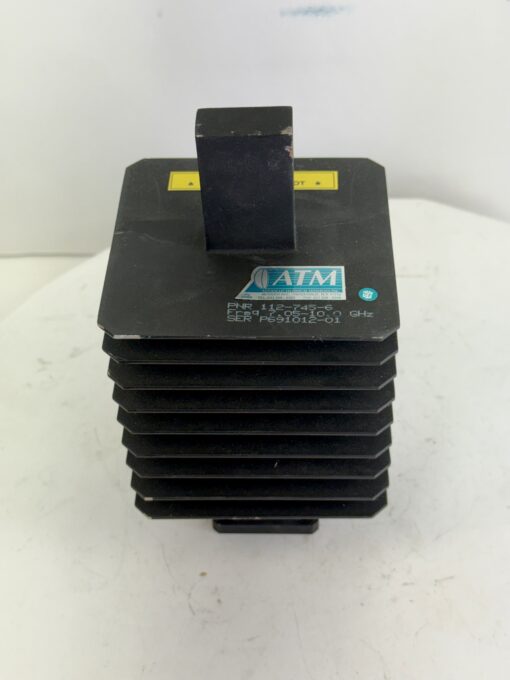

Narda-ATM 112-745-6 High Power Rectangular Waveguide Termination – WR-112, 7.05-10.0 GHz, 850W Average Power
This used Narda-ATM 112-745-6 is a high-power rectangular waveguide termination (also known as a waveguide load) designed to absorb RF energy and provide a matched impedance at the end of a transmission line. These components are essential for eliminating reflections in high-power microwave systems, protecting sensitive equipment from back-reflected power, and terminating unused ports.
Narda-ATM (formerly part of L3Harris, now operating as an independent entity with Narda-MITEQ) is a leading manufacturer of high-quality RF and microwave components for military, aerospace, and telecommunications applications .
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Narda-ATM |
| Model | 112-745-6 |
| Type | High Power Rectangular Waveguide Termination |
| Waveguide Size | WR-112 |
| Frequency Range | 7.05 – 10.0 GHz |
| Average Power | 850 Watts |
| Peak Power | 400 kW |
| VSWR | 1.10:1 max |
| Configuration | Rectangular |
| Dimensions | 8″ x 4″ x 4″ |
| Length | 8 inches |
| Applications | Military, Aerospace, Telecommunication, SATCOM |
| Condition | Used – sold as-is |
About WR-112 Waveguide
WR-112 waveguide operates in the X-band frequency range (7.05 to 10.0 GHz). This band is commonly used for:
-
Radar systems – Weather radar, marine radar, and military fire-control radar
-
Satellite communications – Ground station equipment
-
Telecommunications – Point-to-point microwave links
-
Test and measurement – High-power RF testing
Waveguide terminations are critical components in these systems, absorbing unused power and preventing reflections that could damage transmitters or degrade system performance.
Features & Benefits
-
High Power Handling: Rated for 850 Watts average power and 400 kW peak power, suitable for demanding high-power applications
-
Excellent VSWR: 1.10:1 maximum ensures minimal reflected power and optimal system performance
-
Military/Aerospace Grade: Built to stringent specifications for use in critical defense and aerospace systems
-
Robust Construction: Waveguide construction provides low loss and high power handling compared to coaxial alternatives
-
WR-112 Compatibility: Standard waveguide size for X-band applications
Applications
-
Radar Systems: Terminating unused ports in radar feed networks and protecting receivers
-
Satellite Ground Stations: Absorbing power in test setups and redundant paths
-
Telecommunications: Load termination in high-power microwave links
-
Military Systems: Electronic warfare, fire control radar, and communications
-
Test & Measurement: High-power RF testing and characterization
-
Aerospace: Ground support equipment and airborne radar systems
Condition
SOLD AS IS
USED – SHOWS NORMAL HANDLING
RF PERFORMANCE NOT TESTED
NO MOUNTING HARDWARE INCLUDED
PICTURE MAY NOT MATCH PRODUCT
