Monolithics 1040744 REV 001

Product Description

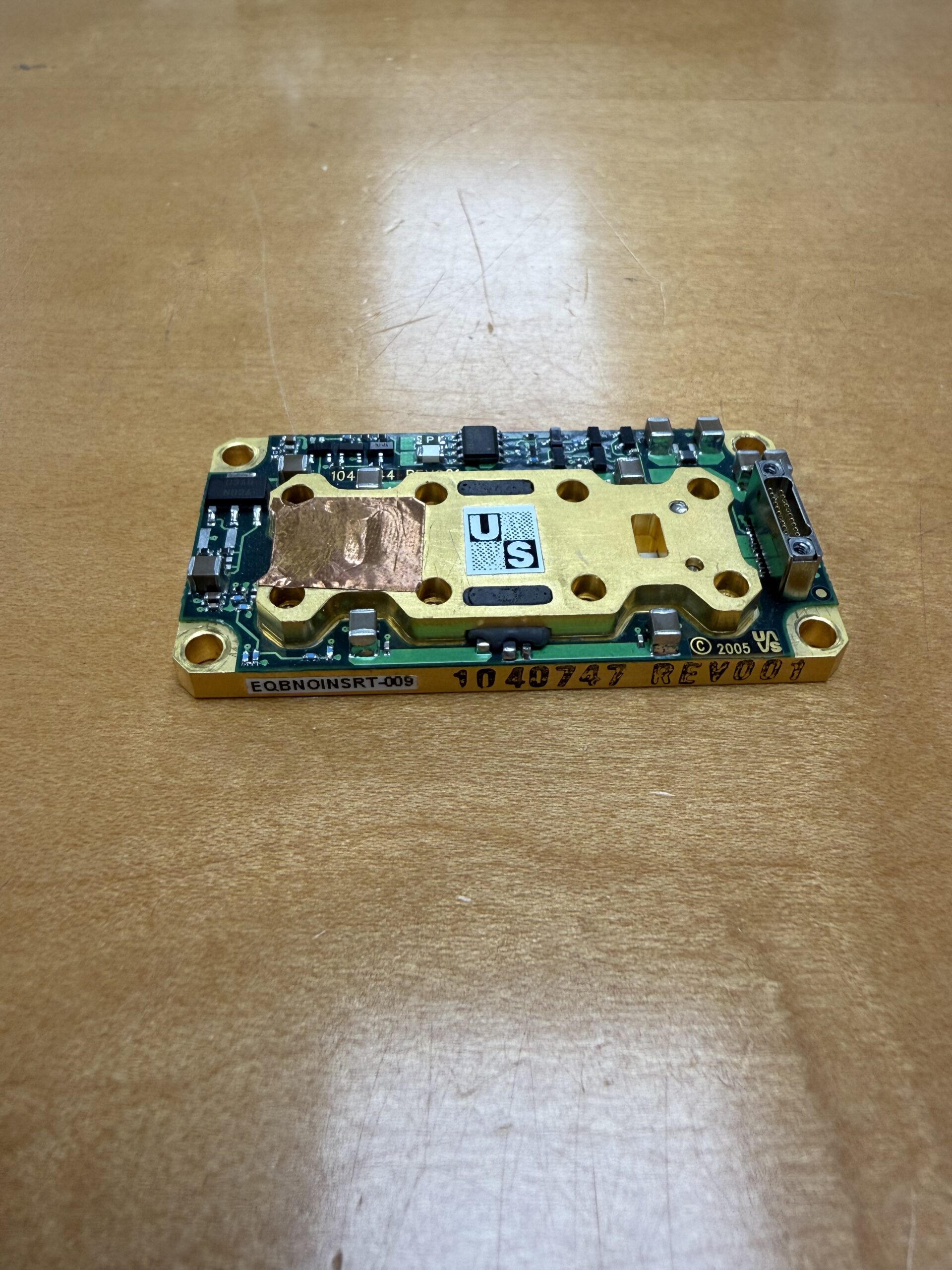

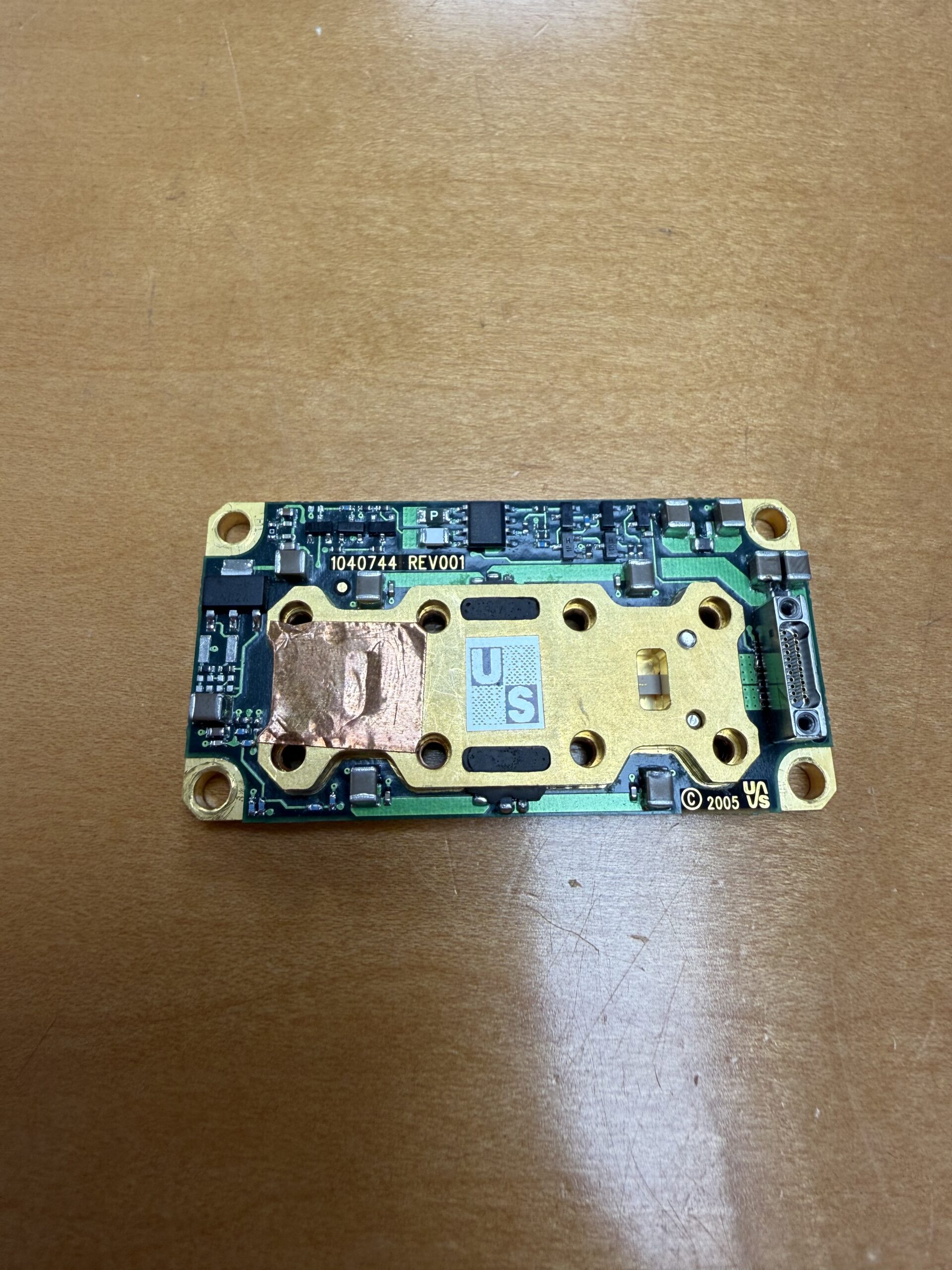

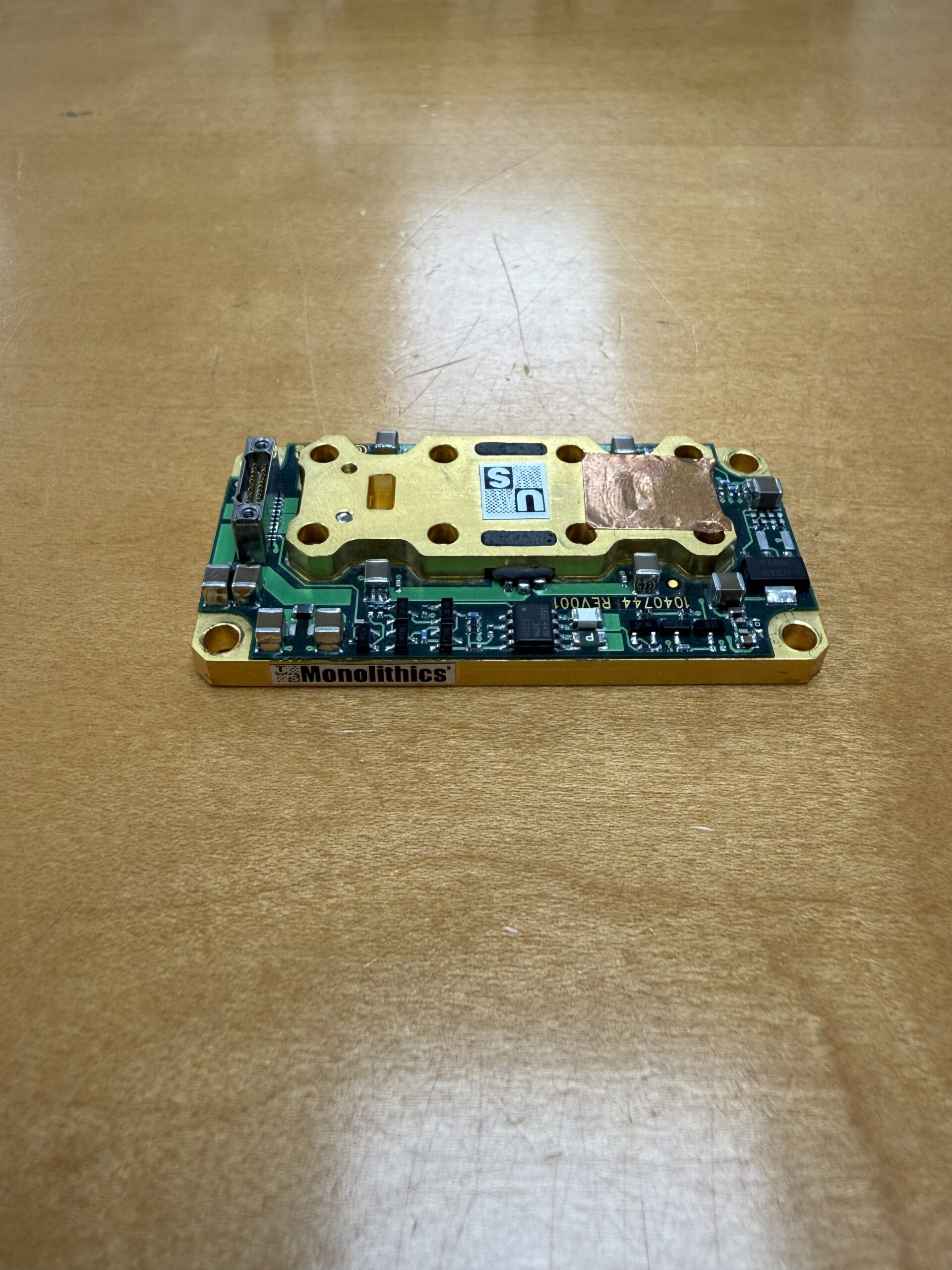

Monolithics 1040744 REV 001 RF/Microwave Module or Circuit Board

This is a specialized RF or microwave component/module from Monolithics, identified by part number 1040744 REV 001. Monolithics (often associated with Monolithic Microwave Integrated Circuits – MMICs) produced high-frequency components for defense, aerospace, and telecommunications. This board is sold AS IS for engineering evaluation, parts salvage, or repair.

Likely Specifications (Based on Manufacturer):

• Manufacturer: Monolithics (specialist in MMICs and RF subsystems)

• Function: Could be a power amplifier, low-noise amplifier (LNA), frequency converter, or RF switch module

• Frequency Range: Likely microwave bands (L-band to Ka-band, 1–40 GHz)

• Connectors: SMA, K, or other RF coaxial interfaces

• Power: May include integrated bias regulation and control circuitry

• Applications: Radar, satellite communications, electronic warfare, or test equipment

Potential Uses:

• Component Salvage: High-value RF transistors, MMICs, capacitors, inductors, and connectors

• Legacy System Repair: Donor board for restoring identical equipment in defense or telecom hardware

• Engineering Analysis: For reverse-engineering or studying RF circuit design techniques

• Educational Tool: For university RF/microwave engineering courses (requires advanced knowledge)

Important Notes:

• Expertise Required: This module is not functional without integration into a properly matched RF system and proper biasing/control.

• No Performance Data: Frequency range, gain, noise figure, power output, and other specs are unknown.

• Possible ITAR Control: May be subject to export restrictions due to potential military/aerospace origins.
