Custom Rack Mount 50 Watt HF Power Amplifier 1-30 Mhz 47dB gain

Custom Rack Mount 50 Watt HF Amplifier 1-30 Mhz.
Units made for the Australian Military. No manual,
specifications, schematic or other information is

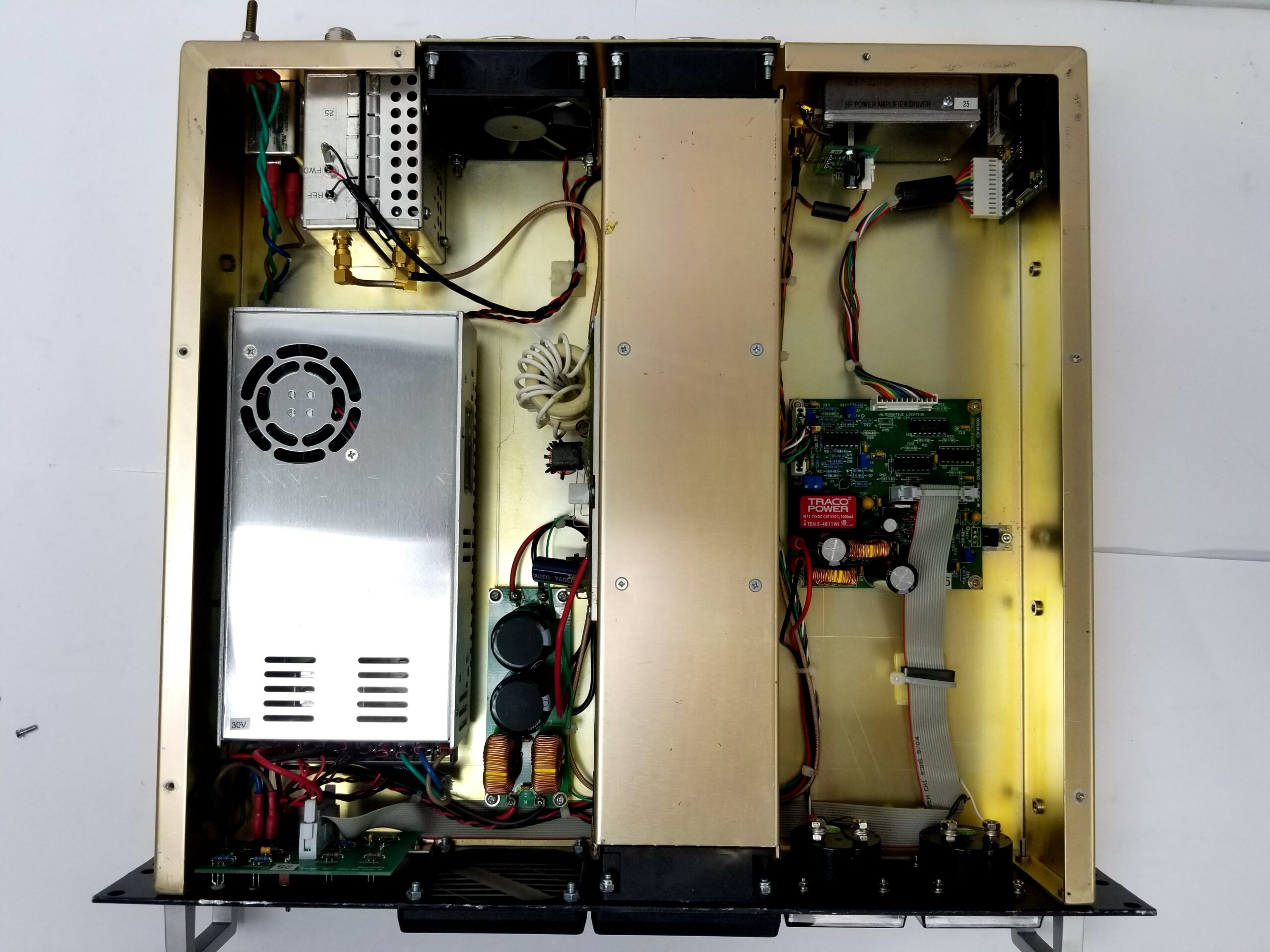

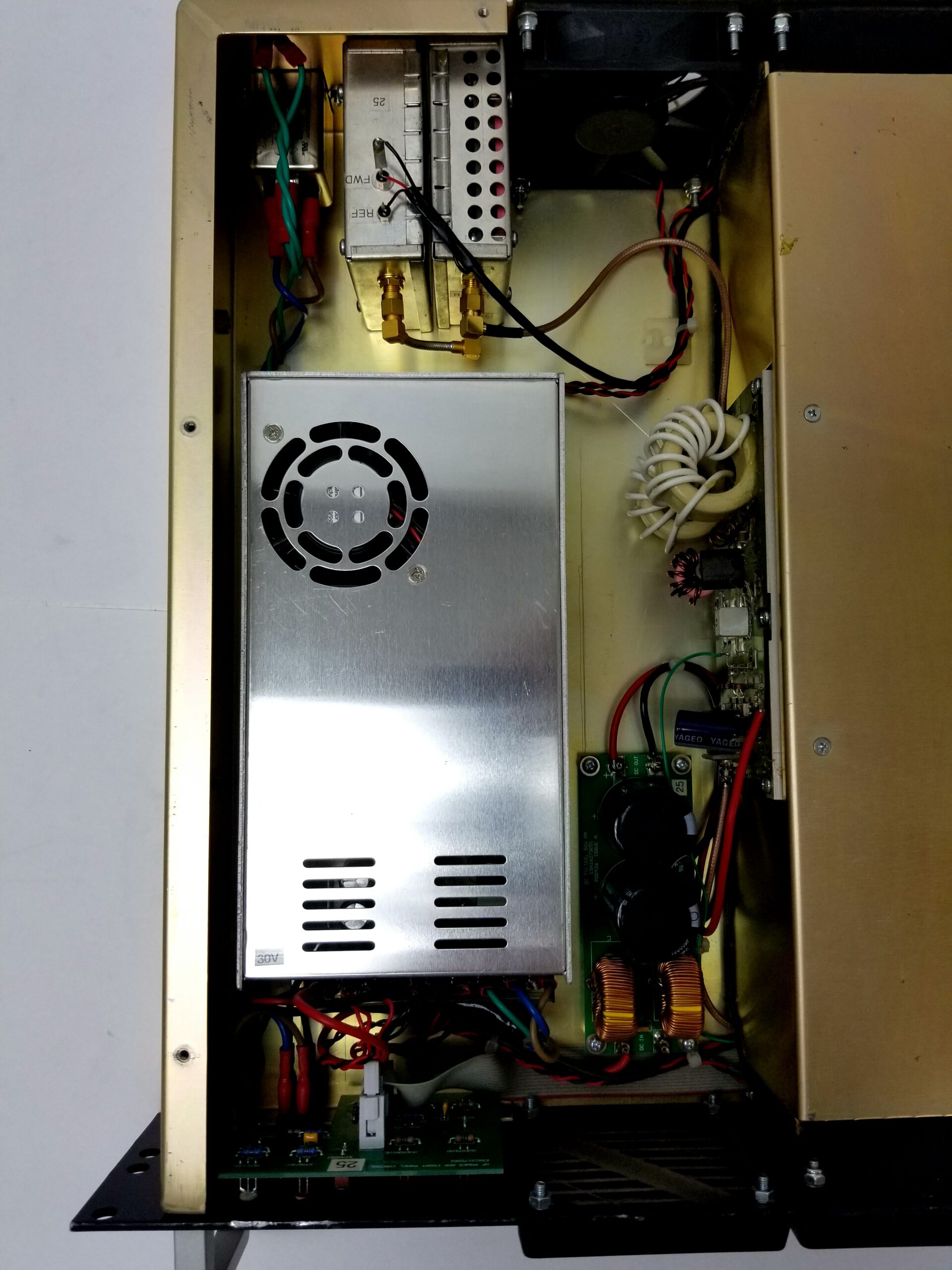

available. Units marked 240 volts but internal PSU
is rated for 100-240 volts. Units tested at 125 V with

RF signal generator (AM 1K 80%) and attenuated
spectrum analyzer at 1 & 30Mhz at 0dBm input with
+47dBm (50 Watts) output at both. Amplifier functions
above 30 Mhz with a sharp drop off. *Uncalibrated
(reference only) surplus test equipment used.

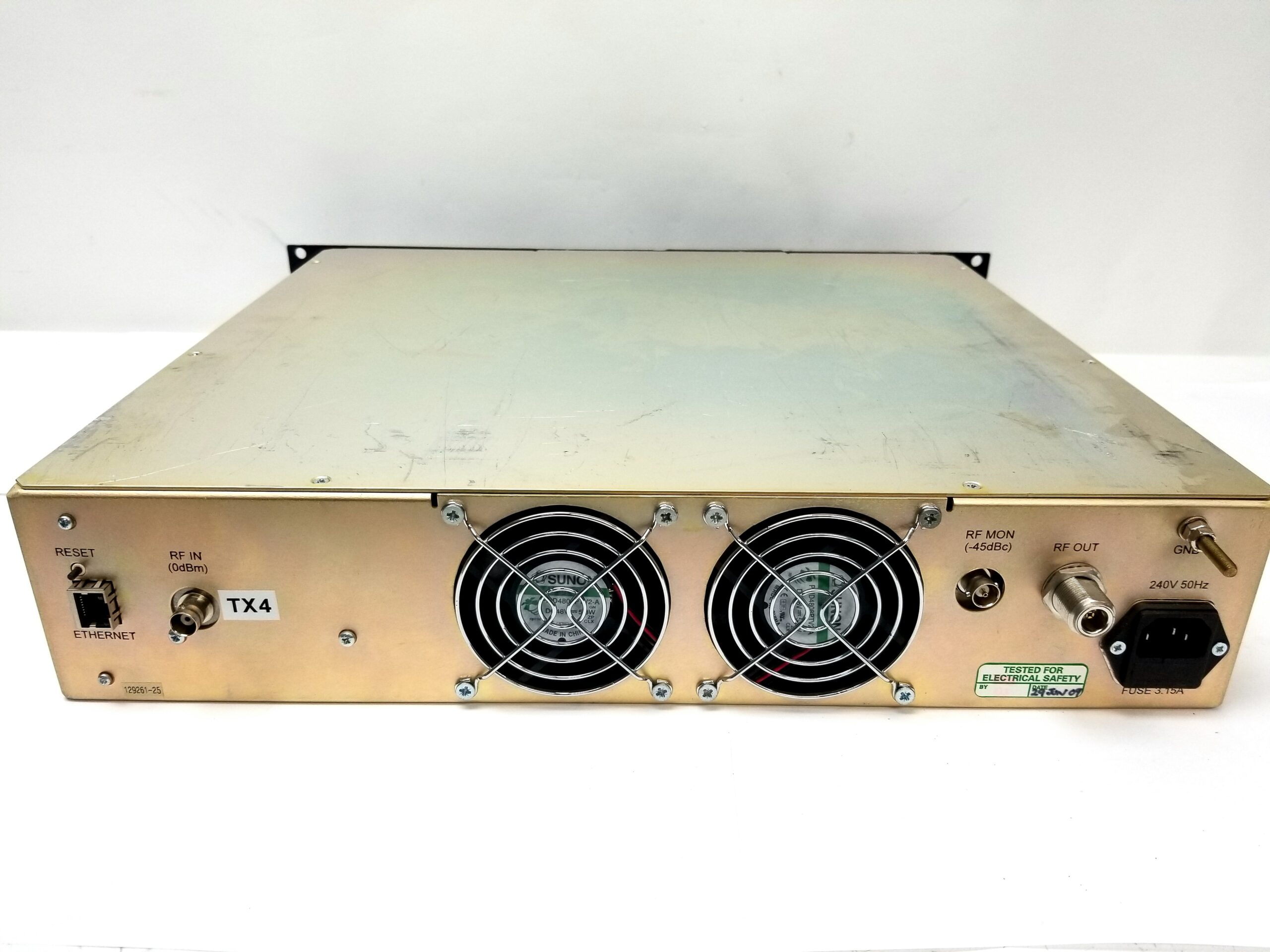

BNC Input, “N” female output and -45dBc

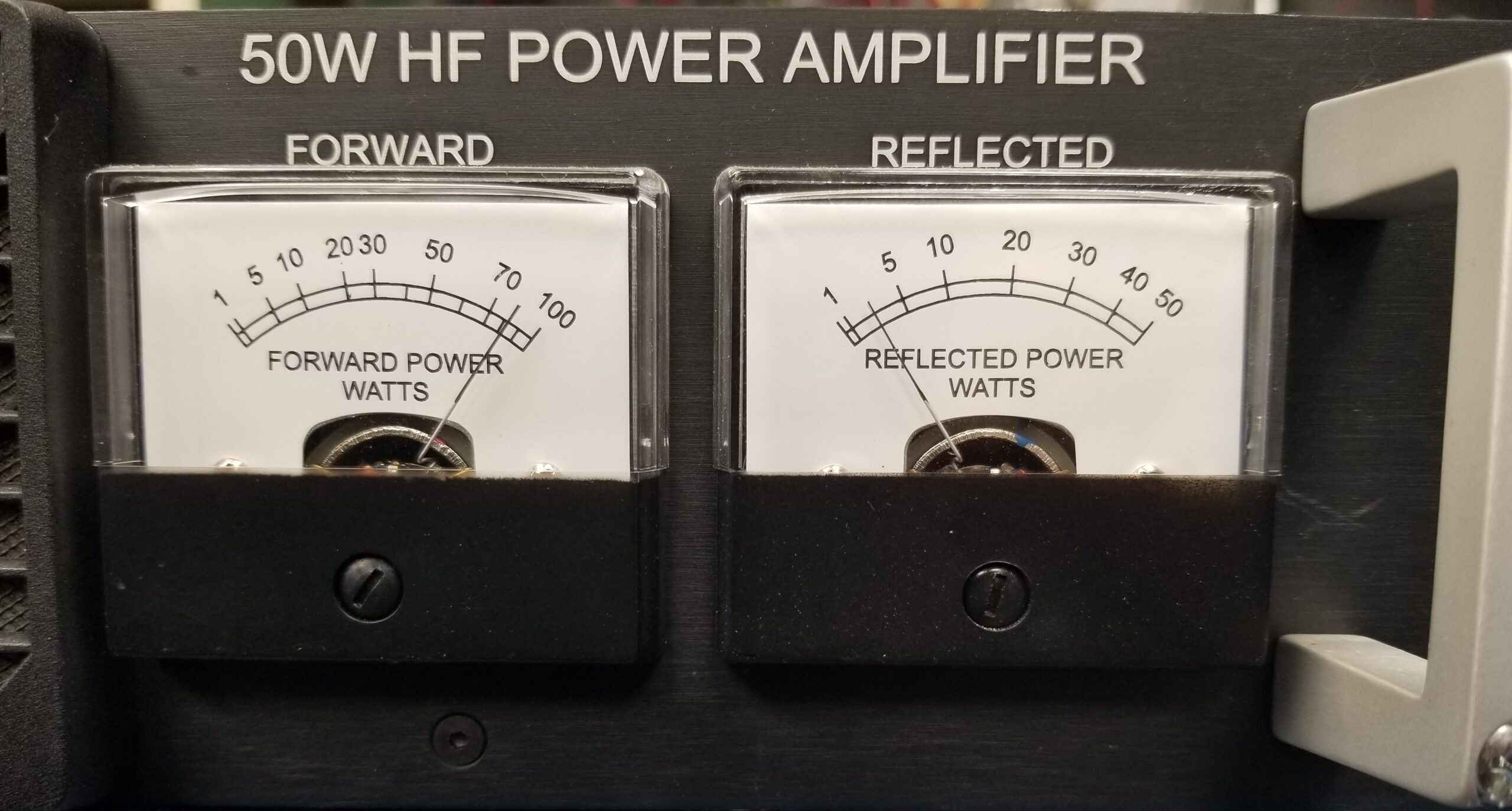

BNC monitor connectors. Front VSWR metering.

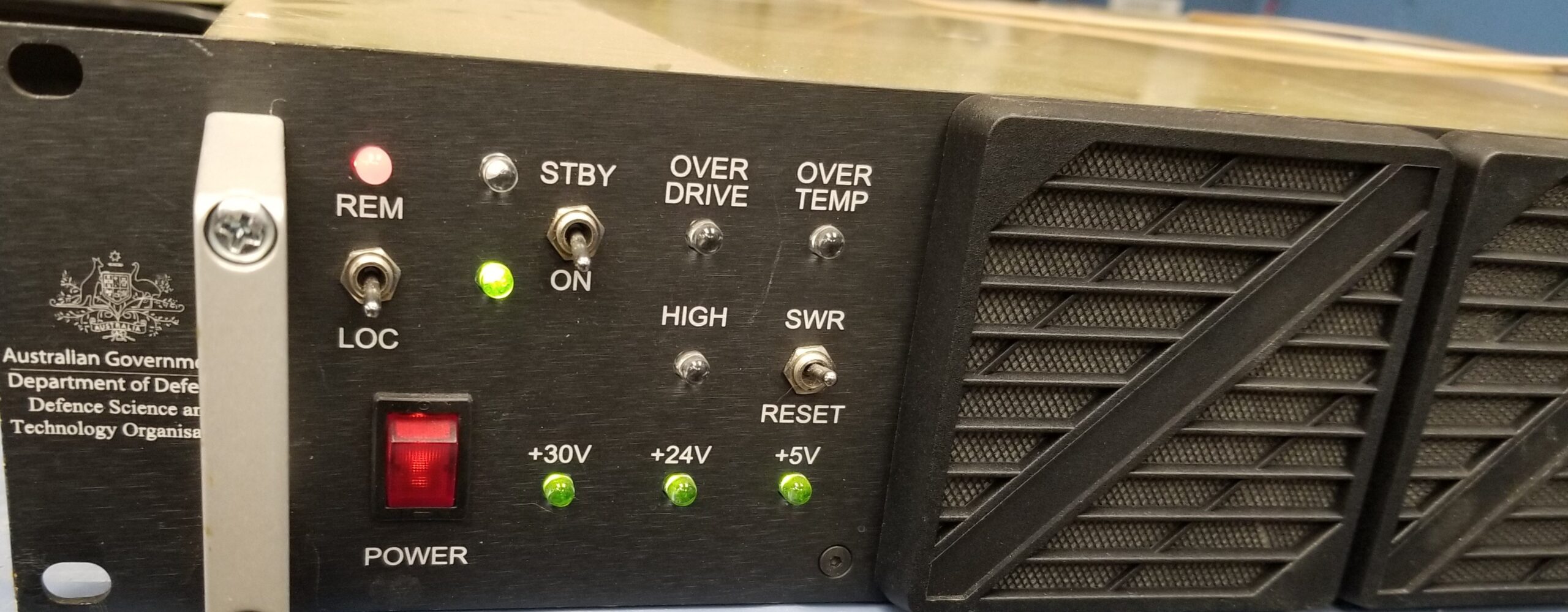

Quiet cooling fans with cleanable filters. High
VSWR warning L.E.D. and shutdown with reset.
Over temperature warning L.E.D. and protection.
Over input warning L.E.D. Remote capability
(unknown ethernet connection). We have other
RF amplifiers in our inventory. Check the search
box above. Purchaser responsible for proper use.
