Klinger Motorized Rotary Stage, RT 120 PP,
$975.00

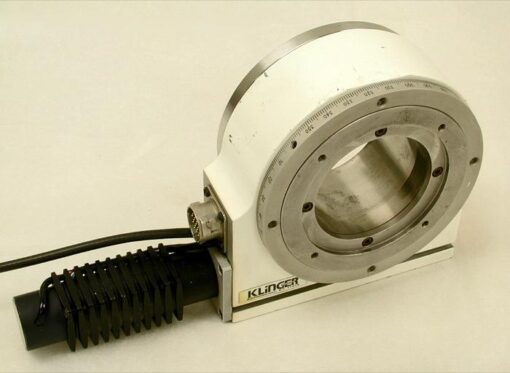

This item is a Klinger motorized Rotary Stage, type RT 120 PP. It includes a type UE31 PP DC step motor drive along with a rotary encoder. Step resolution is 0.001 degree. The stage is very massive (approximately 7.25 pounds). Condition is excellent, however there is a small ding on one edge of the graduated ring.
The stage metrics include:.
Diameter of graduated rotary portion = 120mm
Through-bore clearance = 60mm
Overall height (from mounting shelf, side mounted) = 140mm
Stage thickness = 64mm
Length of motor with encoder = 98mm
Width of stage, less motor = 138mm
Load bearing = 25 kg
***MPN RT 120 PP
***OEM Klinger Scientific
***SKU*** DP179
1 in stock
CompareThis item is a Klinger motorized Rotary Stage, type RT 120 PP. It includes a type UE31 PP DC step motor drive along with a rotary encoder. Step resolution is 0.001 degree. The stage is very massive (approximately 7.25 pounds). Condition is excellent, however there is a small ding on one edge of the graduated ring.
The stage metrics include:.
Diameter of graduated rotary portion = 120mm
Through-bore clearance = 60mm
Overall height (from mounting shelf, side mounted) = 140mm
Stage thickness = 64mm
Length of motor with encoder = 98mm
Width of stage, less motor = 138mm
Load bearing = 25 kg
***MPN RT 120 PP
***OEM Klinger Scientific
***SKU*** DP179
| Weight | 9 lbs |
|---|---|
| Dimensions | 12 × 8 × 6 in |
