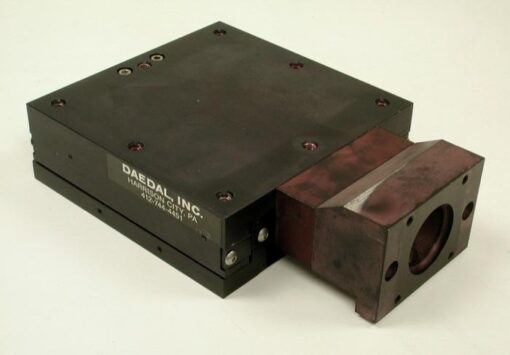

Daedel 4-inch Translation Stage with Motor bracket

Model 106041 P-10E Daedal stage, no motor, but with motor bracket. It contains the standard leadscrew. The motor bracket does not include a flex coupler, but this can be supplied in stainless steel for an additional fee.

Translation Table: 6×6 inches
Overall Stage Length (less drive housing): 6 inches
Overall Stage Width: 6 inches
Table Height: 2 inches
Drive Housing Height: 2.35 inches
Drive Housing length: 2.75 inches
Straightness: 0.00008 in/inch of travel
Load Capacity: 100 pounds
Stage Weight: 4 pounds

The stage is in excellent condition. There is a very slight amount of fading in the anodizing on the table surface, but the motor bracket has significant fading, and a bad scuff mark on the top of the motor mount
***MPN 106041 P-10E
***OEM Daedal
***SKU*** DP212
