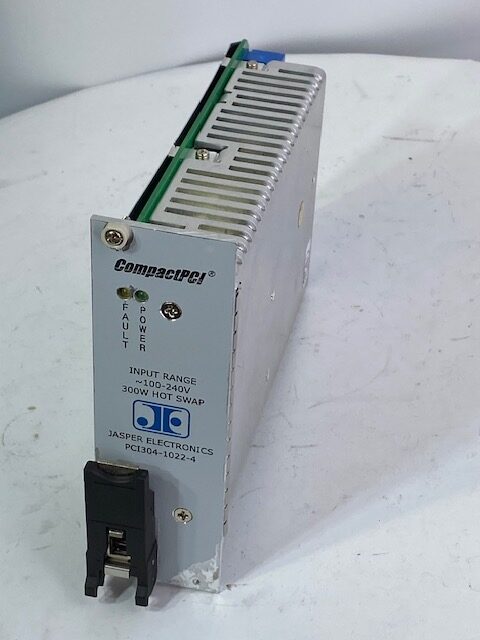

Jasper Electronics PCI304-1022-4 CompactPCI Power Supply

Jasper Electronics PCI304-1022-4 is part of Jasper’s 300 W CompactPCI® (cPCI) power supply family, designed to provide standardized board-mount power for CompactPCI systems. These power supplies conform to industry PICMG specifications for CompactPCI systems.

⚡ Key Specifications

• Type: 300 W CompactPCI Power Supply Module (AC input).

• Input Voltage: Typically ~90 – 264 VAC universal input.

• Outputs: Standard PCI voltages — +5 V, +3.3 V, +12 V, –12 V.

• Output Currents: Example design shows up to approximately 40 A on +5 V, 40 A on +3.3 V, 10 A on +12 V, and 2 A on –12 V (specific values can vary by exact sub-model).

• Connector: Standard 47-pin CompactPCI connector.
