Hewlett Packard 86142A Optical Spectrum Analyzer for PARTS/REPAIR

Hewlett Packard 86142A Optical Spectrum Analyzer for PARTS/REPAIR. Unit powers on. Display bright. Fan quiet. Will not start instrument applications. No further testing performed. No manual, cables or other accessories. Last calibration/service seals intact (view gallery images). As shown.

The Hewlett Packard 86142A optical spectrum analyzer is a high-performance benchtop instrument that offers a combination of flexibility, high accuracy, and throughput for both research and development and manufacturing environments.

The benchtop Hewlett Packard 86142A analyzer is a top of the range high performance unit ideally suited for critical WDM and EDFA applications where wavelength accuracy, dynamic range and low polarization dependency are essential. In the 86142A unit, many of the OSA high performance parameters have been optimized to simultaneously cover the WDM C (conventional) and L (long) wavelength bands (1530 nm to 1600 nm). This extended WDM wavelength range also makes these OSAs ideal for testing WDM passive components (filters, multiplexors and Bragg Gratings), characterizing DWDM transmitter lasers and analyzing DWDM multi-channel system performance.

• Wavelength Range: 600 nm to 1700 nm
• Span Range: 0.2 nm to full range and zero span
• Accuracy: ±0.5 nm (absolute)
• Resolution Bandwidth: 0.06, 0.1, 0.2, 0.5, 1 2, 5, 10 nm
• Maximum Sweep Rate: 50 ms
• Remote control compatibility with IEEE-488

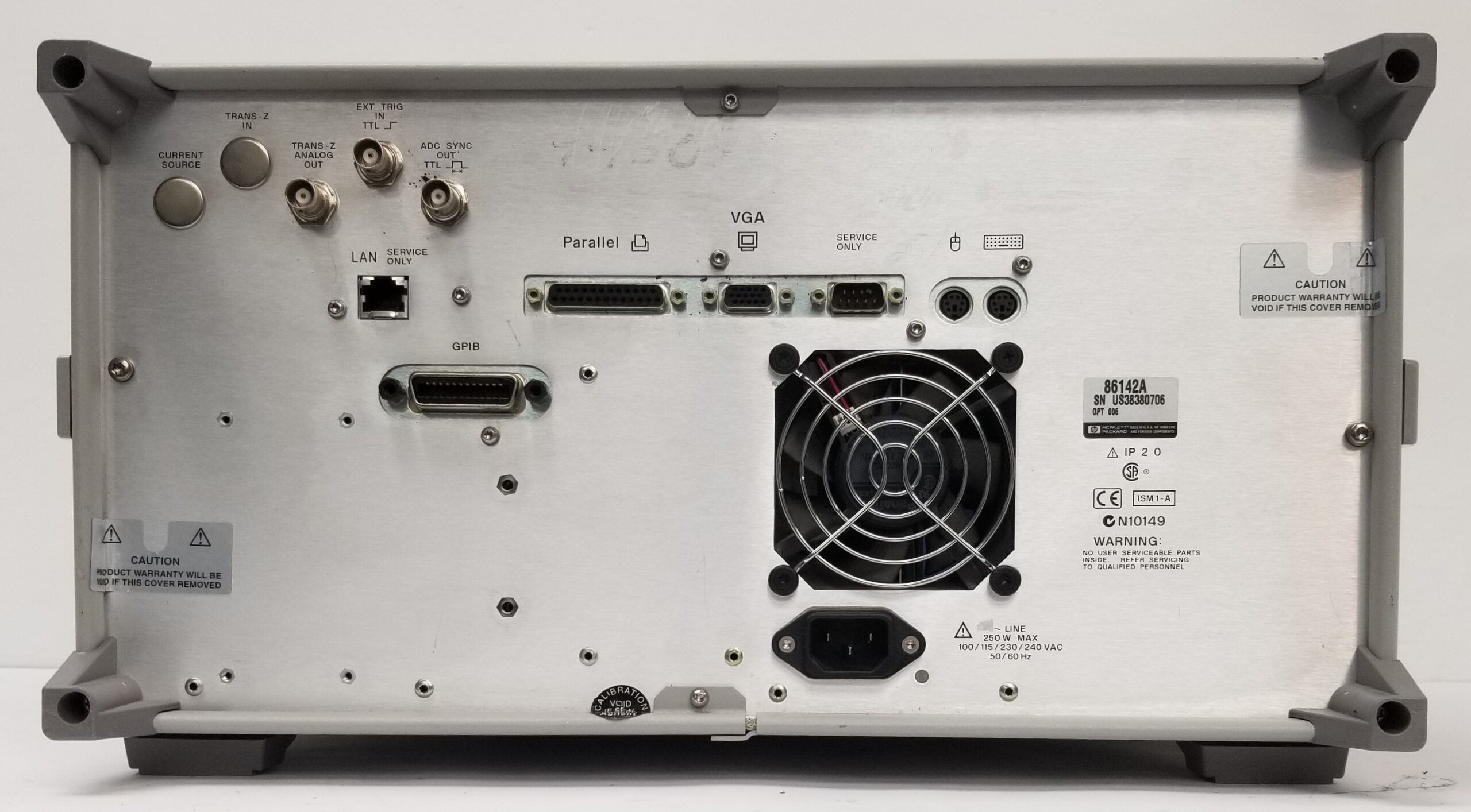

• Interfaces: HP-IB, parallel printer port, external VGA monitor, keyboard (PS/2) and mouse.
• Graphics Export: CGM, TIF

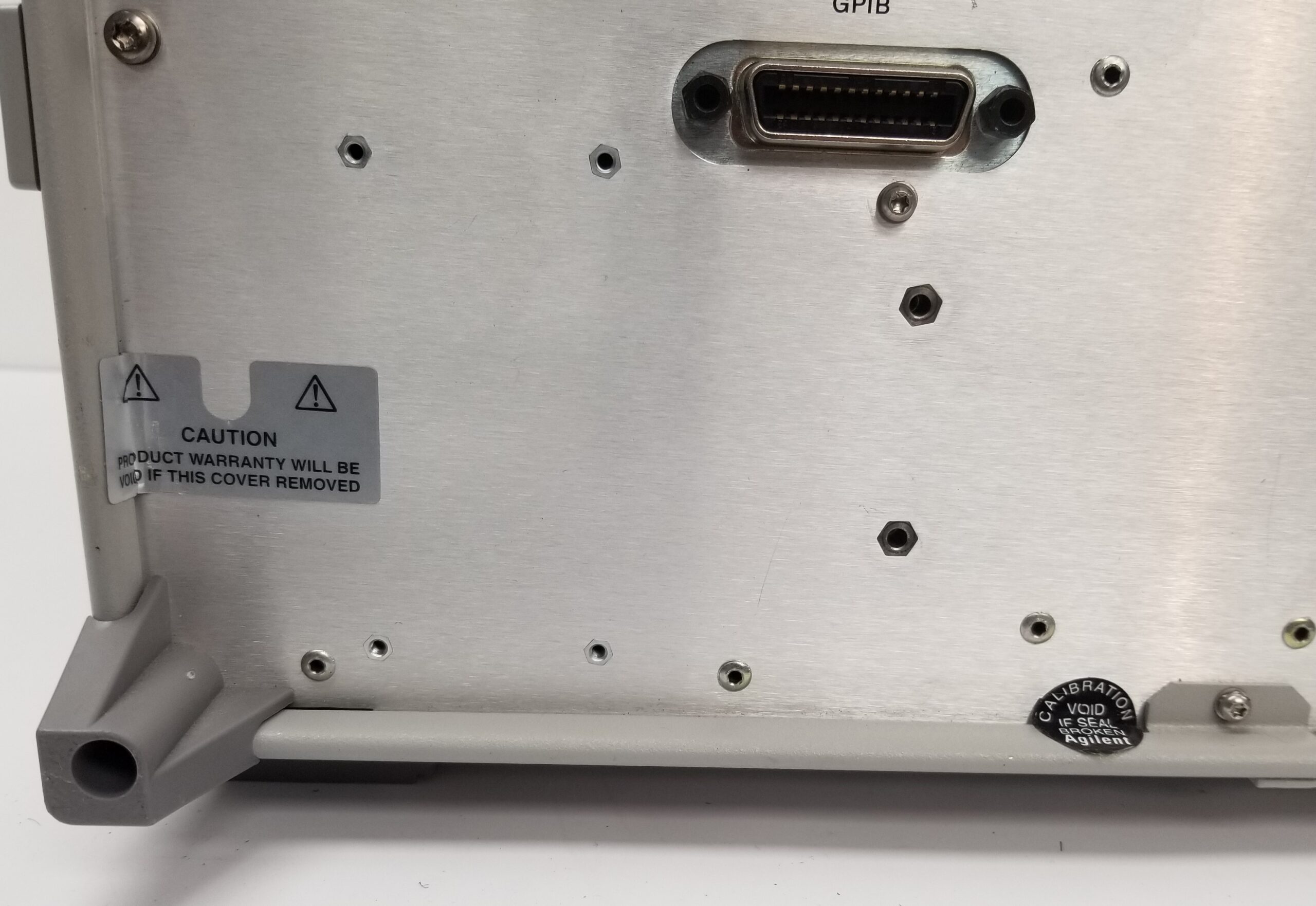

PARTS/REPAIR – Last calibration/service seals intact.
