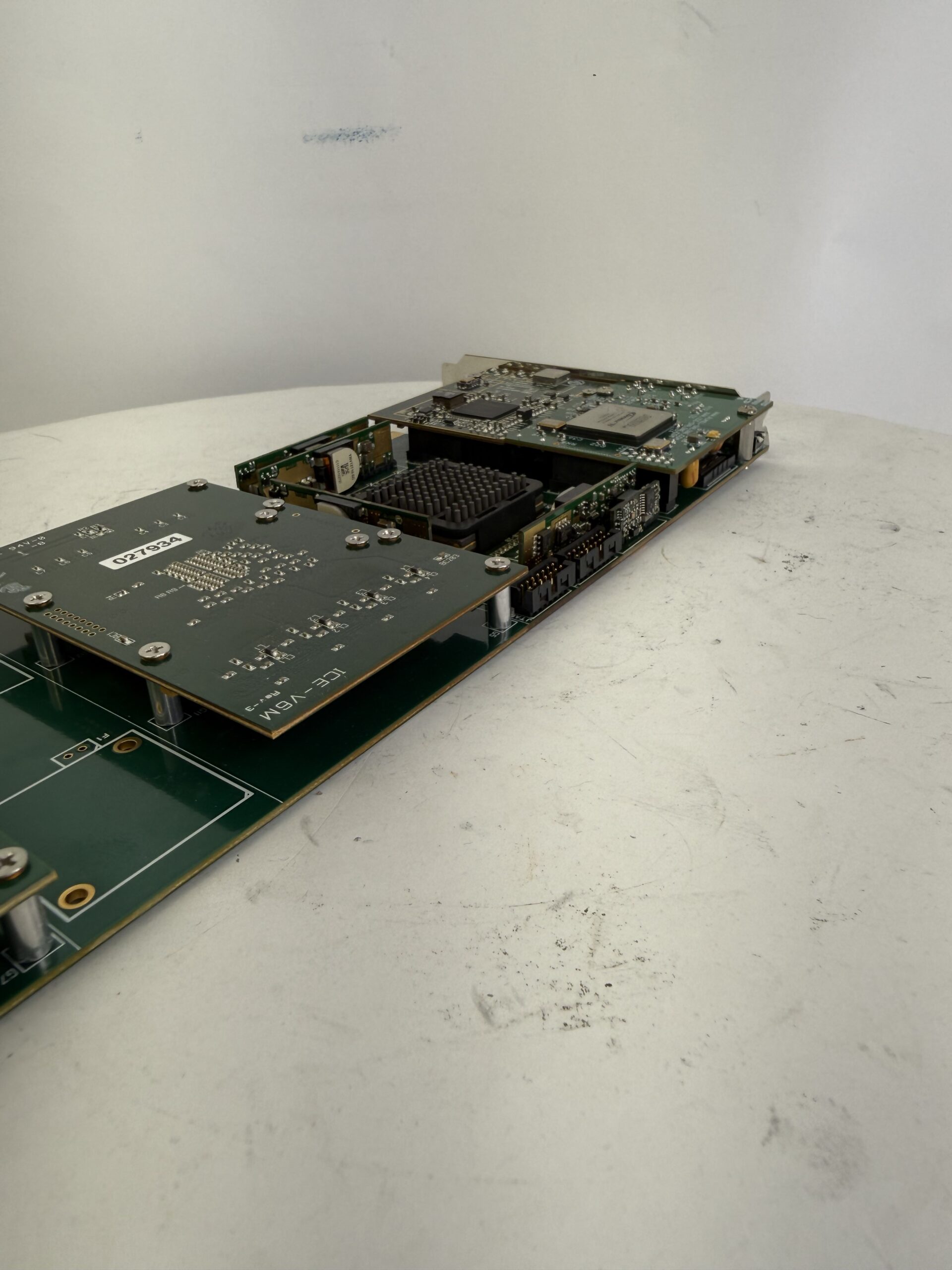

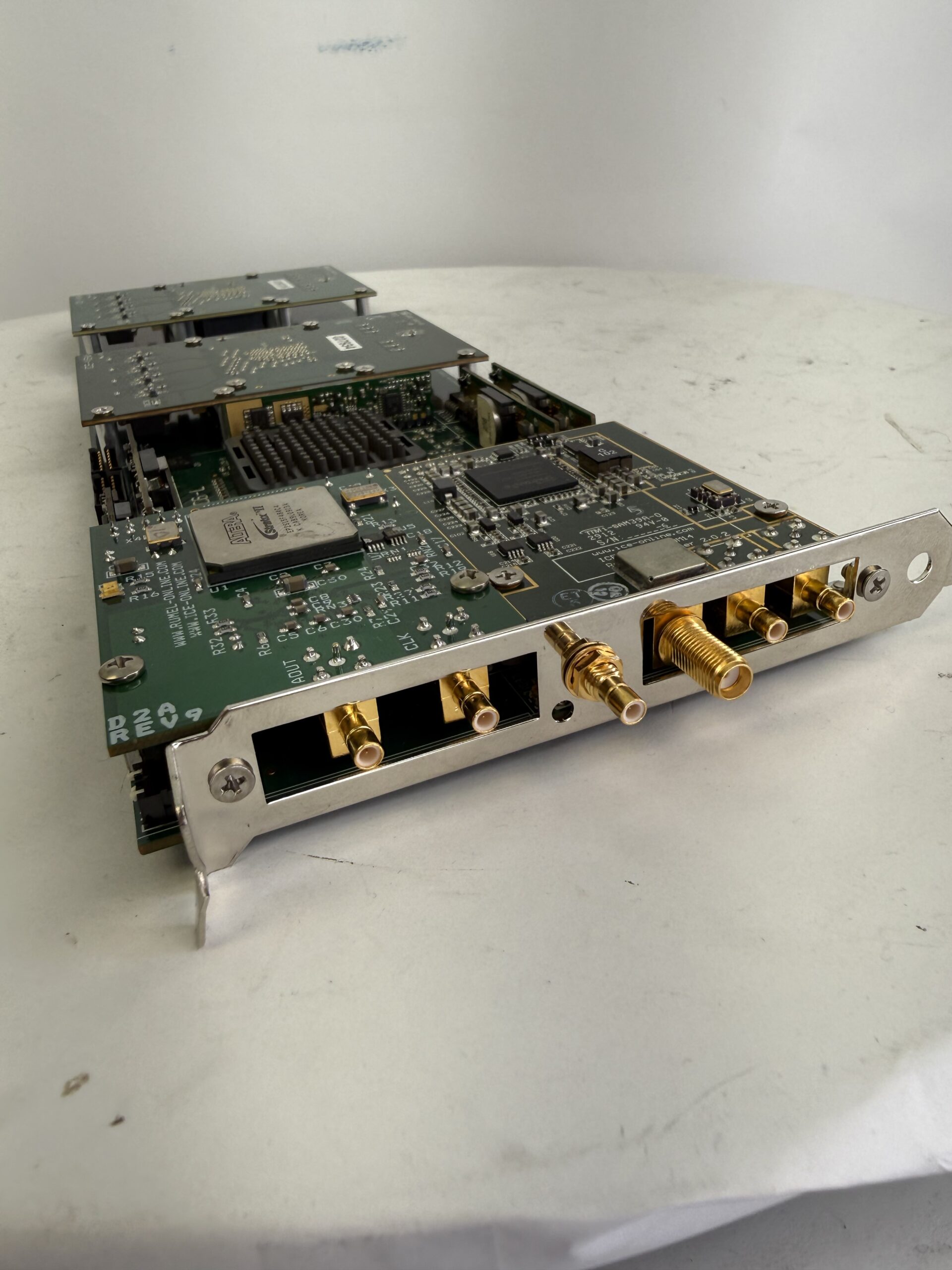

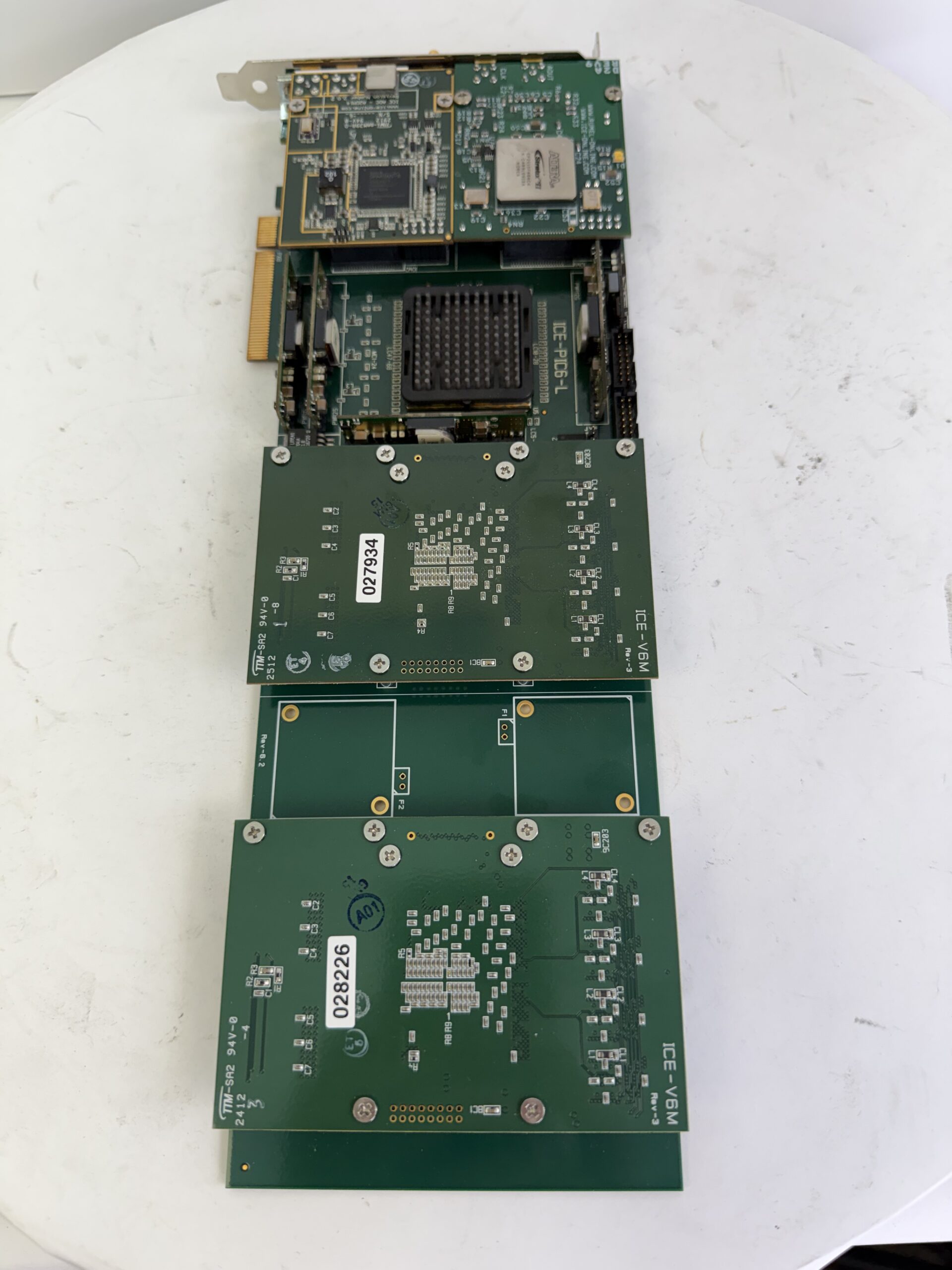

ICE Enterprises ICE-PIC6L DSP card

Product Description

ICE Enterprises ICE-PIC6L Digital Signal Processing (DSP) Card – Virtex-4 FPGA, PCI Express, Dual Processor Sites

This used ICE Enterprises ICE-PIC6L is a sophisticated digital signal processing (DSP) accelerator card designed for high-performance data capture and processing applications. It is part of ICE Enterprises’ PIC6 series, which has been declared End-of-Life (EOL) as of September 30, 2015, with support ending January 1, 2018 . The card has been superseded by the ICE-PIC7 series .

The “L” designation indicates this is the long form factor version of the card, measuring 4″ x 12.25″, featuring two processor module sites for enhanced processing capability .

Key Specifications

Key Features

Virtex-4 FPGA Processing:

• Xilinx Virtex-IV FX60 programmed as PCIe controller, IOC controller, and packet router

• All components are software configurable for various processing needs

High-Speed Data Handling:

• 1500 MBytes/sec data capture/playback to 256 MB onboard DDR SDRAM

• 4 GBytes/sec memory bandwidth

Flexible I/O and Processing Architecture:

• Two I/O module sites for application-specific interfaces

• Two processor module sites for application-specific processing (digital tuning, demodulators, FFT processing, or PLD processing)

• 1.6 GBytes/sec bandwidth to processor modules

External Synchronization:

• One SMB connector for synchronizing multiple cards

Status & End-of-Life Notice

⚠ IMPORTANT: This product has been officially declared End-of-Life (EOL) by ICE Enterprises.

• EOL Date: September 30, 2015 (no longer recommended for new designs)

• EOA Date: December 31, 2015 (no new orders accepted)

• EOS Date: January 1, 2018 (end of support)

The ICE-PIC6 series has been superseded by the ICE-PIC7 series . This card is sold as-is without manufacturer support. Buyers should be prepared to support the card themselves or have existing expertise with ICE hardware.

Note on Non-Volatile Memory:
According to ICE’s certification, the ICE-PIC6 contains writable non-volatile EEPROM that holds the Xilinx gate array code only. It will never hold any user-supplied data, and there is no interface for the user to write data to the EEPROM .

Processor Module Options

The ICE-PIC6L can accept up to two processor modules for enhanced processing capability:

Applications

• Software-Defined Radio (SDR) : High-bandwidth signal capture and processing

• Signal Intelligence (SIGINT) : Wideband signal analysis

• Telecommunications Testing: Demodulation and analysis of complex waveforms

• Radar and Electronic Warfare: High-speed data acquisition and processing

• Spectrum Monitoring: Real-time spectral analysis

• Research and Development: Custom DSP algorithm development

The onboard fixed-point processor performs 2-channel tuner, 100MHz FM/QAM demodulation, 22 GTap/sec FIR filtering, and 6us 2K RFFT operations .

Condition

SOLD AS IS
USED – SHOWS NORMAL HANDLING
FORM FACTOR: Long (4″ x 12.25″)
FUNCTIONALITY NOT TESTED
NO SOFTWARE OR DOCUMENTATION INCLUDED (unless specified)
PICTURE MAY NOT MATCH PRODUCT

⚠ EOL NOTICE: This product has been discontinued and is no longer supported by the manufacturer . Sold as-is without warranty or support.
