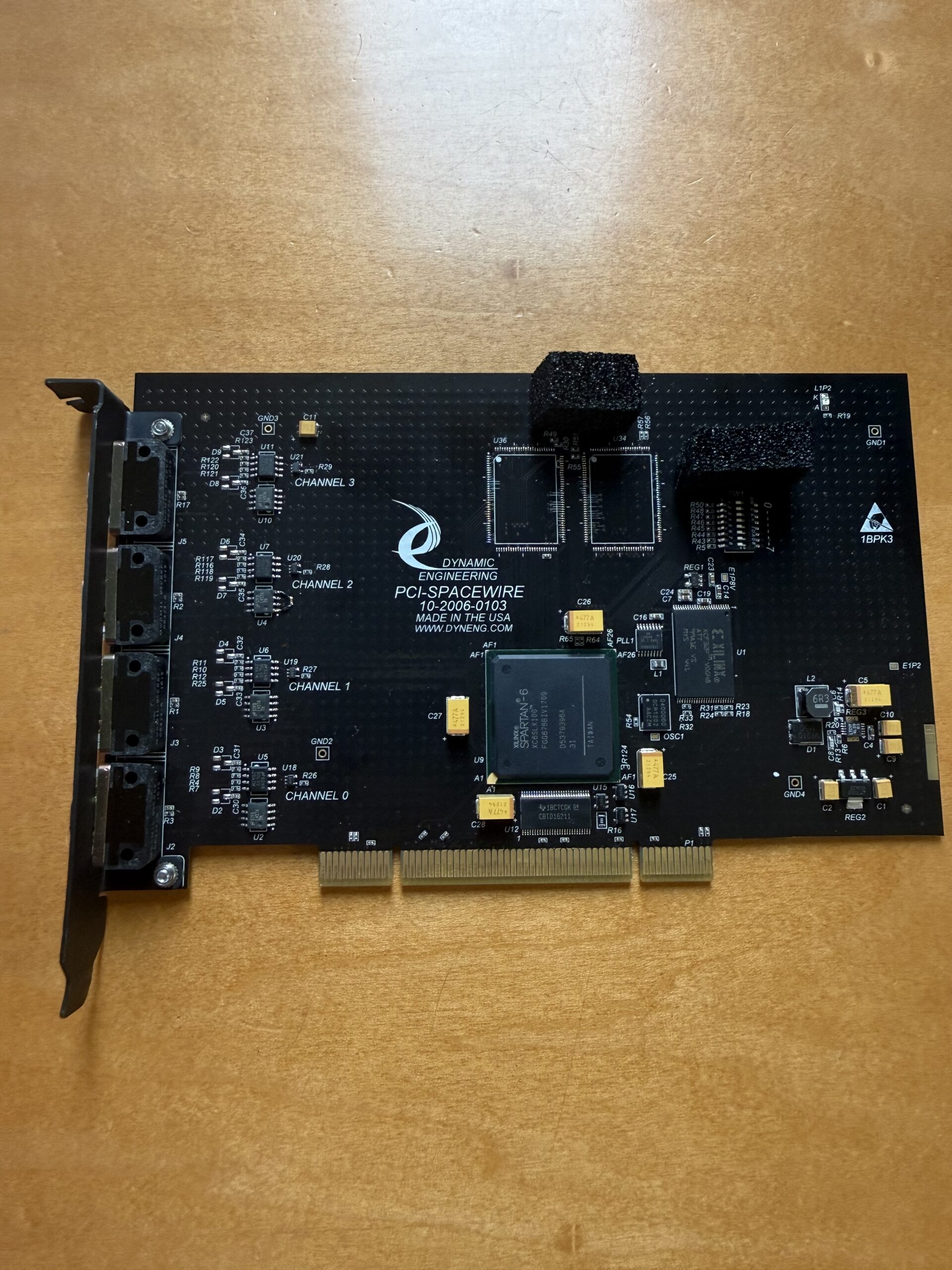

Dynamic Engineering PCI-SpaceWire-BK – 4-Channel SpaceWire Controller Card for PCI Bus
This used Dynamic Engineering PCI-SpaceWire-BK is a specialized controller card designed to interface a standard PCI bus with up to four independent SpaceWire channels. SpaceWire is a high-speed serial data link standard (ECSS-E-50-12C) used extensively in the aerospace and defense industries for onboard satellite and spacecraft communications .
The card features a Xilinx FPGA that handles the PCI interface, FIFOs, and the SpaceWire protocol logic. Each of the four ports has its own dedicated DMA engines and internal FIFOs to support high-speed, low-latency data transfers . It is designed to meet the rigorous demands of industrial and space applications with industrial temperature-rated components .
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Dynamic Engineering |
| Model | PCI-SpaceWire-BK |
| Type | SpaceWire Controller / Interface Card |
| Host Bus | PCI (33 MHz, 32-bit) |
| Number of Ports | 4 independent SpaceWire channels |
| Link Rate | Up to 200 MHz (166 MHz for -40°C to +85°C operation) |
| Connector Type | 9-pin MDM connectors for channels 0-3 |
| Onboard Memory | 16K x 32-bit FIFOs for Rx and Tx data per channel |
| Data Transfer | Scatter-gather DMA engines for each channel |
| FPGA | Xilinx FPGA controlling logic, PCI core, and protocol |
| PLL | Cypress CY22393 for clock generation |
| PCI ID | Vendor ID: 0xDCBA, Device ID: 0x0055 |
| Dimensions | Standard PCI card form factor |
| Temperature Range | Industrial temperature components (-40°C to +85°C) |
| Status | Active – Design supported with updates |
Key Features
Four Independent High-Speed Ports:
The card provides four full-duplex SpaceWire ports, each with its own dedicated DMA channel and FIFOs. Each port can operate at independent, user-programmable bit rates up to 200 MHz .
Efficient DMA Engines:
The onboard scatter-gather DMA significantly reduces host CPU overhead. The DMA controllers can access the PCI bus directly to read and write data to and from system memory using a chained descriptor list .
Advanced Protocol Handling:
The hardware handles critical aspects of the SpaceWire protocol, including link initialization, error checking (parity, disconnect, escape), flow control (token-based), and time-code distribution .
Flexible Clock Generation:
The onboard PLL (Programmable Phase-Locked Loop) can be programmed via software to generate a wide range of reference clocks for each port, providing flexibility for various mission requirements. The PLL configuration can be generated using a utility from Cypress (CyberClocks) .
Robust Software Support:
Dynamic Engineering provides comprehensive software support. This includes drivers for Windows 10/11 and Linux, as well as a “UserAp” reference application that demonstrates the card’s features (loopback tests, BIT, PLL programming, etc.). The software package is included with the purchase of SpaceWire-BK models .
Proven in Aerospace:
The card is designed and manufactured in the USA by Dynamic Engineering, which holds AS9100 and ISO9001 certifications, indicating its suitability for mission-critical aerospace and defense applications .
Applications
-
Satellite Onboard Communication: Primary interface for payload data handling and telemetry.
-
Spacecraft Instrumentation: Connecting scientific instruments, mass memory units, and processors.
-
Launch Vehicle Telemetry: High-speed data links for rocket telemetry systems.
-
Avionics Backplanes: Replacing legacy, slower data buses with high-speed serial links.
-
High-Reliability Ground Systems: Ground support equipment for testing satellite communication systems.
-
Defense & Aerospace R&D: Developing and testing next-generation avionics and sensor systems.
Condition
SOLD AS IS
USED – SHOWS NORMAL HANDLING
FUNCTIONALITY NOT TESTED
NO SOFTWARE OR DOCUMENTATION INCLUDED (unless specified; software available from manufacturer with proof of purchase )
PICTURE MAY NOT MATCH PRODUCT
