Agilent E4402B Spectrum Analyzer 9Khz-3Ghz for PARTS/REPAIR
Original price was: $2,000.00.$1,800.00Current price is: $1,800.00.

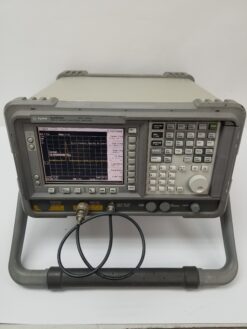

Agilent E4402B Spectrum Analyzer 9Khz-3Ghz for PARTS/REPAIR. Unit powers on. Completes self test. Unit displays own calibration signal but it is out of alignment as shown in gallery image. No further testing performed. No covers, manuals, software, cables or other accessories. Unit is offered “as is, final sale” and is available for in person inspection by appointment at our warehouse.
1 in stock
CompareAgilent E4402B ESA-E Series Spectrum Analyzer (9 kHz – 3.0 GHz)
The Agilent E4402B is a high-performance ESA-E Series Spectrum Analyzer, designed for RF and microwave signal analysis in R&D, manufacturing, and field service applications. With a frequency range of 9 kHz to 3.0 GHz, this versatile analyzer provides accurate signal characterization, noise analysis, and spectrum monitoring.
Key Features:
- Frequency Range: 9 kHz to 3.0 GHz
- Resolution Bandwidth (RBW): 1 Hz to 5 MHz
- Phase Noise: -103 dBc/Hz at 10 kHz offset (typical)
- Displayed Average Noise Level (DANL): -145 dBm (typical, preamp on)
- Sweep Time: Adjustable from 50 µs to 4000 s
- Dynamic Range: High sensitivity for low-level signal detection
- Input Connector: Type N (50Ω)
- Built-in Measurements: Adjacent Channel Power (ACP), Occupied Bandwidth (OBW), Harmonic Distortion, and more
- User Interface: Large LCD display with soft keys and intuitive navigation
- Connectivity: GPIB, RS-232, and optional LAN for remote control and automation
Applications:
- RF and Microwave Signal Analysis
- Wireless Communications Testing
- EMI/EMC Pre-Compliance Testing
- Broadcast and Audio Spectrum Monitoring
- Component and Circuit Characterization
The Agilent E4402B offers a balance of performance, accuracy, and ease of use, making it an excellent choice for engineers and technicians working in RF design, manufacturing, and troubleshooting.
Offered as PARTS/REPAIR.
| Weight | 41 lbs |
|---|---|
| Dimensions | 20 × 20 × 12 in |
