Glenair 289-016-D Jackpost Kit

📦 Key Specs & Features

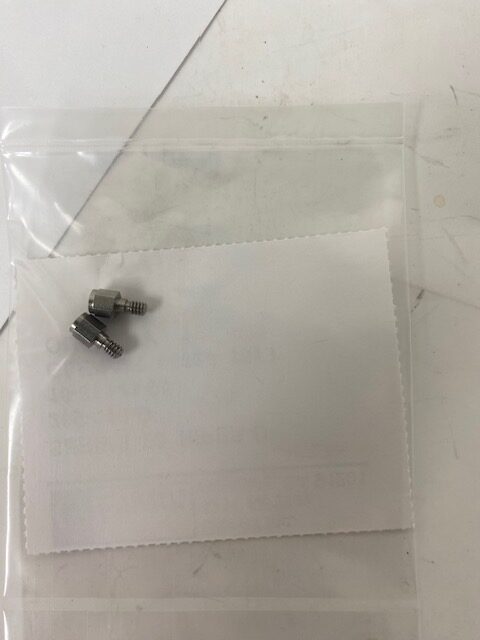

• Kit Contents: Includes two stainless-steel jackposts (300‑series, passivated)

• Intended Use: For rear panel mounting of low-profile HiPer‑D® PCB connectors with #4‑40 UNC threaded holes

• Panel Thickness Compatibility:

  • The “‑D” variant is suitable for panels 0.062″ (1.57 mm) to 0.125″ (3.18 mm)

• Dimensions:

  • Post length (“A”) is circa 0.168″ (4.27 mm)

• Installation Notes:

  • Install into connector flange using thread‑locking compound (not included)

  • Torque spec for #4‑40 threads: 5.0–6.0 in‑lb
