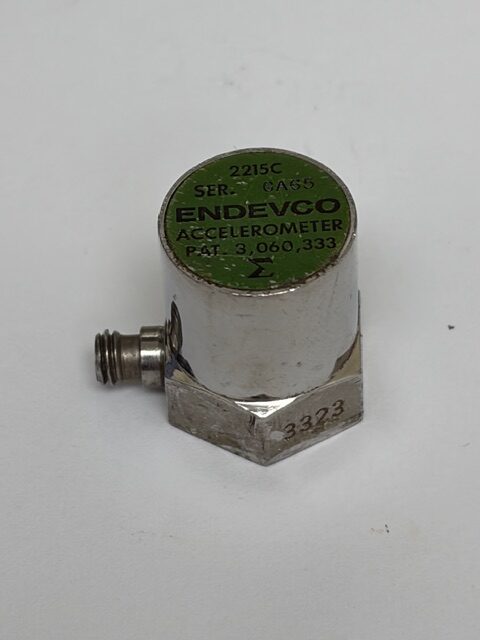

The Endevco 2215C is a high-sensitivity piezoelectric accelerometer designed for precise vibration and shock measurement in laboratory and industrial testing environments. It belongs to Endevco’s 2215 series, known for excellent signal stability and low noise performance.
Key Features
- Technology: Piezoelectric (charge output)
- High sensitivity: ~166–177 pC/g (series typical)
- Wide dynamic range with low noise
- Single-axis measurement
- Excellent stability over time and temperature
- Low transverse sensitivity: ~0.6–2% max
- Rugged construction for demanding test environments
Typical Specifications (2215 Series)
- Output: Charge (requires charge amplifier)
- Capacitance: ~10,700 pF
- Mounting: Stud mount (commonly 10-32)
- Connector: Coaxial (top or side depending on variant)
- Frequency response: Broad bandwidth for vibration analysis
Applications
- Structural vibration testing
- Modal analysis
- Aerospace and automotive testing
- Shock and impact measurement
- Laboratory R&D environments
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 3 × 2 in |
