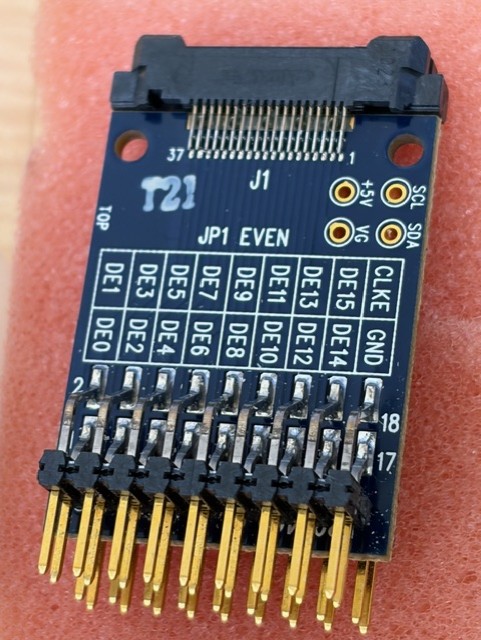

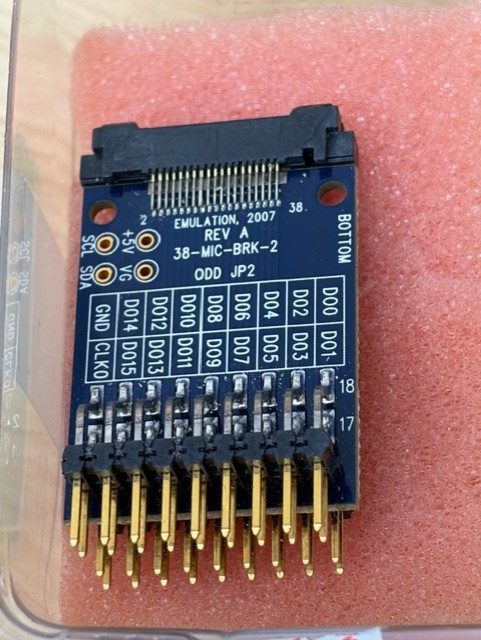

The Emulation Technology MIC-38-BREAKOUT is a high-performance 38-pin MICTOR breakout adapter designed for use with logic analyzers and oscilloscopes in advanced electronic testing environments. This adapter converts a standard MICTOR interface into accessible connection points, enabling engineers to probe, debug, and analyze high-speed digital signals with ease.
Built for reliability and signal integrity, the MIC-38-BREAKOUT is ideal for testing surface-mount and BGA devices where direct probing is difficult. It provides a convenient bridge between modern MICTOR-based systems and traditional test setups, making it a valuable tool in R&D labs, manufacturing, and diagnostics.
Key Features
- 38-pin MICTOR male breakout adapter
- Converts MICTOR signals to accessible headers/test points
- Designed for high-speed digital signal testing
- Compatible with logic analyzers and oscilloscopes
- Ideal for SMT and BGA device debugging
- Polarized connector for proper alignment
- Reliable signal transmission (50-ohm system compatibility typical)
Specifications
- Part Number: MIC-38-BREAKOUT
- Connector Type: MICTOR Breakout Adapter
- Pin Count: 38
- Gender: Male
- Orientation: Straight
- Pitch: 2.54 mm
- Application: Logic analyzer / scope interface
Typical Applications
- Digital signal debugging and validation
- PCB prototyping and test access
- Logic analyzer connections
- Oscilloscope probing for high-speed circuits
- Engineering development and failure analysis
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 3 × 2 in |
