Amplifier Research 75A250A RF Amplifier 10KHz-250MHz 75 Watts

Product Overview

The Amplifier Research 75A250A is a high-performance RF amplifier designed for applications in RF testing, scientific research, and electromagnetic compatibility (EMC) testing. This amplifier delivers 75W continuous power output across a wide frequency range from 10 kHz to 250 MHz. It is perfect for use in labs, military systems development, and other environments where reliable, precise amplification is needed.

Engineered for stability, the 75A250A offers consistent, linear performance. Whether you’re working with communication systems, testing components, or conducting research, this amplifier is built to meet your needs.

Key Specifications

• Frequency Range: 10 kHz to 250 MHz
• Power Output: 75W continuous wave (CW)
• Gain: 45 dB (typical), ensuring stable amplification.
• Input/Output Connectors: Standard N-type connectors for easy integration.
• Impedance: 50 ohms, compatible with most RF systems.
• Cooling: Built-in fan cooling for optimal thermal performance.

Key Features

• Broad Frequency Range: The 75A250A covers a wide frequency range, making it ideal for both low-frequency and high-frequency applications. This flexibility is essential for diverse testing needs.
• Stable Power Output: It provides a continuous 75W of power, ensuring consistent performance throughout your testing process.
• High Gain for Low Distortion: With a typical gain of 45 dB, this amplifier maintains signal integrity with minimal distortion. This makes it perfect for applications requiring precision.
• Easy Integration: The N-type connectors and 50-ohm impedance make it simple to integrate the 75A250A into existing setups without the need for complex adjustments.
• Efficient Cooling System: The amplifier is equipped with a cooling fan to maintain stable performance during prolonged operation.

Why Choose the Amplifier Research 75A250A?

The 75A250A is a reliable choice for engineers, scientists, and researchers who need precision amplification for RF testing. Its 75W CW power output and wide frequency range make it a versatile tool for a variety of applications, from communication system testing to scientific research.

Conclusion

The Amplifier Research 75A250A RF amplifier delivers high performance and reliability. It is an essential tool for accurate and repeatable results in laboratory testing, research, and development environments.



BMI NOTES

AMPLIFIER RESEARCH 75A250A. Very good condition. No manuals, cables or other accessories. Checked O.K. before storage. Purchaser responsible for: Proper, legal use by authorized personnel. Any calibration, certification or maintenance if required.

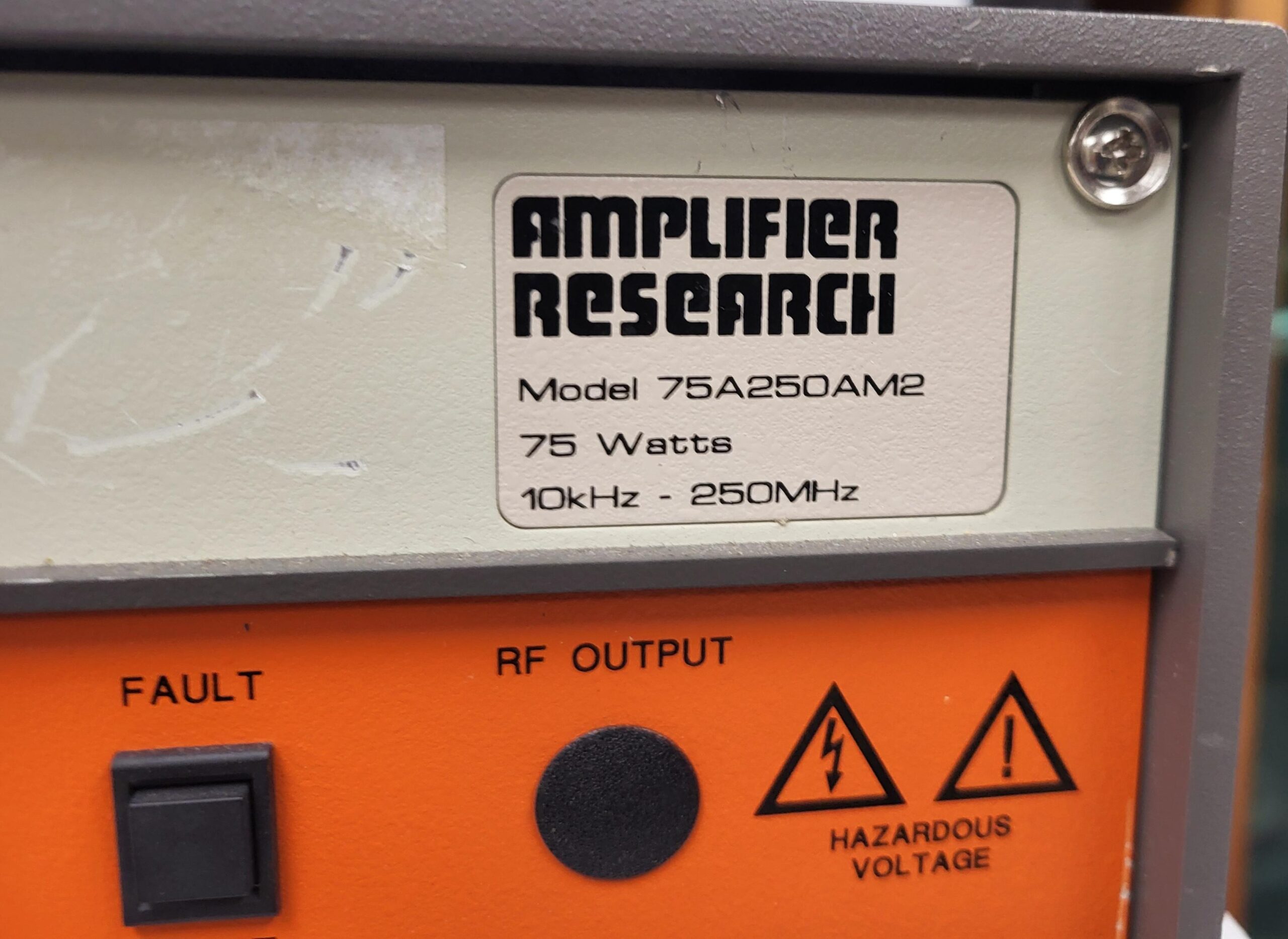

Broadband RF Power Amplifier

75 watts CW10 kHz-250

***75719***

07011
