Coherent PM-USB LM-10 laser power sensor

Coherent PM-USB with LM-10 Thermopile Power Sensor – Laser Power Meter Kit

This bundle includes the Coherent PM-USB interface module paired with the LM-10 thermopile sensor, offering a complete and portable laser power measurement solution. The PM-USB connects directly to a computer via USB for digital readout and data logging, while the LM-10 provides accurate power readings across a wide range of wavelengths.

Key Features:

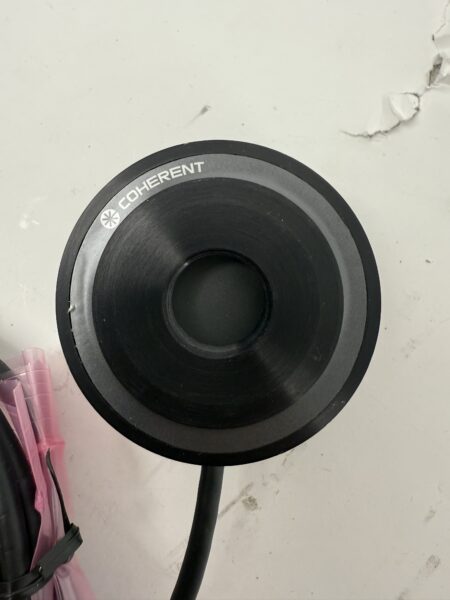

• Sensor Model: LM-10 Thermopile Head

• Interface: PM-USB (Plug-and-play USB module for PC connection)

• Power Range: Typically up to 10W continuous (sensor dependent)

• Wavelength Sensitivity: 190 nm to 11 µm

• Cooling Type: Passive convection (no fan required)

• Connector Type: DB15 on LM-10, USB-A on PM-USB

• Software Compatible: Works with Coherent LabMax-PC or other supported software

• Condition: Tested, working pull from a laser diagnostics lab

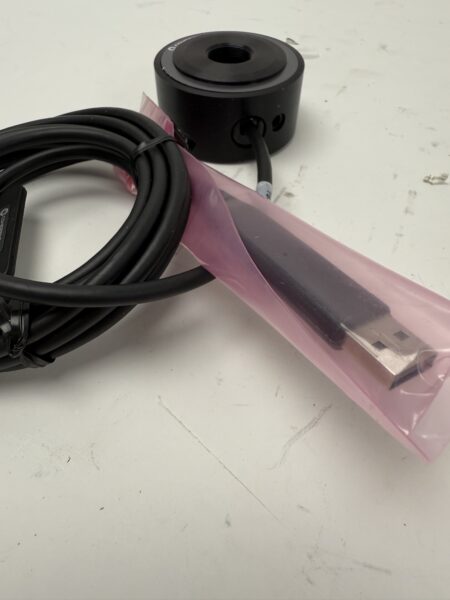

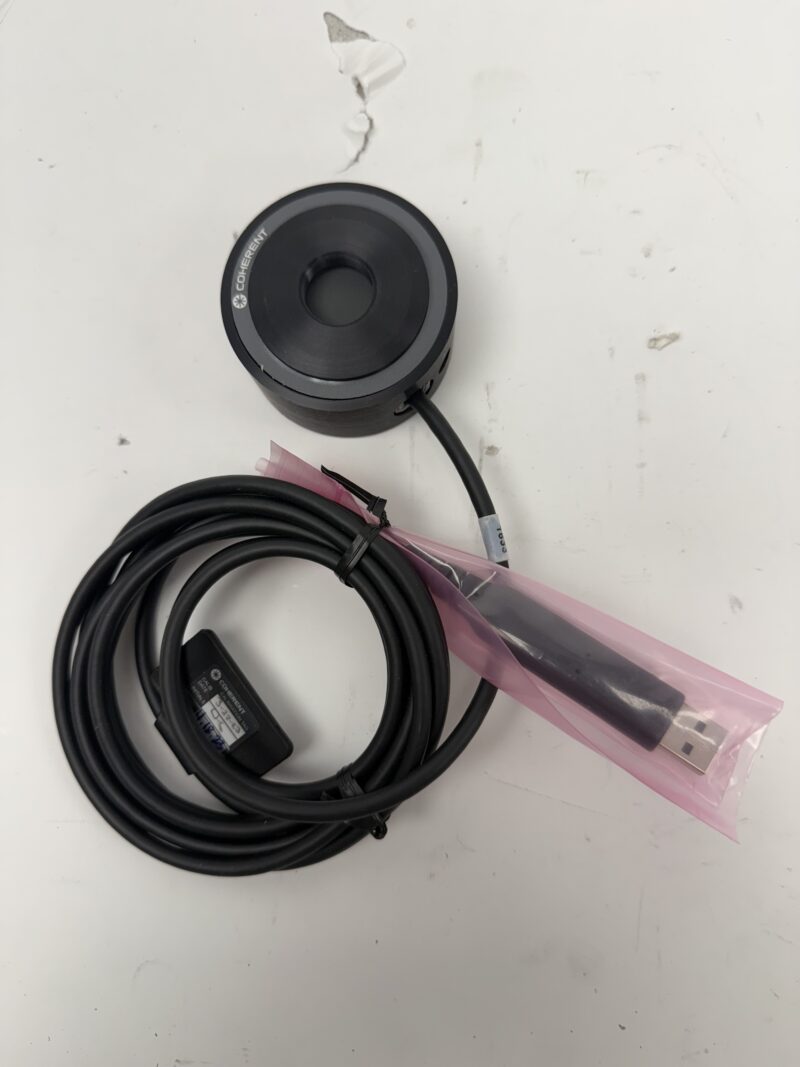

• Includes: PM-USB unit, LM-10 sensor head, and interconnect cable

Common Applications:

• Laser R&D and diagnostics

• Photonics and optical testing labs

• Field service for laser systems

• Academic and industrial measurement setups
