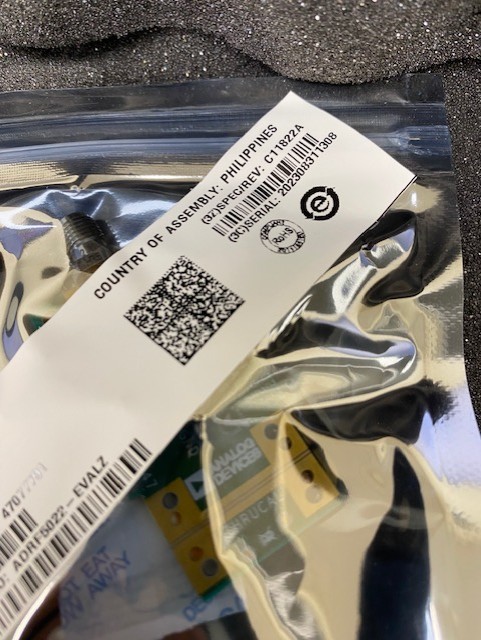

The ADRF5022-EVALZ is a full-featured evaluation board designed for the ADRF5022, which is a nonreflective single-pole, double-throw (SPDT) RF switch operating over an ultra-wide frequency range of 100 MHz to 45 GHz. It provides easy connectivity to test and measurement equipment and includes a thru-calibration line for de-embedded performance measurements.
Key Features:
-
Full-featured evaluation board for ADRF5022
-
Easy connection to test equipment (e.g., DC supplies, network analyzer)
-
Thru line for calibration to remove board-induced loss
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
